| 9
Zeus Touch overview | Zeus Touch installation manual

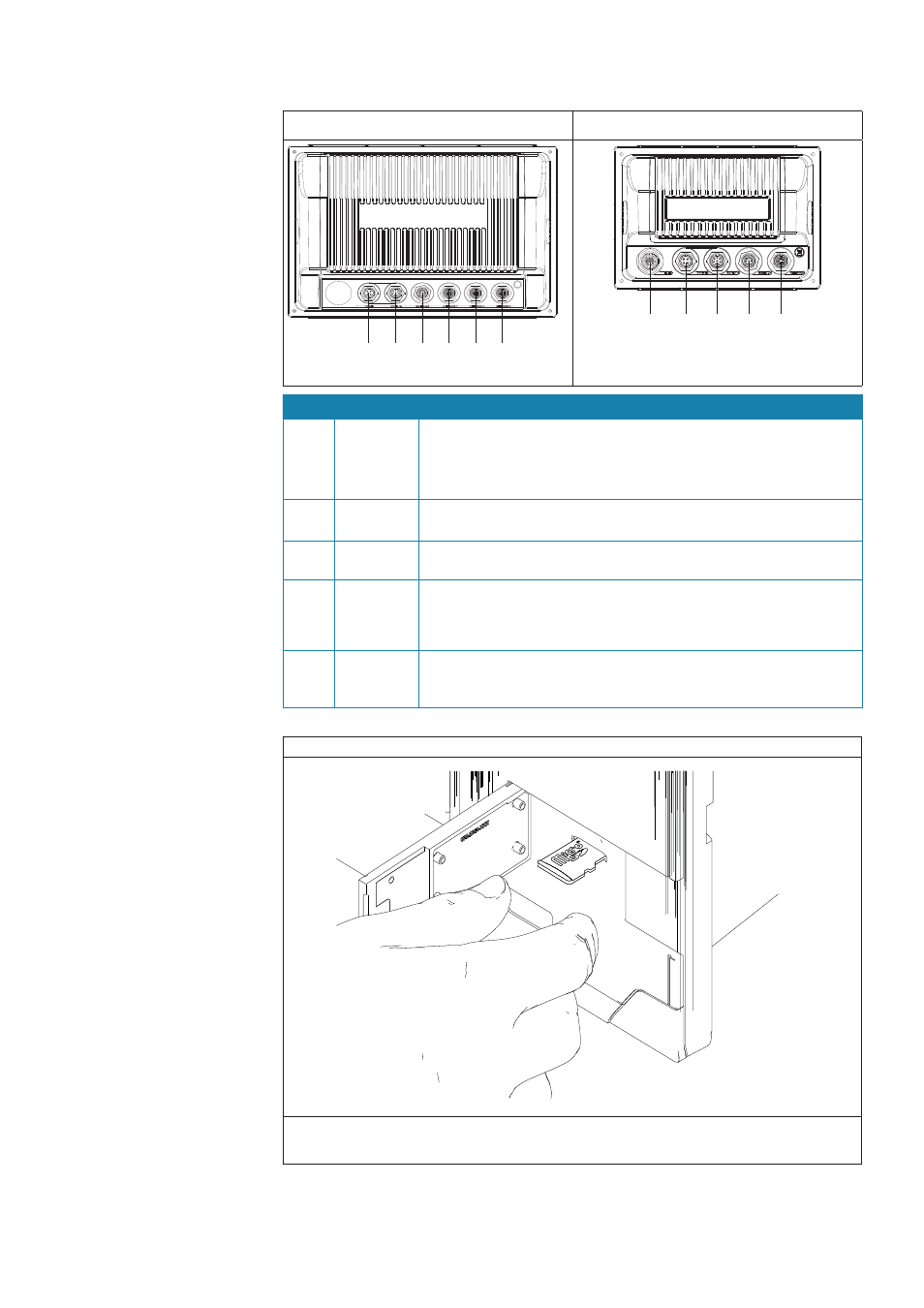

Rear - Connectors
Zeus Touch 12 Zeus Touch 7 & Zeus Touch 8
2 3 4 5 5 5
2 3 4 5 1
Key Function Description
1 ECHO
Built in Broadband Echosounder on the Zeus Touch 7 and Zeus Touch
8.
Zeus Touch 12 requires an optional echo sounder module connected
via ethernet
2 POWER
For 12 or 24 V DC input (page 18), power control (page 18) and
external alarm (page 20)
3
VIDEO IN/
NMEA 0183 Supplied cable provides two composite video inputs (page 30) and
one NMEA0 183 port - see NMEA0 183 Wiring (page 31)
4 NMEA 2000
Connects Zeus Touch display to a NMEA 2000 or SimNet network (see
‘“NMEA 2000” on page 33 page 33)
5 NETWORK
Three Ethernet network ports on the Zeus Touch 12 or one on the
Zeus Touch 7 and Zeus Touch 8 for connecting to other Zeus Touch
displays and Network modules. (page 38 )
The card reader door is opened by pulling outwards the right hand edge of the door.
The card reader door should always be shut immediately after inserting or removing a card,
in order to prevent possible water ingress.
