| 23
External GPS | Zeus Touch installation manual

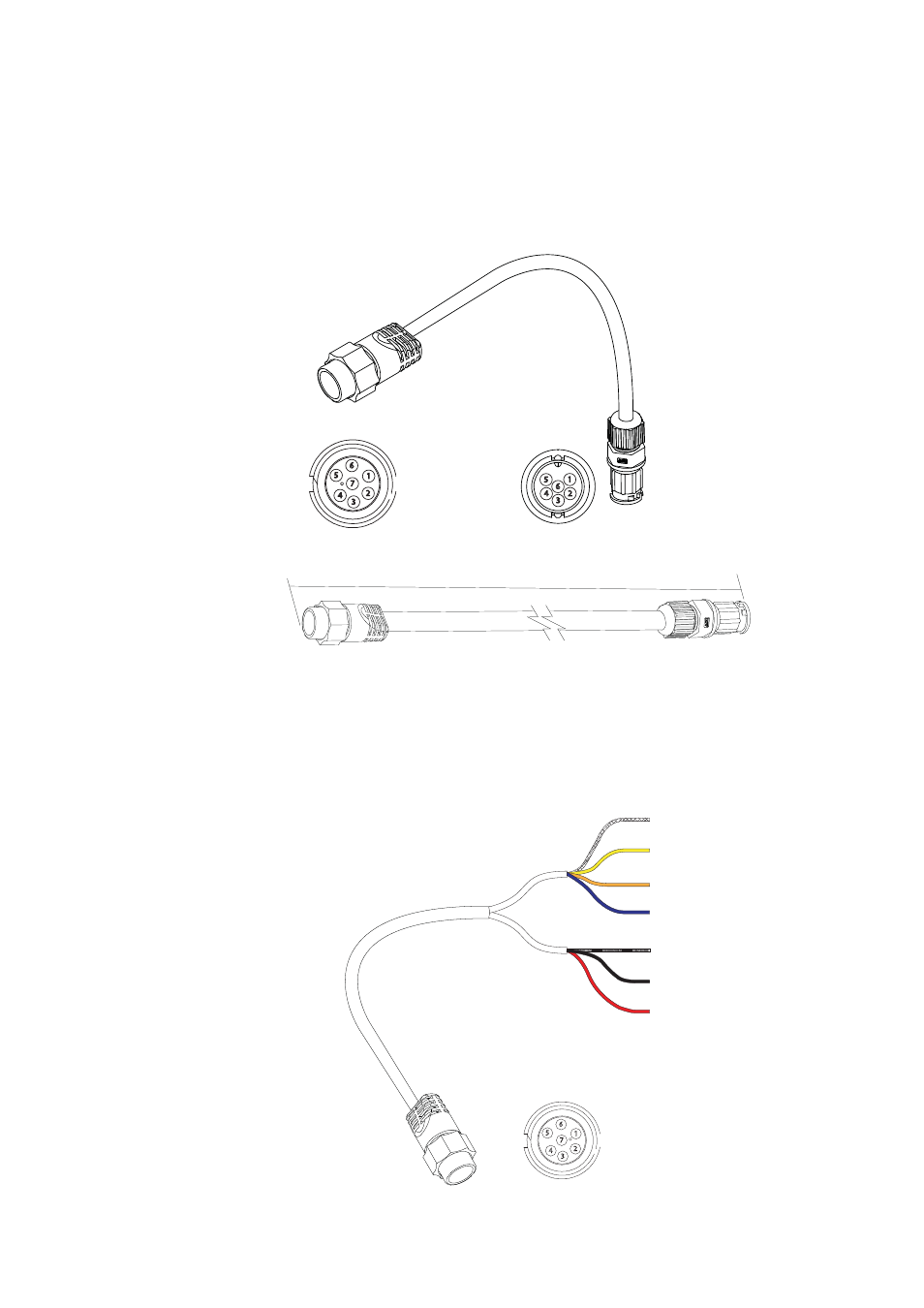

Transducer adapter cables
For vessels with existing transducers that do not have the Navico blue 7 pin connector, there
are two adapter cables available to assist with installation.
For vessels that already have a transducer that was used with older Navico products that has 6
pin connector. Use 000-00022-001 6 pin to 7 pin transducer adapter cable.
These transducers will require the 10 k temp version of the transducer selected for transducer
type in Echo Installation. See the Echosounder Setup section on page 69 for further informa-
tion.
3
2
1
6
7
5
4
Blue 7 pin connector
6 pin connector
Connector Pins
(Front View)
Connector Pins
(Front View)
5
4
3
2
1
6
0.7 m (28”)
For other transducers that do not have Navico blue 7 Pin or 6 pin (above) connector that
require the connector to be removed. Use 000-10046-001 7 pin to bare wire adapter cable.
Not all transducers are compatible with Zeus Touch or BSM-1. Refer to the transducer type
selection list in the Echo Installation page to see if your transducer is mentioned for the
selected echo source. If not contact your B&G dealer or B&G Technical Support for assistance
with transducer compatibility.
5
4
3
2
1
6
7
1. Red Depth +
Wire color
Function
Blue 7 pin connector
Connector Pin
Connector Pins
(Front View)
5. Black Depth -
6. Shield Depth Gnd.
2. Blue Speed signal
3. Orange Speed volts
4. Yellow Temp +
7. Shield Temp -
