22 | External GPS | Zeus Touch installation manual
Echosounder
Internal echosounder
The Zeus Touch 7 and Zeus Touch 8 have an Internal Broadband Echosounder. Navico trans-
ducers fi tted with the 7 pin blue connector can be plugged directly into the corresponding
blue socket adjacent to the power connector.
External echosounder

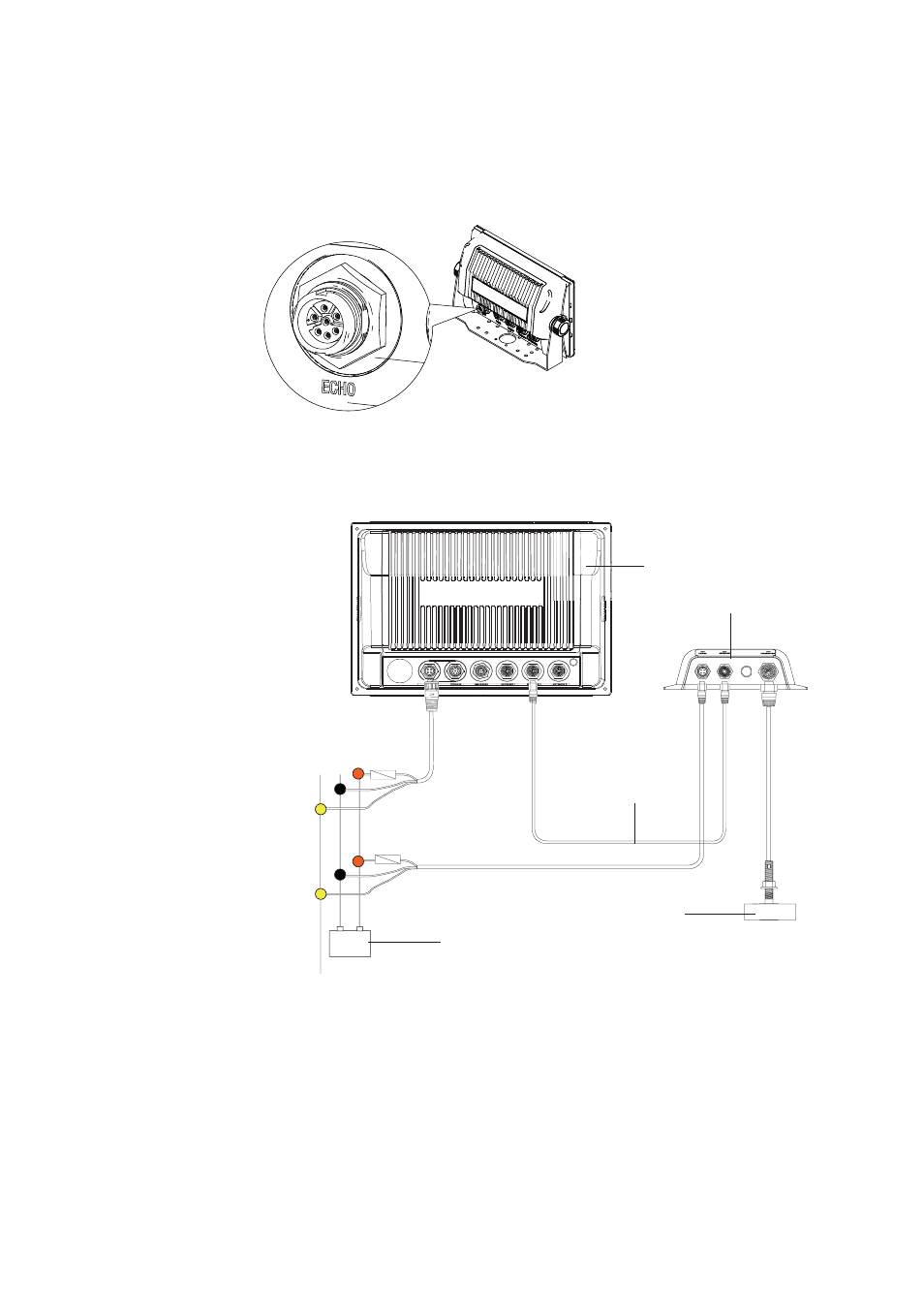

An optional external sounder module (BSM-1, LSS-1, BSM-2) can be added to the Zeus Touch
7, Zeus Touch 8 and Zeus Touch 12 via the ethernet port on any of these devices.
+_
1
3
4
5
2
1
1 Zeus Touch display
2 BSM-1 Broadband Echosounder module
3 Ethernet cable yellow 5 pin See page 58 for more cable length options. Cable can be con-
nected directly to Zeus Touch or via a Network Expansion Port
4 12 or 24 V DC
5 Transducer
