| 57
Accessories | Zeus Touch installation manual

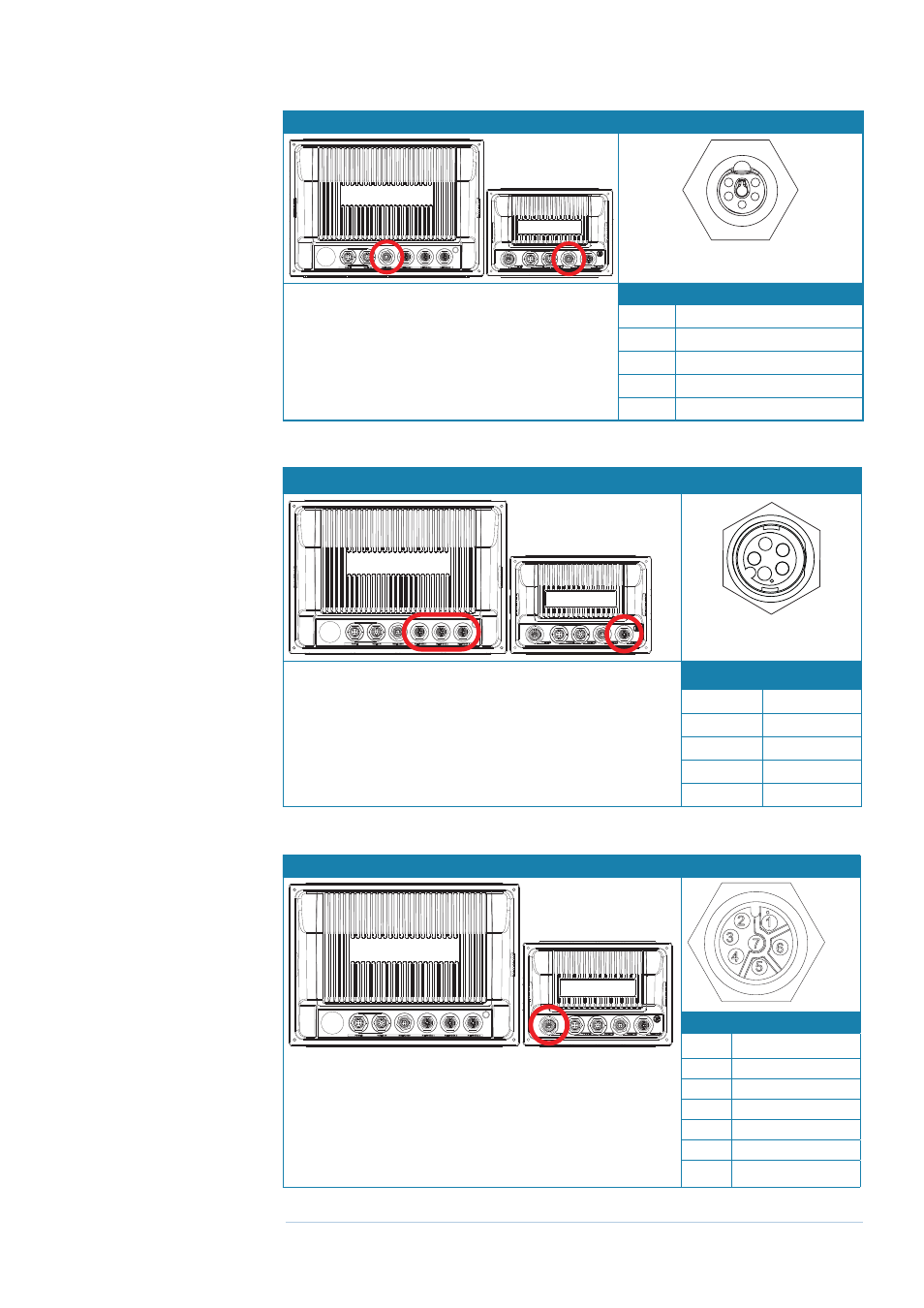

NMEA 2000
NMEA 2000 Connector
3
4
5
1 2
Pin Function
1 CAN_H
2 SimNet power (+) 12 V DC
3 SimNet power (-)
4 Shield
5 CAN_L
Network (Ethernet)
NETWORK (Ethernet) Connector
1
5
4 3
2
Pin Function
1 TX +
2 TX -
3 RX +
4 RX -
5 Gnd
Echosounder
Echosounder Connector
1 2
3
4
5
7
6
Pin Function
1 Depth +
2 Speed
3 Speed power
4 Temp
5 Depth -
6 Shield
7 Temp / speed Gnd
Accessories
17
