8 | Zeus Touch overview | Zeus Touch installation manual

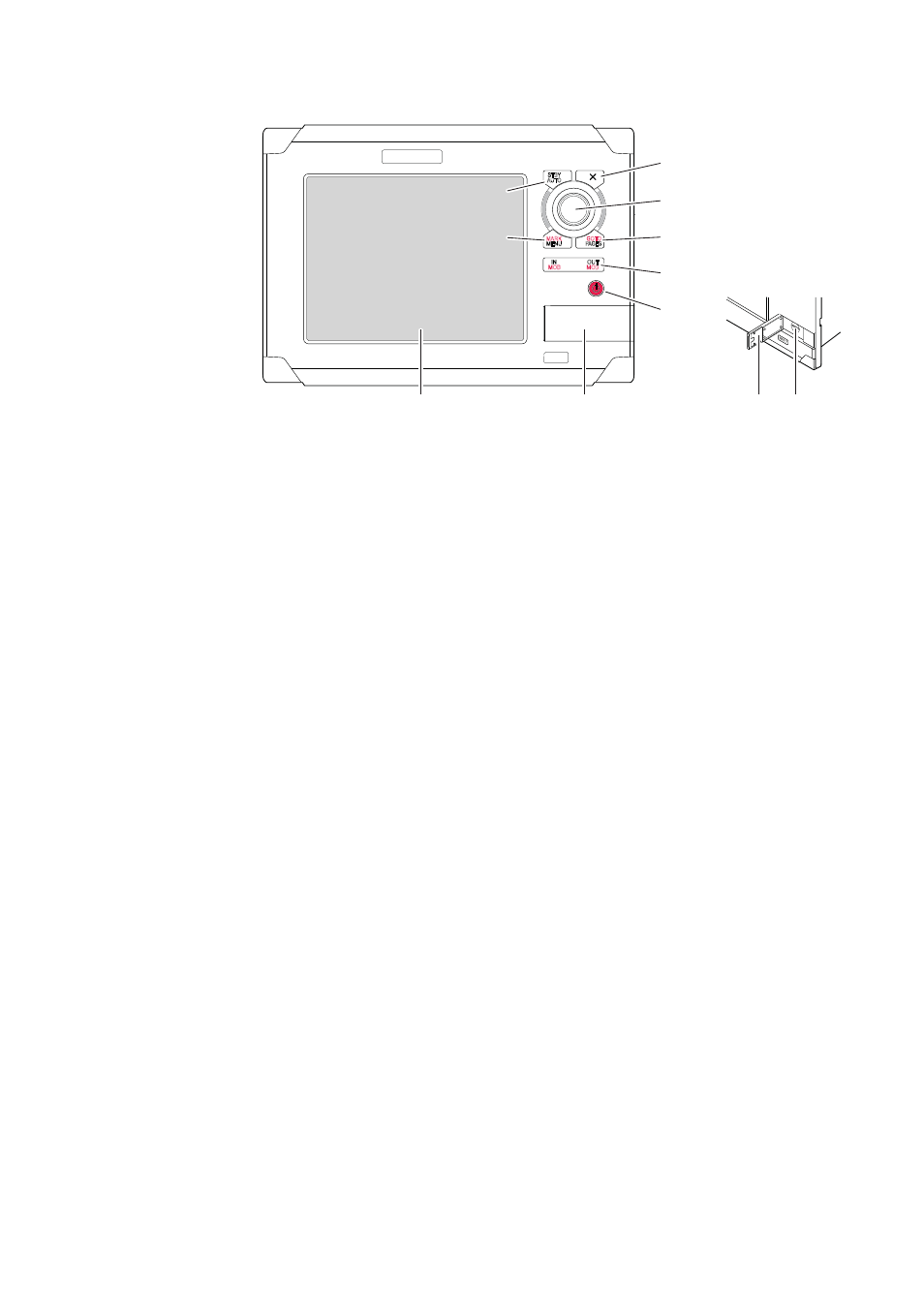

Front - Controls
MARK
MOB
GOTO
MENU PAGES
STBY
IN
MOB
OUT
AUTO
P U S H T O EN TER
1 2 2 3
4
5
6
7
8
9
10
1 Touchscreen
2 Card reader door
3 Micro-SD Card reader
Used for optional Navionics or InsightHD chart data, software updates, transfer of user data
and system backup.
4 STBY / AUTO key
Used for Autopilot operation.
5 MARK / MENU key
A short press displays the active panel’s menu. A long press places a waypoint at the vessel’s
position.
6 X key
Used to exit dialogs, to return to previous menu level and to remove the cursor from the
screen on chart, radar and echosounder panels.
7 Rotary knob
Used for zooming chart and for scrolling through menus. Press rotary knob to confi rm selec-
tion.
8 GOTO / PAGES key
A short press displays the Pages overview panel (Home page). Repeated short presses toggles
between Pages overview, Tools and Settings panels. A long press displays the Go To menu.
9 IN / OUT / MOB key Zoom key
for chart, radar and echosounder panels. A simultaneous press on both key ends will position
a Man Over Board (MOB) mark at vessel’s position.
10 Power key
A long press turns the unit ON/OFF. A short press brings up the light options dialog. Repeated
short presses toggles between preset brightness levels.
