| 27
RADAR | Zeus Touch installation manual

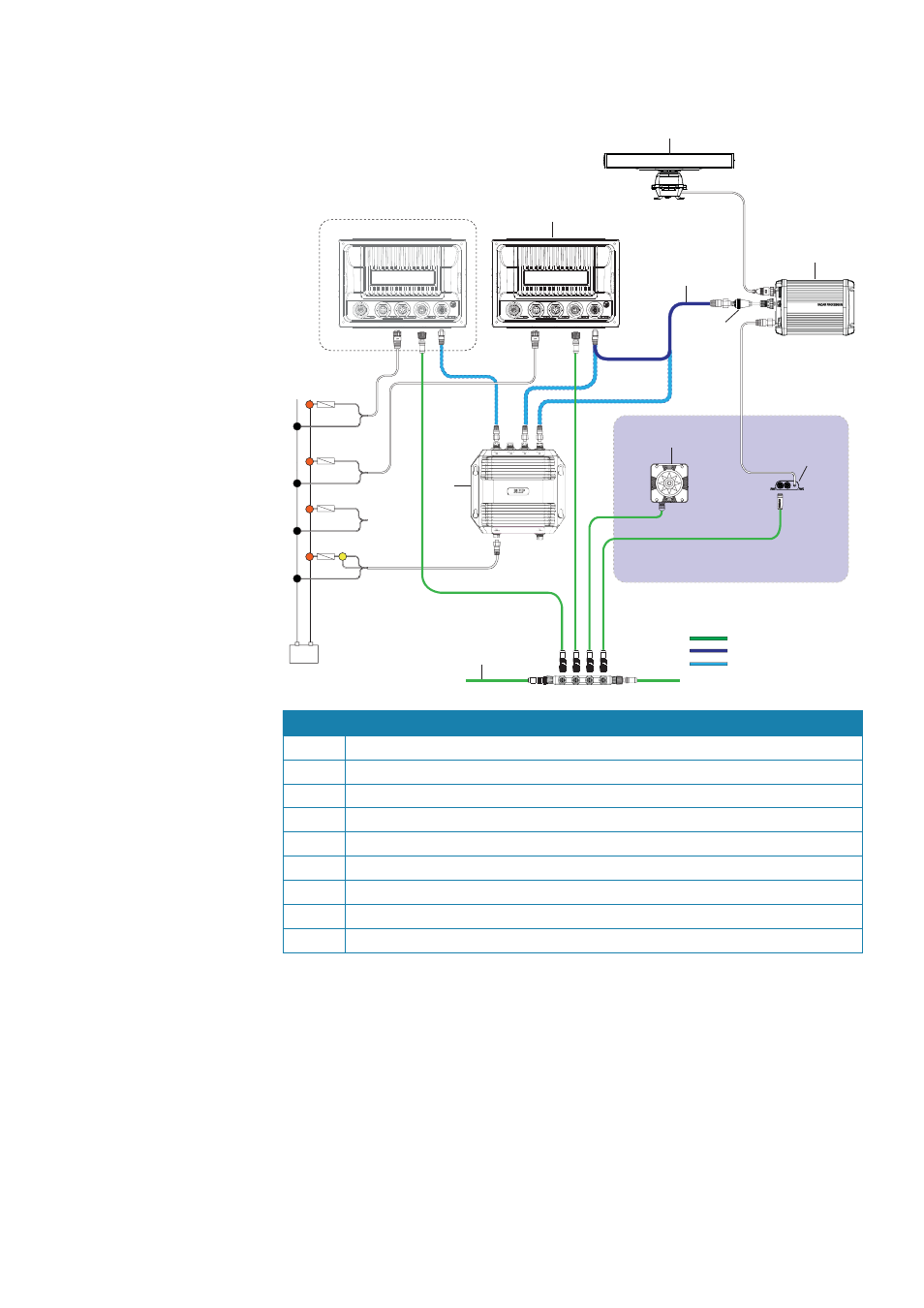

HD radar
+_
Magnetic heading source required
for Chart Overlay / MARPA
Micro-C cable
Ethernet cable
extra ethernet cables
F
Optional second Zeus Touch
FUSE
FUSE
FUSE
FUSE
1
2
3
6
4
5
7
8
9
Key Description
1 Zeus Touch display
2 HD radar scanner
3 HD radar processor module
4 Ethernet adaptor cable
5 Ethernet cable (Navico 5 pin type)
6 NEP-2 expansion port module (optional - used where extra ports are required)
7 RC42N heading sensor
8 AT10HD (provides heading data to radar processor for radar overlay and MARPA)
9 NMEA 2000 backbone
