| 41
Autopilot | Zeus Touch installation manual
Autopilot
The B&G Zeus Touch includes complete autopilot integration. When Zeus Touch is connected
to a compatible B&G Autopilot Computer (AC12N, AC42N, and SG05), you will have complete
control, setup and integration with your autopilot. The Zeus Touch display can be used in
conjunction with B&G Triton Autopilot Control units or the Zeus Touch can be used alone to
conserve dash space.

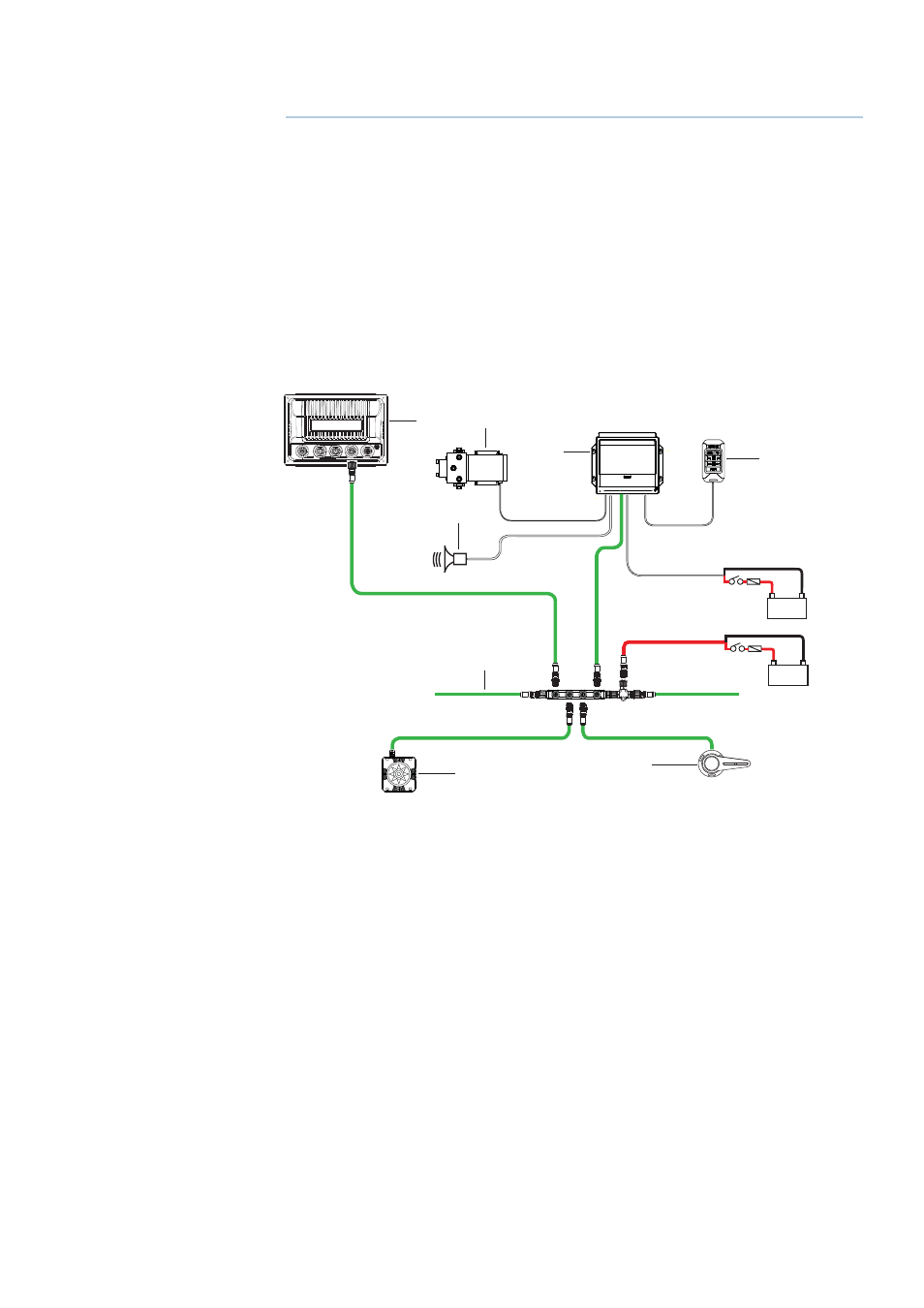

Wiring the autopilot system
Using the AC12N or AC42N autopilot computer
The AC12N/AC42N is connected to the Zeus Touch system using the NMEA 2000 network.
For more information about how to install and wire the autopilot, refer to the separate
AC12N/AC42N Installation manual.
5 Amp Fuse
12 V DC
- +
12-24 V DC
- +
1
2
3
8
6
5
4
7
9
1 Zeus Touch Display
2 Pump / Drive (RPU160, RPU300, DD15, HDL2000x)
3 AC12N or AC42N Autopilot computer
4 Triton Pilot Controller
5 DC Supply
6 NMEA 2000 Micro-C backbone with T-pieces
7 RC42N Rate Compass
8 RF25N Rudder Feedback
9 Alarm Buzzer (optional)
12
