56 | Connector Pinouts | Zeus Touch installation manual

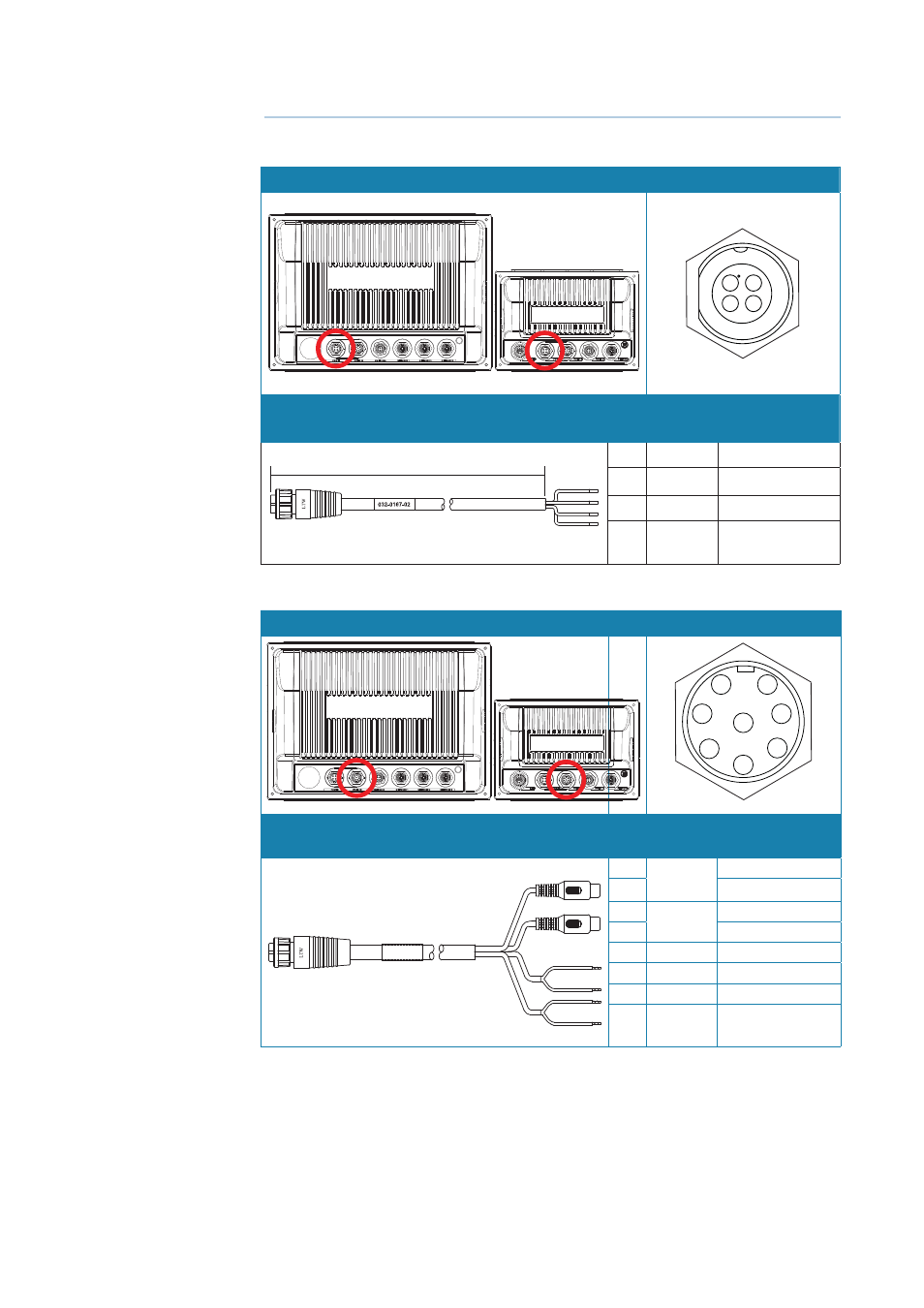

Connector Pinouts
Power
Power Connector
1 4
3 2
Power Cable: 000-00128-001 (included) Pin
Wire
Color
Function
2 m (6.5 ft)
1 Black Battery
2 Blue External Alarm
3 Yellow Power Control
4 Red
Battery (+)
12 - 24V DC
Video / Data
Video / Data Connector
1 7
6
5
4
3
2
8
Video Cable: 000-00129-001 Pin
Wire
Colour
Function
1 Red
(coax)
Video 1 Ground
2 Video 1 (+)
3 Green
(coax) Video 2 Ground
4 Video 2 (+)
5 Blue TX_B (RS232 GND)
6 Yellow TX_A
7 Orange RX_B (RS232 GND)
8 Green RX_A
