| 21
External GPS | Zeus Touch installation manual
External GPS
Mounting location
Depending on vessel design and materials, certain mounting locations chosen for the Zeus
Touch may not off er adequate GPS satellite signal reception using the internal receiver. An

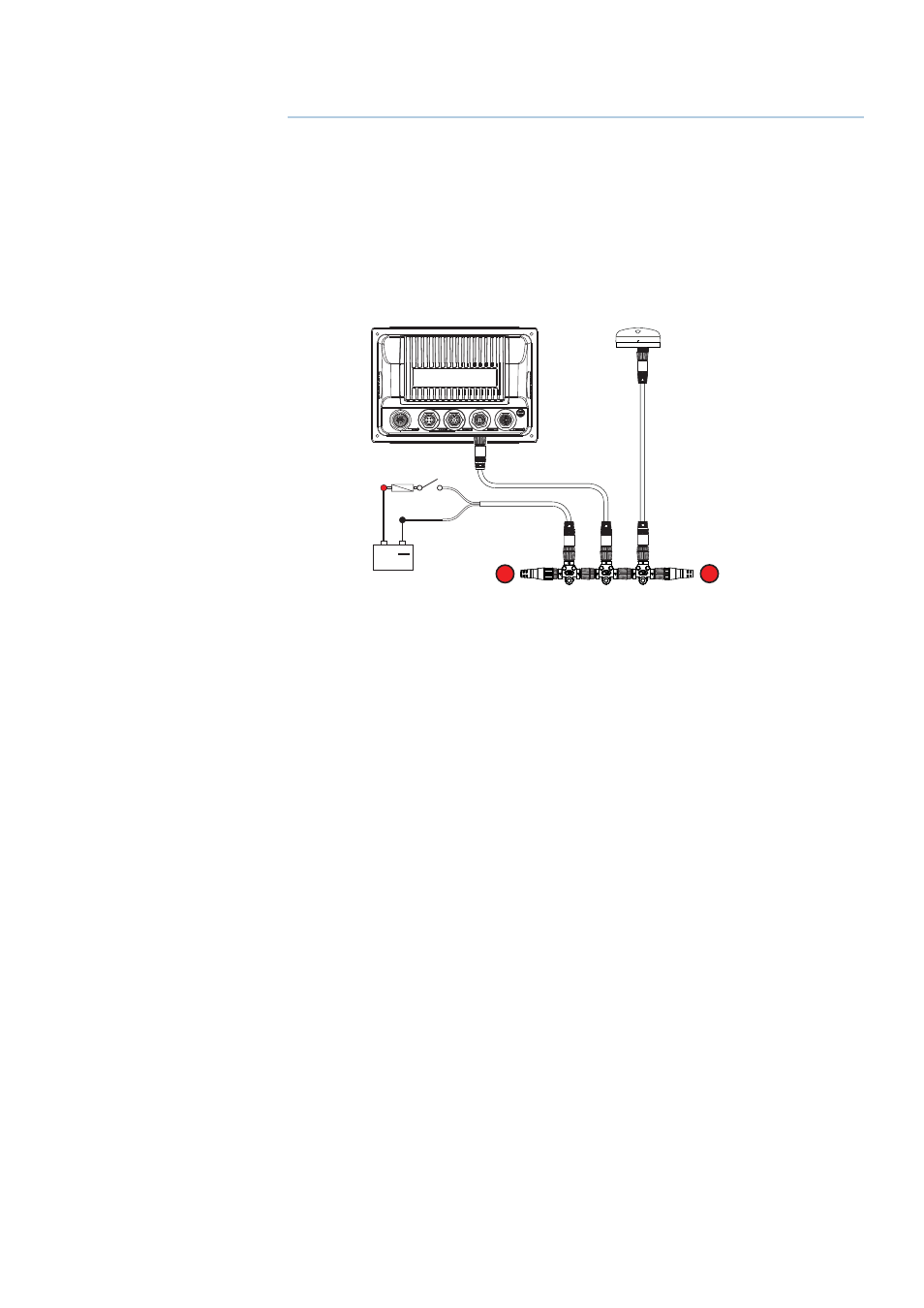

external GPS source such as the ZG05 can be used to overcome this, by allowing remote
installation in a location that has an unobscured view of the sky. An NMEA 2000 expansion kit
may be required to connect the GPS antenna to the Zeus Touch, if no other network cabling
is installed.
Refer to page 33 for further details on connecting to the network.
T T
12 - 24 V DC
+
_
For setting the external GPS as position source, refer to “NMEA 2000 setup” on page 36
5
