| 11
Zeus Touch overview | Zeus Touch installation manual
VIDEO IN
Optional
accessory
HD Radar
ECHOSOUNDER
BSM-1 or BSM-2
NEP-2
LSS-1
WEATHER
AUDIO
Structure Scan
Echo Sounder
iPod Dock
Sirius satelite weather
and radio (USA only)
LSS-1 Transducer
Optional 2nd transducer
for high deadrise hulls
2, 4, 6, 10 or 25 kW
Audio cable
POWER NET WORK
NETWORK NETWORK NETWORK NETWORK
T12 T12
ETHERNET
SWITCH
TRANSDUCER
BROADBAND RADAR
3G/4G
WM-2
Various inhull,
through hull, and
transom mount
options available
External GPS: ZG50
POWER: 12 V DC
Auto Pilot: Triton / AC12
Heading Sensor: RC42
Audio: SonicHub
Engines: NMEA2000
Digital Switching:
CZONE
Instruments: Triton
AIS: NAIS-400
NMEA2000

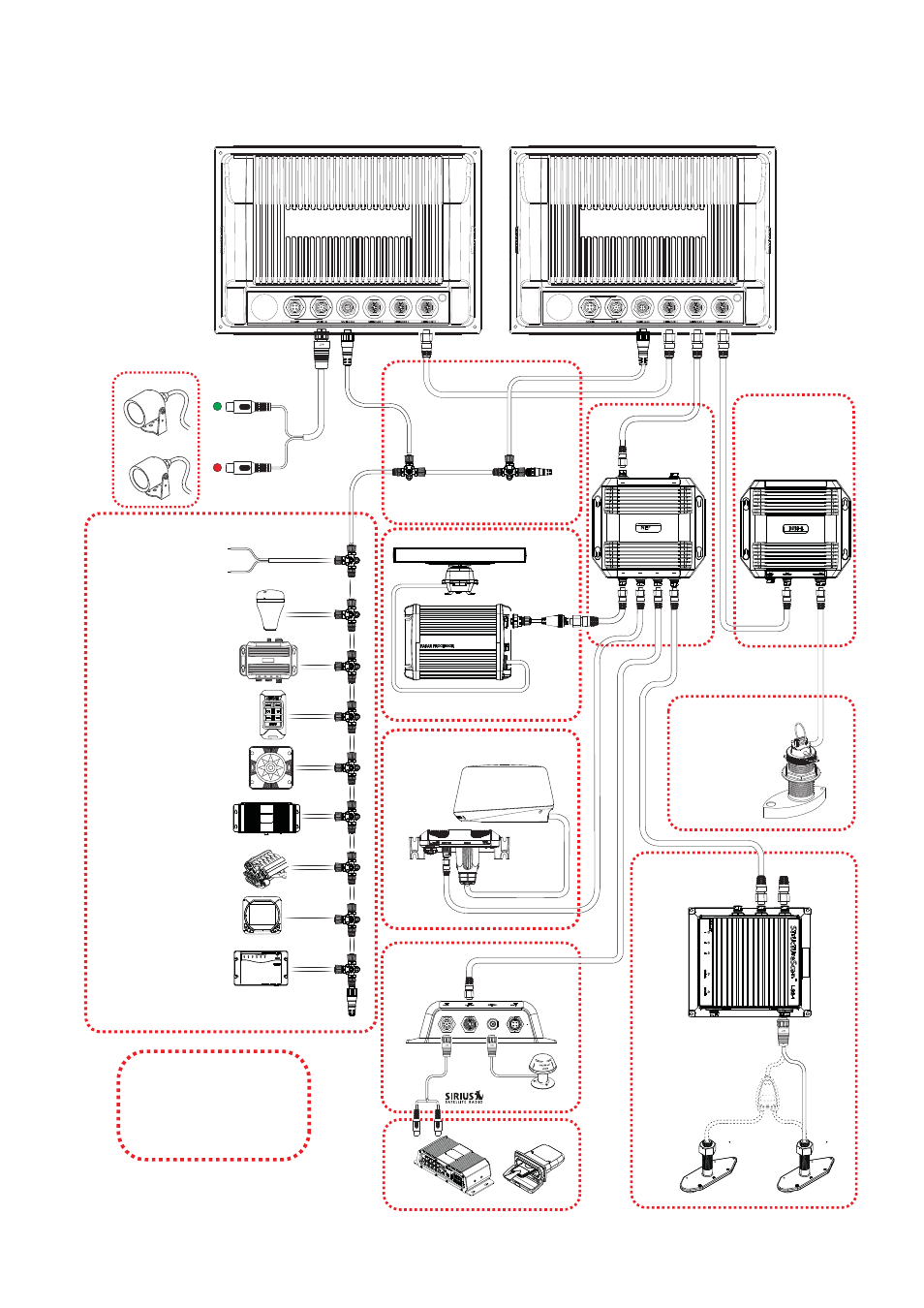

T12 potential system example
