16 | Mounting the Zeus Touch display | Zeus Touch installation manual
Bracket mounting with optional kit

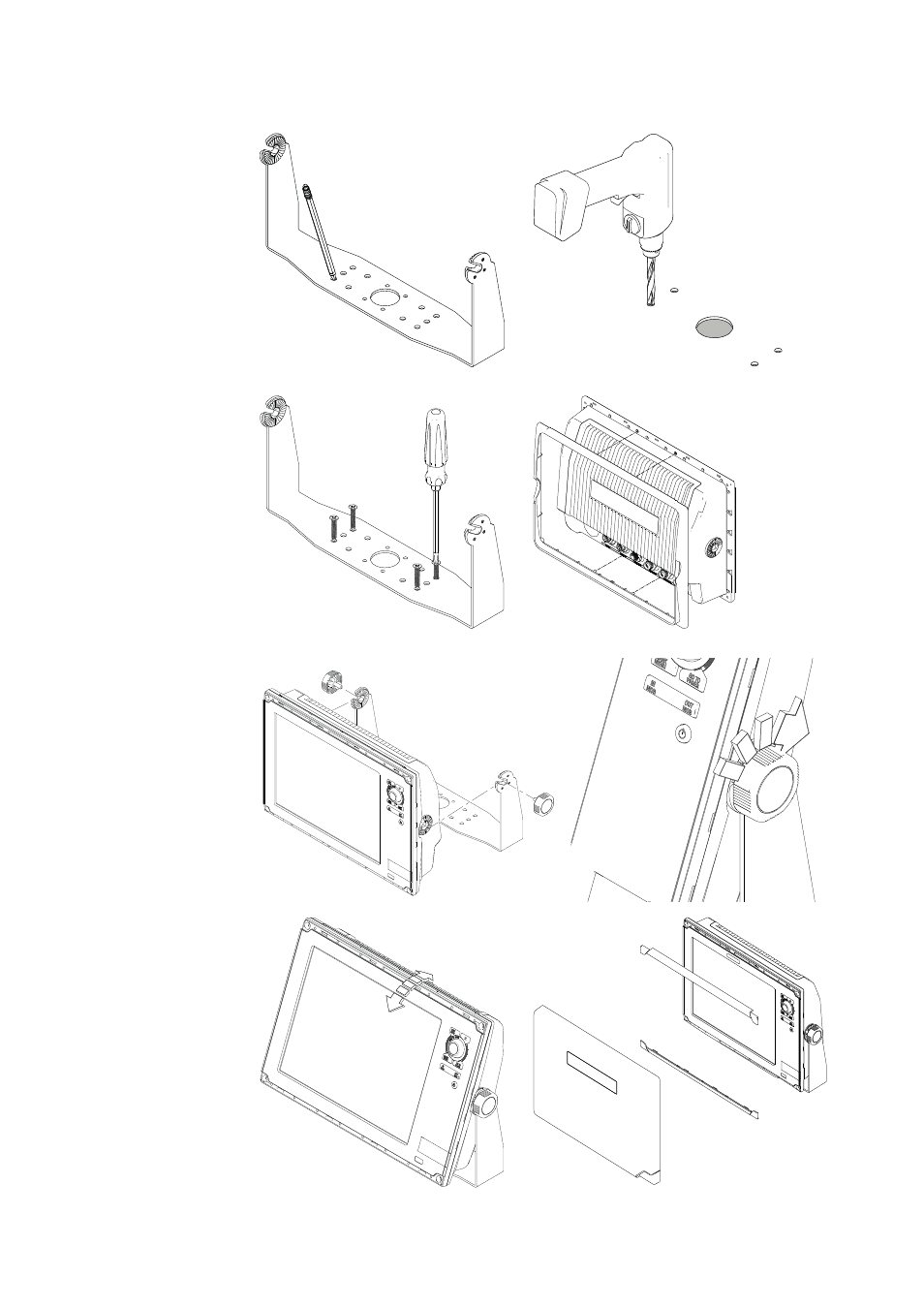

Drill cable and fastener pilot holes.
Using the bracket as a template,
mark places to drill the central cable
hole and four pilot holes for the
bracket fasteners.
screw bracket down with fasteners.
Fit rear bezel to Zeus Touch using
supplied machine screws.
Align the Zeus Touch ratchet teeth
with those of the bracket and
partially screw in the bracket knobs
one at a time.
Further tighten both knobs to
ensure the unit is held securely and
can’t tilt forward under it’s own
weight.
Stand back and check if the viewing
angle is correct. Loosen the knobs
slightly if adjustment is required,
then re-tighten.
To fi nish off the installation, clip the
upper and lower bezels in place.
