Auger support weldments – Great Plains ADC2220 Predelivery Manual User Manual
Page 25

3/3/2006
167-088Q-RUS
23
Cart Assembly
23066
23066
23449
Figure 43
Fan Hose with Clamps
Figure 42
Fan

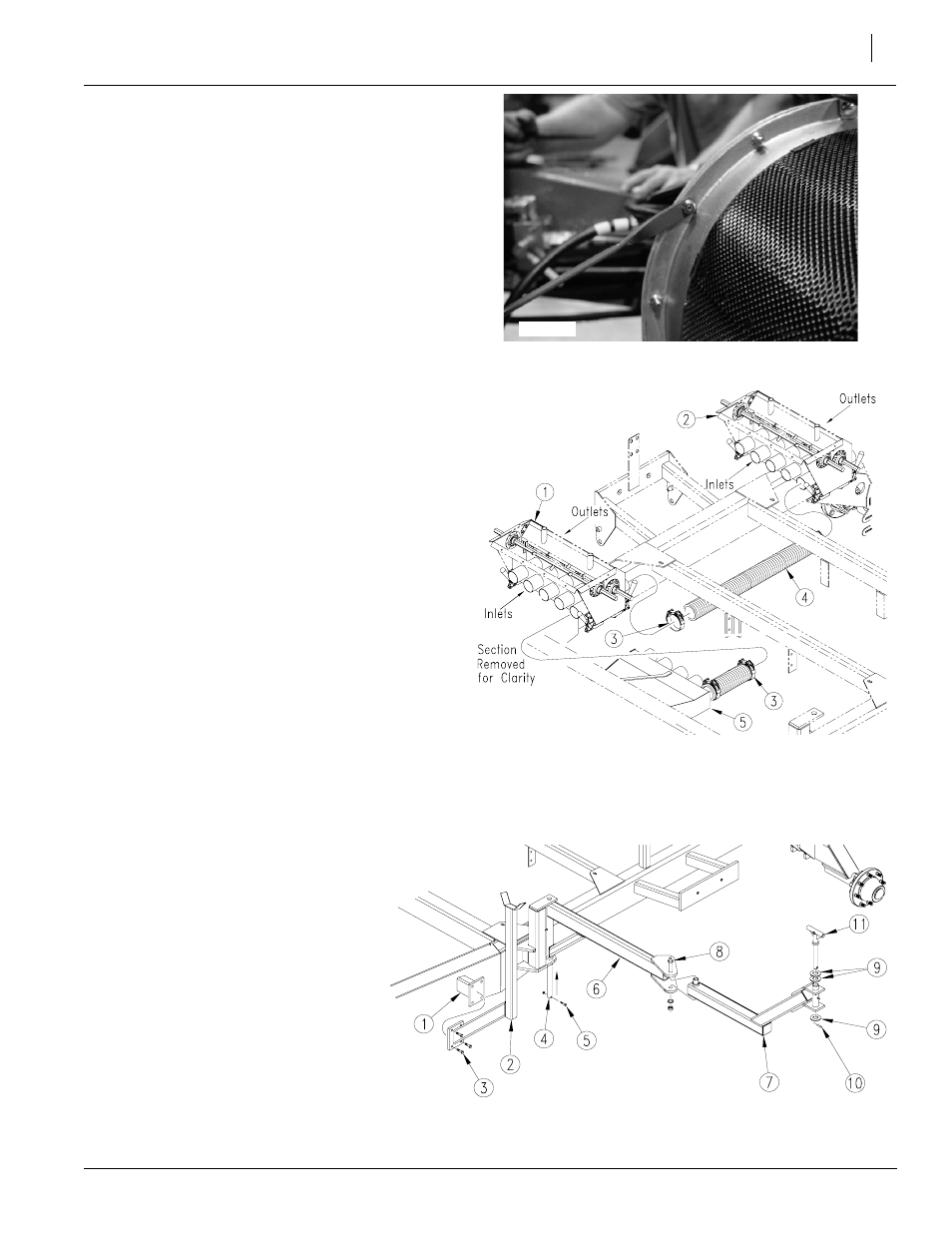

Refer to Figure 42
6.
Secure transition to fan with previously re-
moved bolt.
Refer to Figure 43
7.
Attach hoses from fan outlet transition (5) to
front meterbox (1) inlets. Secure with hose
clamps (3).
8.
Using hose clamps (3), attach hose (4) from
front (1) meterbox outlets to rear meterbox (2)
inlets.
9.
Secure hose (4) on rear meterbox (2) inltets
with hose clamps (3).
Auger Support Weldments
Refer to Figure 44
1.
Attach auger front storage support arm (2) to
mounting plate (1) located on the frame. Use
bolts (3) to secure arm (2) to plate (1).
2.
Attach inner support arm (6) to frame using
inner support arm shaft (4). Secure inner
support arm shaft with bolt (5) and lock nut.
3.
Insert outer pivot shaft tube into outer sup-
port arm weldement (7). Secure outer arm to
inner support arm (6) using bolt (8), lock
washer, and hex nut.
4.
Insert auger swivel support (11) through two
flat washers (9), outer support arm weldment
(7), and a flat washer (9). Secure with pin roll
(10).
Figure 44
Install Auger Support Weldments
23459
