167-088Q-RUS

3/3/2006

ADC2220 & NTA 3510

20

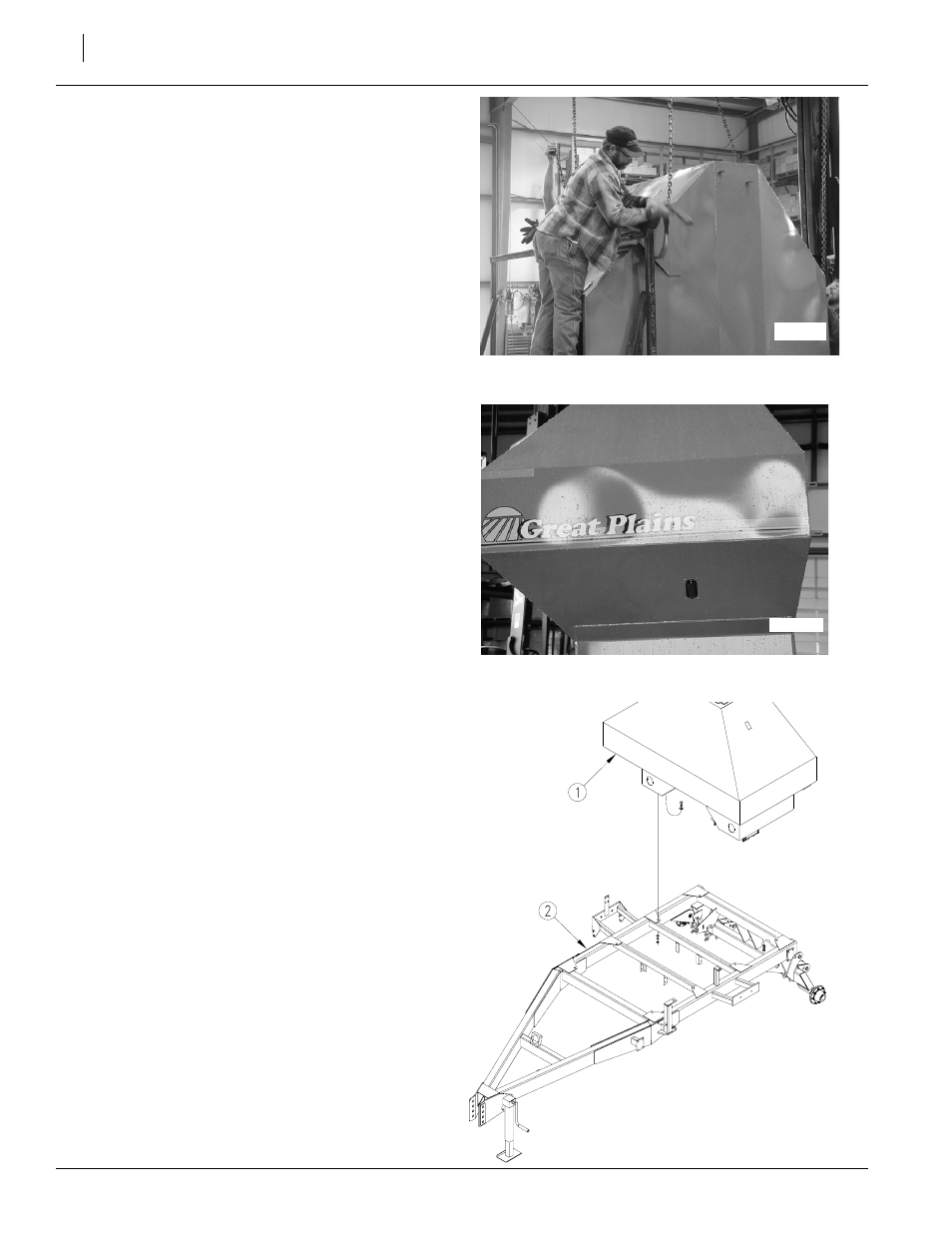

Figure 33

Attach Lift Straps to Rear Bin

Figure 34

Rear Bin

Refer to Figure 33

14. Attach lift straps to rear bin. NOTE: This will

be the bin with the slow moving vehicle de-
cal.

15. Unscrew and remove all bolts securing rear

bin to rack.

16. Using forklift or other implement, carefully re-

move rear bin from rack.

Refer to Figure 34

17. Once bin is removed from rack, carefully

lower bin to ground. Remove lift straps from
bin.

NOTE: Be careful when handling bins. To
prevent damage, bins should be supported
at all times.

18. Reposition lift straps on bin so bin may be

raised with forklift as shown in Figure 34.

19. Raise bin from ground using forklift.

Refer to Figure 35

20. Place rear bin (1) on air drill cart frame. Make

sure front of the bin (1) is toward front of frame
(2). NOTE: The flat side of the rear bin is
the front.

23058

23059

23061

Figure 35

Rear Bin to Frame
