Great Plains YP Fertilizer System User Manual
General information, Yield-pro planters, Tools required
Great Plains Mfg., Inc.
Installation Instructions
1
©Copyright 2007
Printed 02/29/2008
407-197M
Fertilizer System
Yield-Pro Planters
Used with:
•
YP1625
General Information
These instructions explain how to install a complete Fertil-
izer System. These kit add tanks, a ground drive pump
and two boom systems to a YP1625 planter that presently
has no fertilizer components.
These instructions apply to an installation of all of:
The 407-133A low rate or starter system is presumed to
be connected to the 407-122A tank system via the 407-
134A ground drive pump.
The 407-137A high rate system is presumed to be con-
nected to a customer-provisioned pump and material sup-
ply system.
Each set of kits upgrades an entire planter.
Tools Required
• current YP1625 Parts Manual (401-226P)
current YP1625 Operator Manual (401-226M)
• basic hand tools, including:
- pipe or tubing cutter,
- brush for liquid pipe sealant
• hoist or lift with a capacity of 500 pounds (227 kg)
• about two dozen UV-resistant cable ties at least 8
inches long
Notations and Conventions
“Left” and “Right” are facing in the
direction of machine travel. An orienta-
tion rose in the line art illustrations
shows the directions of Left, Right,
Front, Back, Up, Down.
Call-Outs
Kit
Kit Description
YP16 HI-RATE FERT MANIFOLD KIT
When you see this symbol, the subsequent instructions
and warnings are serious - follow without exception.
Your life and the lives of others depend on it!
!

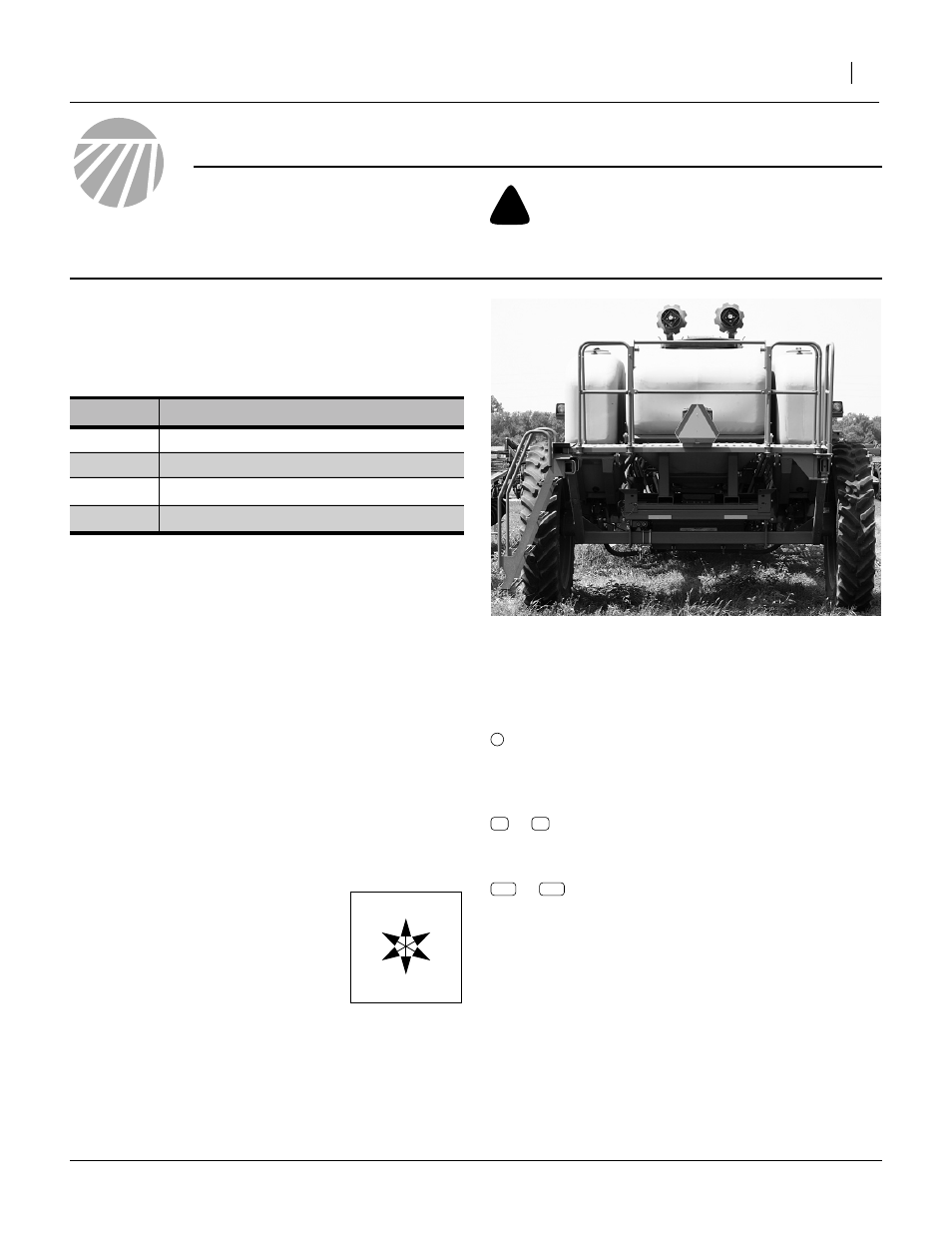

Figure 1
Tanks and Inlet Installed
27103
U
D
L
R
B
F
Single-digit callouts identify components in
the currently referenced Figure or Figures.
These numbers may be reused for different
items from page to page.
to
Two-digit callouts reference affected existing
parts from the table on page 35. The descrip-
tions match those in your Parts Manual.
to
Three-digit callouts reference new parts from
the new parts lists beginning on page 28.
The descriptions match those on the cartons,
bags or item tags, as well as descriptions
your updated Parts Manual.
1
