Page 36
34
NTA3010, NTA3510 and ADC
Great Plains Manufacturing, Inc.
160-220M
11/06/2008
NTA-3510 Port Assignments, 10in (25.4cm) Drill
Drill Model: NTA3510-4010
Towers are numbered from drill left (Tower 1).
Tower Ports are numbered Clockwise from
mount center (Port 1) to Port 8.
Openers are numbered from drill left (Row 1).
Tower
Hose Length
Port
Opener
To
w
e
r
1
74in (188cm)
Port 1
Row 8
50in (127cm)
Port 2
Row 3
57in (145cm)
Port 3
Row 1
53in (135cm)
Port 4
Row 2
48in (122cm)
Port 5
Row 4
48in (122cm)
Port 6
Row 5
52in (132cm)
Port 7
Row 6
58in (147cm)
Port 8
Row 7
To
w
e
r
2
66in (168cm)
Port 1
Row 15
74in (188cm)
Port 2
Row 14
112in (284cm)
Port 3
Row 9
107in (272cm)
Port 4
Row 10
99in (251cm)
Port 5
Row 11
103in (262cm)
Port 6
Row 12
95in (241cm)
Port 7
Row 13
71in (180cm)
Port 8
Row 16
To
w
e
r
3
61in (155cm)
Port 1
Row 23
71in (180cm)
Port 2
Row 24
60in (152cm)
Port 3
Row 21
59in (150cm)
Port 4
Row 19
62in (157cm)
Port 5
Row 17
61in (155cm)
Port 6
Row 18
58in (147cm)
Port 7
Row 20
59in (150cm)
Port 8
Row 22
To
w
e
r
4
72in (183cm)
Port 1
Row 26
68in (173cm)
Port 2
Row 25
84in (213cm)
Port 3
Row 28
95in (241cm)
Port 4
Row 29
96in (244cm)
Port 5
Row 30
102in (259cm)
Port 6
Row 31
117in (297cm)
Port 7
Row 32
67in (170cm)
Port 8
Row 27
To
w
e
r
5
55in (140cm)
Port 1
Row 38
56in (142cm)
Port 2
Row 33
56in (142cm)
Port 3
Row 34
48in (122cm)
Port 4
Row 35
47in (119cm)
Port 5
Row 36
45in (114cm)
Port 6
Row 37
49in (124cm)
Port 7
Row 39
60in (152cm)
Port 8
Row 40

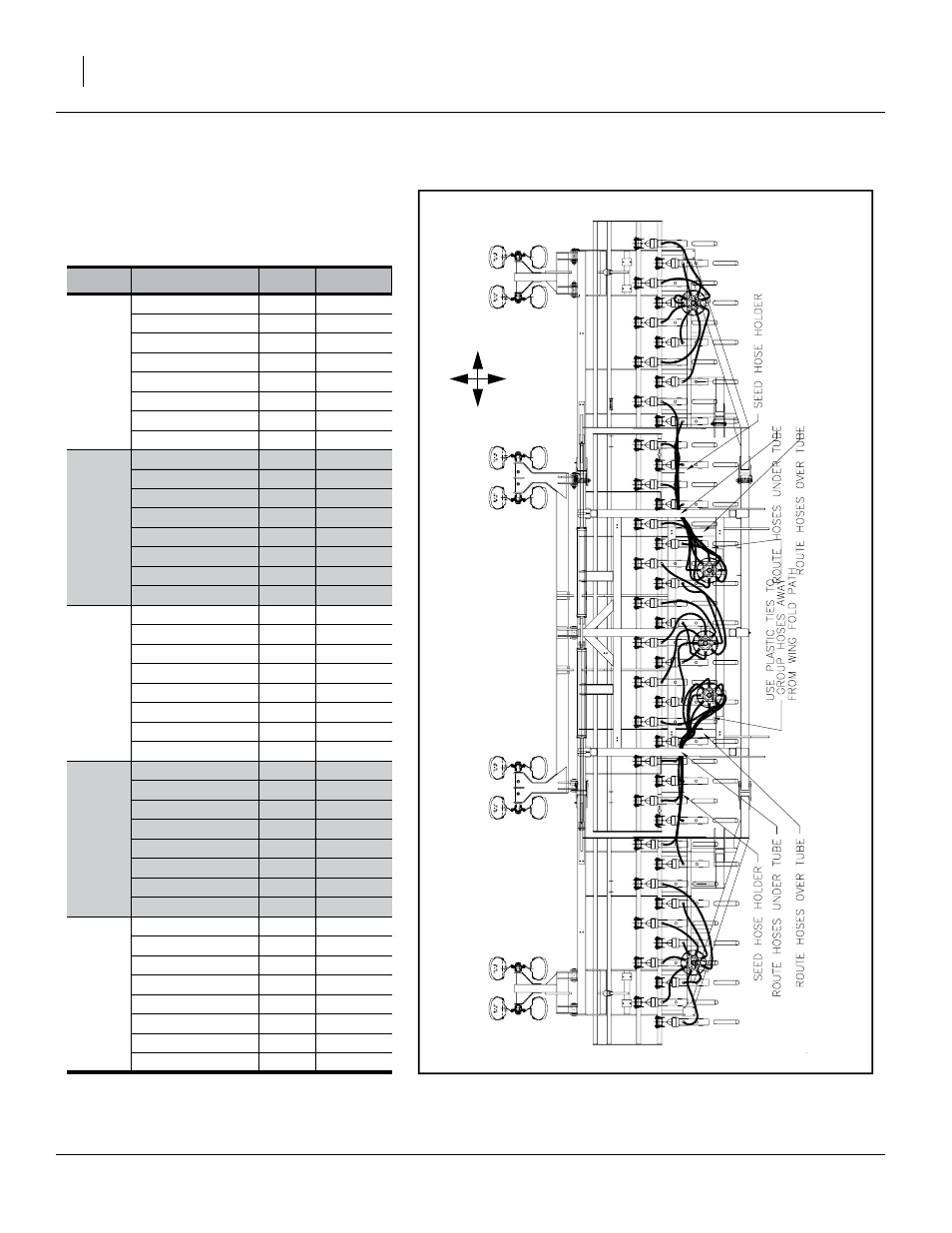

Figure 45
NTA3510-4010 Secondary Hoses
16203
R
L
B
F
