28 NTA3010, NTA3510 and ADC Great Plains Manufacturing, Inc.
160-220M 11/06/2008
NTA3010 Towers and Primary Hoses
NTA3510 Towers and Primary Hoses
Tower Approximate Hose Length Tower Approximate Hose Length
1 290in (737 cm) 4 290in (737 cm)
2 169in (429 cm) 5 169in (429 cm)
Tower Approximate Hose Length Tower Approximate Hose Length
1 274in (696 cm) 4 152in (386 cm)
2 152in (386 cm) 5 274in (696 cm)
3 132in (335 cm)
Figure 37

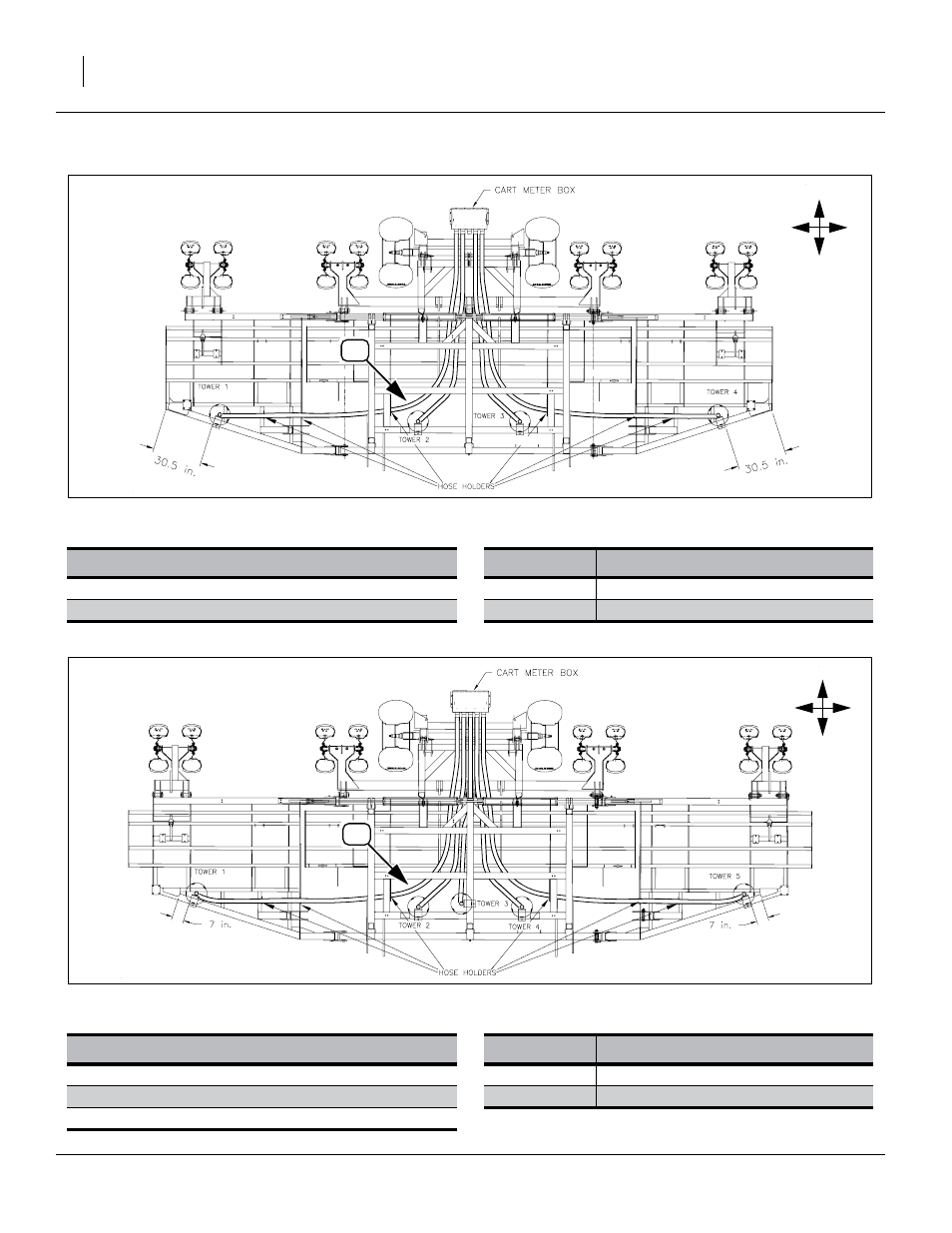

NTA3010 Towers and Primary Seed Hoses
16899
F
B
R L
77.5 cm
77.5 cm
62
Figure 38
NTA3510 Towers and Primary Seed Hoses
16201
F
B
R L
17.8 cm 17.8 cm
62
