20 NTA3010, NTA3510 and ADC Great Plains Manufacturing, Inc.
160-220M 11/06/2008
Make Electrical Connections
Electrical connection details are slightly different for
ADC2350 and ADC2220 carts.
ADC2350 Electrical Connections
Refer to Figure 20
Make sure tractor is shut down with accessory power off
before making connections.
10. Mate the lighting plug to the outlet connector on
the cart.
11. Mate the implement lift switch cable to the socket
on the cart.
12. Mate the seed monitor plug to the outlet connector
on the cart.
13. Secure cables so they are clear of moving parts at
the hitch. Continue at “Make Hydraulic Connec-
tions” on page 21.
Note: After-market markers may later require additional
electrical connections not listed here.
ADC2220 Electrical Connection
The standard ADC2220 has a single harness connec-
tion.
Refer to Figure 21
14. Connect the drill harness to the receptacle at the
right end of the hydraulic port bulkhead on the cart.
15. Check line, and cable-tie as needed to make sure it
will not be damaged during implement operation.
Note: After-market markers may later require additional
electrical connections not listed here.

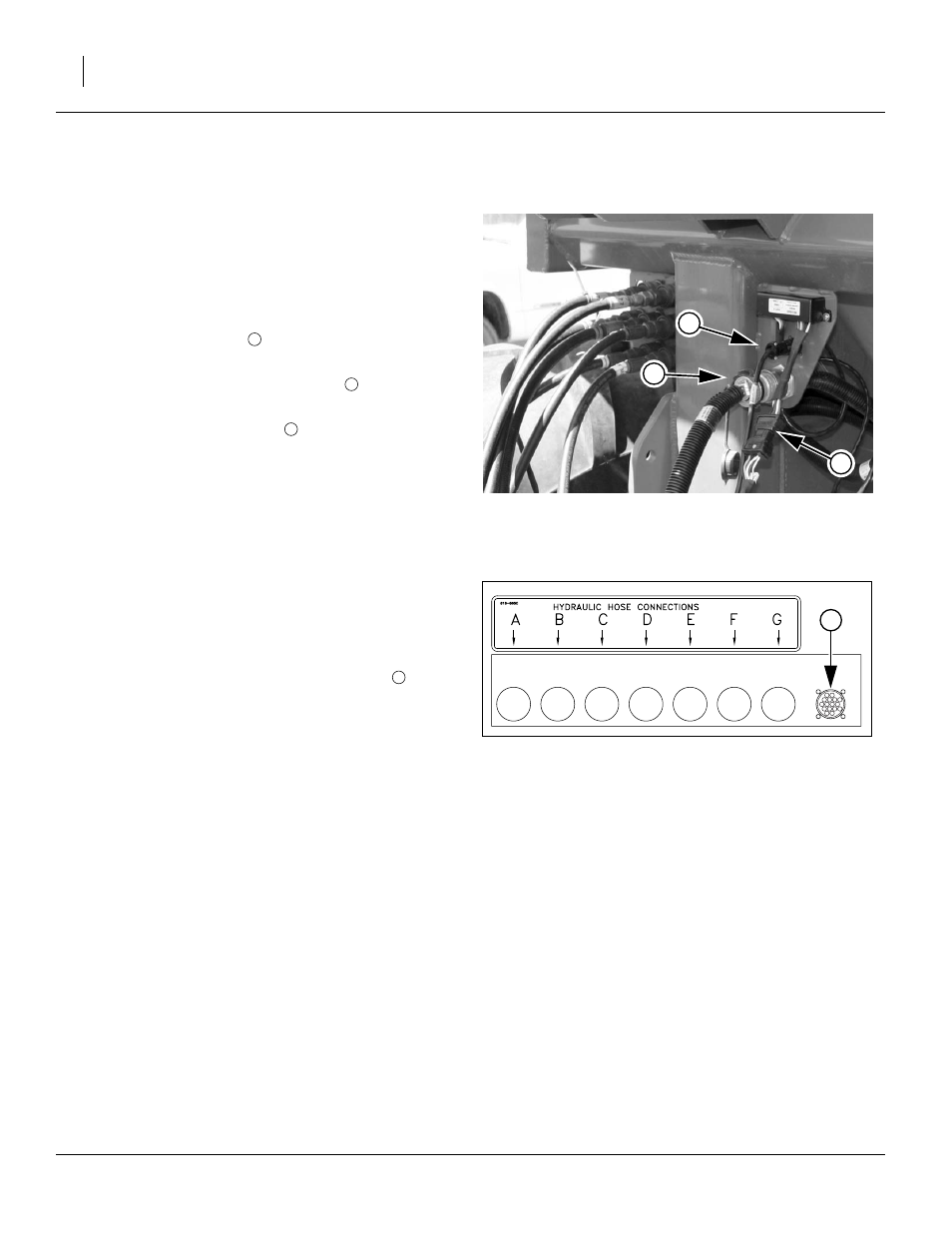

Figure 20
ADC2350 Lighting & Monitor
26439
1
3
2
1
2
3
Figure 21
ADC2220 Harness Port
26434
4
4
