Page 34
32
NTA3010, NTA3510 and ADC
Great Plains Manufacturing, Inc.
160-220M
11/06/2008
NTA-3010 Port Assignments, 10in (25.4cm) Drill
Drill Model: NTA3010-3610
Towers are numbered from drill left (Tower 1).
Tower Ports are numbered Clockwise from
mount center (Port 1) to Port 9.
Openers are numbered from drill left (Row 1).
Tower
Hose Length
Port
Opener
To
w
e
r
1
61in (155cm)
Port 1
Row 5
53in (135cm)
Port 2
Row 3
55in (140cm)
Port 3
Row 1
52in (132cm)
Port 4
Row 2
51in (130cm)
Port 5
Row 4
58in (147cm)
Port 6
Row 6
66in (168cm)
Port 7
Row 8
109in (277cm)
Port 8
Row 9
66in (168cm)
Port 9
Row 7
To
w
e
r
2
67in (170cm)
Port 1
Row 14
62in (157cm)
Port 2
Row 13
73in (185cm)
Port 3
Row 11
86in (218cm)
Port 4
Row 10
69in (175cm)
Port 5
Row 12
59in (150cm)
Port 6
Row 15
60in (152cm)
Port 7
Row 16
66in (168cm)
Port 8
Row 18
60in (152cm)
Port 9
Row 17
To
w
e
r
3
64in (163cm)
Port 1
Row 23
61in (155cm)
Port 2
Row 21
62in (157cm)
Port 3
Row 19
62in (157cm)
Port 4
Row 20
61in (155cm)
Port 5
Row 22
63in (160cm)
Port 6
Row 24
66in (168cm)
Port 7
Row 25
89in (226cm)
Port 8
Row 27
89in (226cm)
Port 9
Row 26
To
w
e
r
4
57in (145cm)
Port 1
Row 33
55in (140cm)
Port 2
Row 31
67in (170cm)
Port 3
Row 29
105in (267cm)
Port 4
Row 28
65in (165cm)
Port 5
Row 30
53in (135cm)
Port 6
Row 32
50in (127cm)
Port 7
Row 34
57in (145cm)
Port 8
Row 36
55in (140cm)
Port 9
Row 35

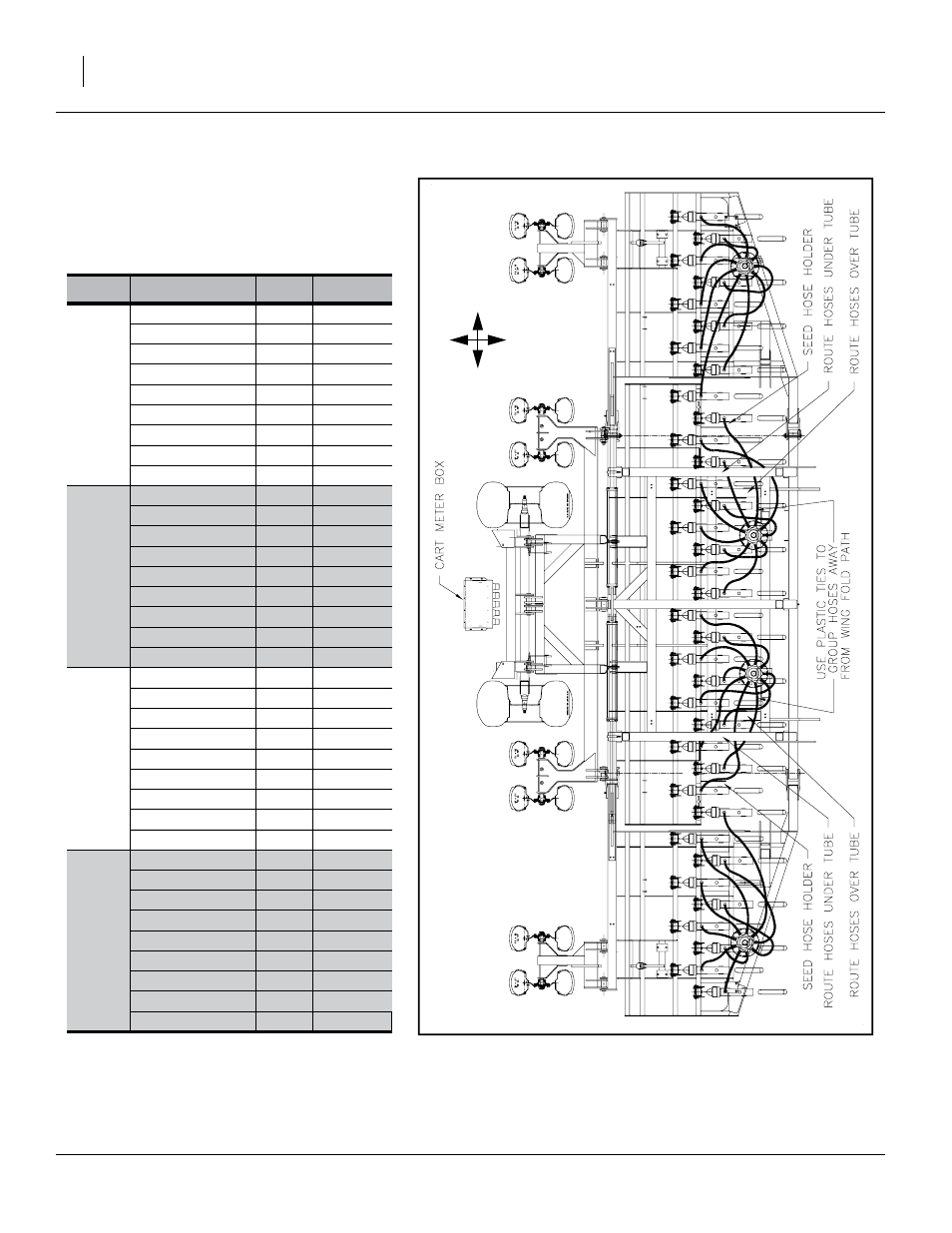

Figure 43
NTA3010-3610 Secondary Hoses
16963
R
L
B
F
