Install Wheels
Refer to Figure 4
Wheels are supplied as mirror-image assemblies,
mounted for left vs. right hand use. The wheel assem-
blies use identical tires and rims, each side mounted with
the valve stem to the outside. The figure shows tread ori-
entations suggested by Great Plains.
If the customer’s preference is to reverse the tread pat-
tern at the ground, the wheels may be mounted on the
opposite cart side. Do not merely invert the wheels, or
the valve stems will be to the inside.
10. Jack up the rear end of the cart, and support the rear
of the frame with jack stands.
11. Remove and save the nuts (20 total):
803-183C NUT HEX FLANGE 3/4-16 PLT
from the rear hub assemblies.
12. Select one:
168-381K 23.5/55-26 TIRE/20-10BLT WL LH
Mount the wheel , valve stem side out, on the left
side of the cart. Secure with ten nuts .
13. Select one:
168-380K 23.5/55-26 TIRE/20-10BLT WL RH
Mount the wheel , valve stem side out, on the right
side of the cart. Secure with ten nuts .
14. Lower rear end of cart to ground.
Cart Closeout
15. Verify that the cart has the correct sprocket for the
drill. See “Cart Drive System” in the Air Cart Opera-
tor manual.
Install Cab Components
If the customer tractor is available, install the Seed Moni-
tor in the tractor cab. This is described under “Prepara-
tion and Setup” in the Air Cart Operator manual.

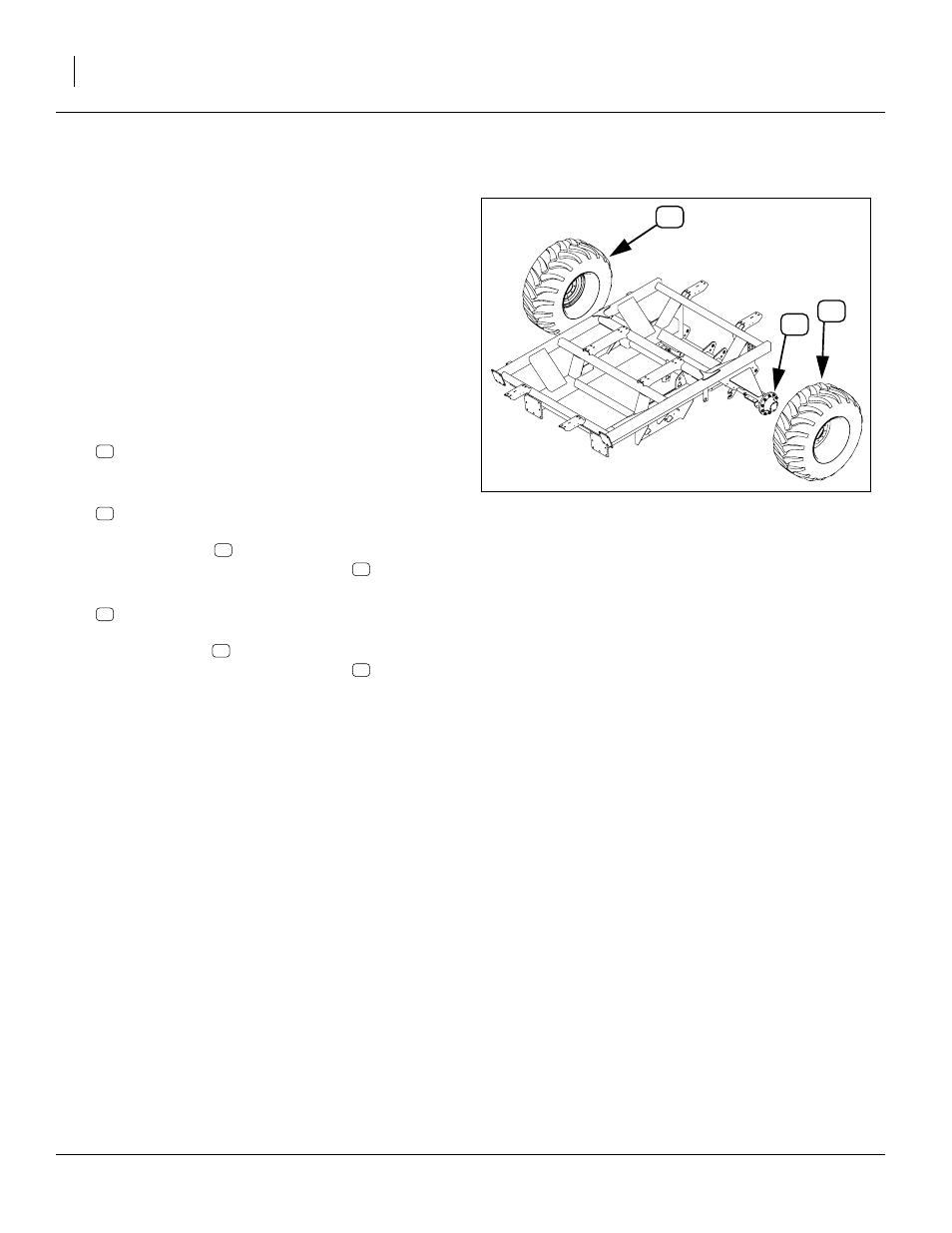

Figure 4
Air Cart Transport Wheels
28453
