NTA-3010 Port Assignments, 7.5in (19.2cm) Drill
Drill Model: NTA3010-4875
Towers are numbered from drill left (Tower 1).
Tower Ports are numbered Clockwise from
mount center (Port 1) to Port 12.
Openers are numbered from drill left (Row 1).
Tower
Hose Length
Port
Opener
To
w
e
r
1
61in (155cm)
Port 1
Row 5
57in (145cm)
Port 2
Row 4
58in (147cm)
Port 3
Row 3
59in (150cm)
Port 4
Row 1
53in (135cm)
Port 5
Row 2
54in (137cm)
Port 6
Row 6
62in (157cm)
Port 7
Row 8
62in (157cm)
Port 8
Row 10
115in (292cm)
Port 9
Row 12
70in (178cm)
Port 10
Row 11
62in (157cm)
Port 11
Row 9
63in (160cm)
Port 12
Row 7
To
w
e
r
2
66in (168cm)
Port 1
Row 17
72in (183cm)
Port 2
Row 15
82in (208cm)
Port 3
Row 13
81in (206cm)
Port 4
Row 14
70in (178cm)
Port 5
Row 16
63in (160cm)
Port 6
Row 18
62in (157cm)
Port 7
Row 20
62in (157cm)
Port 8
Row 22
64in (163cm)
Port 9
Row 24
60in (152cm)
Port 10
Row 23
59in (150cm)
Port 11
Row 21
63in (160cm)
Port 12
Row 19
To
w
e
r
3
62in (157cm)
Port 1
Row 33
63in (160cm)
Port 2
Row 29
59in (150cm)
Port 3
Row 27
64in (163cm)
Port 4
Row 25
63in (160cm)
Port 5
Row 26
59in (150cm)
Port 6
Row 28
60in (152cm)
Port 7
Row 30
58in (147cm)
Port 8
Row 31
63in (160cm)
Port 9
Row 32
71in (180cm)
Port 10
Row 34
89in (226cm)
Port 11
Row 36
74in (188cm)
Port 12
Row 35
To
w
e
r
4
79in (201cm)
Port 1
Row 40
55in (140cm)
Port 2
Row 43
63in (160cm)
Port 3
Row 41
112in (284cm)
Port 4
Row 38
106in (269cm)
Port 5
Row 37
65in (165cm)
Port 6
Row 39
57in (145cm)
Port 7
Row 42
50in (127cm)
Port 8
Row 44
49in (124cm)
Port 9
Row 45
53in (135cm)
Port 10
Row 46
55in (140cm)
Port 11
Row 48
52in (132cm)
Port 12
Row 47

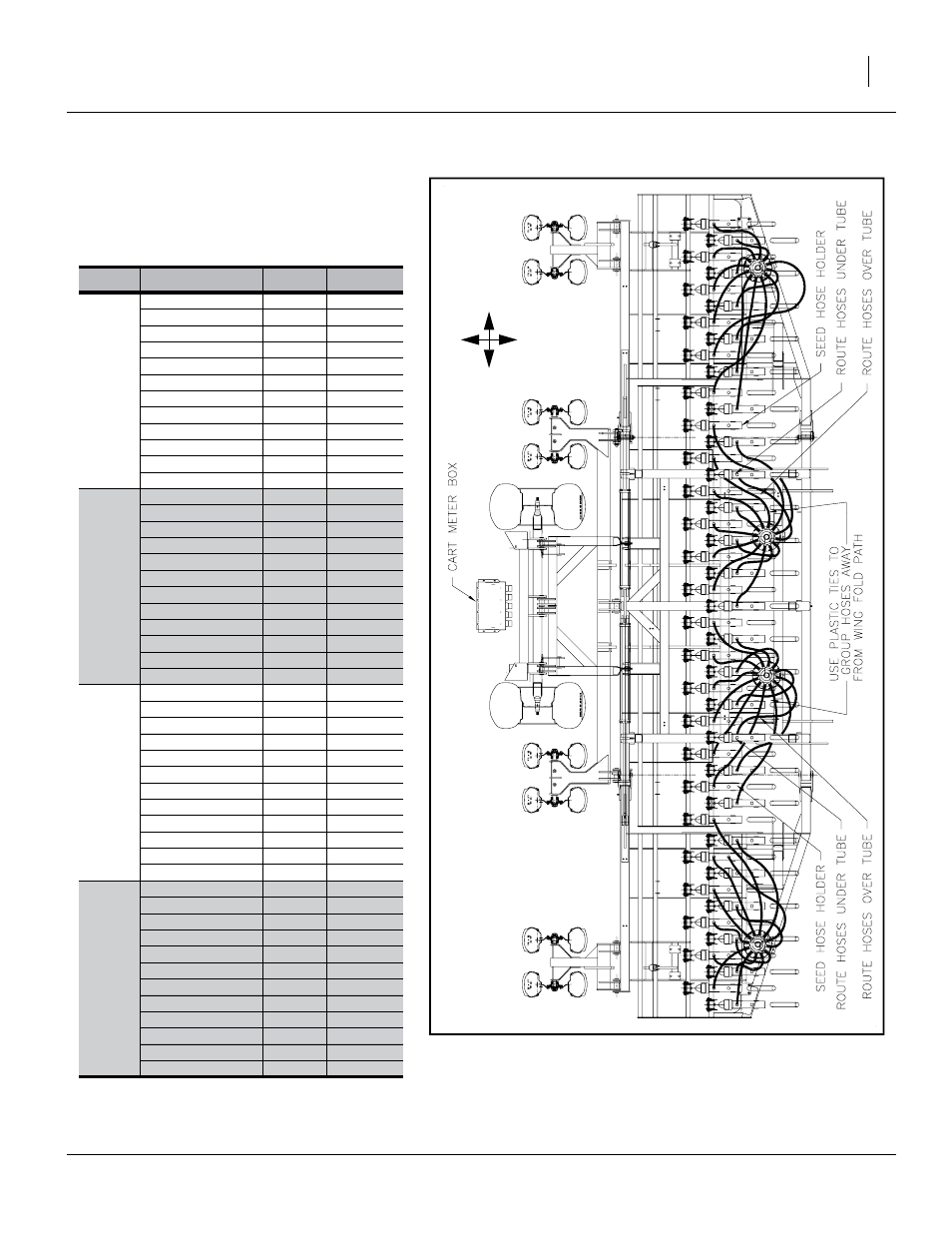

Figure 44
NTA3010-4875 Secondary Hoses
