Great Plains Manufacturing, Inc. Setup 21
11/06/2008 160-220M
Make Hydraulic Connections
ADC2350 and ADC2220 hydraulic port assignment are
identical. Location and layout of the port bulkheads are
different. Both are to the left side of cart rear frame.
!
WARNING
Escaping fluid under pressure can penetrate skin, causing seri-
ous injury. Avoid the hazard by relieving pressure before dis-
connecting hydraulic lines. Use a piece of paper or cardboard,
NOT BODY PARTS, to check for leaks. Wear protective gloves
and safety glasses or goggles when working with hydraulic
systems. If an accident occurs, seek immediate medical atten-
tion from a physician familiar with this type of injury.
Refer to Figure 22
To distinguish hoses on the same hydraulic circuit, refer
to plastic hose label. The hose under an extended-cylin-
der symbol feeds a cylinder base end. The hose under a
retracted-cylinder symbol feeds a cylinder rod end.
IMPORTANT !
DO NOT connect return line to a power-beyond-port.
The drill has two or three hydraulic circuits (with a low
pressure sump return line). The standard circuits power
lift, fold and weight-transfer functions. An optional circuit
operates the markers.
16. Remove male fittings from hydraulic quick couplers
on the rear of the cart. Screw the male ends onto the
implement hydraulic hoses.
IMPORTANT !
If you will not be installing markers, store the male QD
fittings with the drill for future use. Do not leave them in
the QD ports or oil will spill.
17. Shut down tractor hydraulics.
18. Connect either (orange) Marker hose to receptacles
and in any order.
19. Connect the Retract/rod-end hose of the (blue)
Lower pair to receptacle . Connect the Extend/
base-end hose of the (blue) Lift pair to receptacle
20. Connect the Retract/rod-end hose of the (yellow)
Fold pair to receptacle . Connect the Extend/base-
end hose of the (yellow) Unfold pair to receptacle .
21. Connect the sump hose to receptacle .
22. Check hose routing to ensure adequate slack for link
arm movement, and clearance from pinching or
abrading cart/drill components.

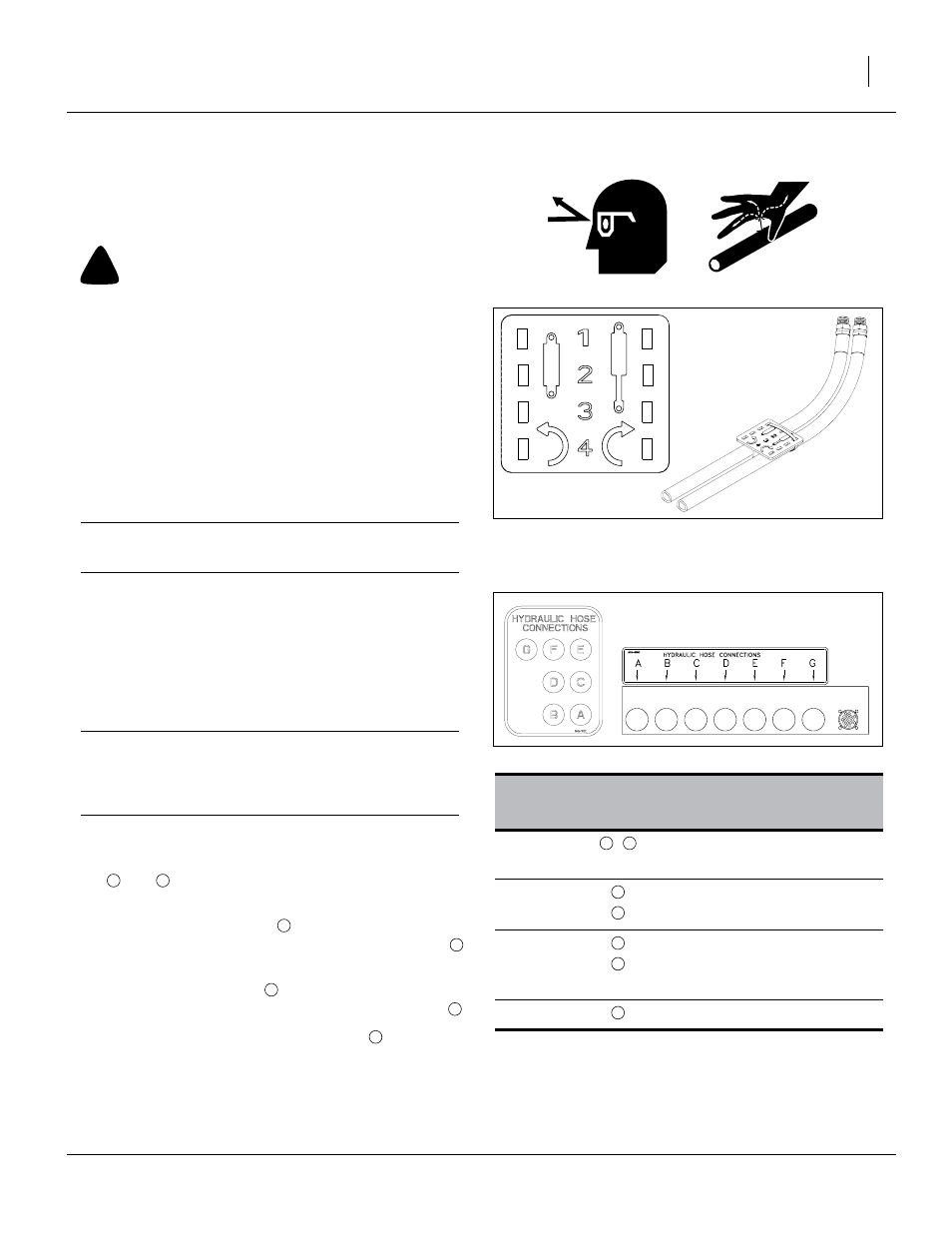

Figure 22
Plastic Hose Label
817-348c
17641
Color
Cart
Ports
Hydraulic Function
Orange , Markers
(also used for Auger on cart)
Blue Lower
Lift
Yellow Fold
Unfold and Weight Transfer
(also used for Fan on cart)
No Color Sump return
A B
C
D
E
F
G
A B
C
D
E
F
G
