Great Plains Manufacturing, Inc. Adjustments 53
03/28/2012 196-522M
Press Wheel Adjustments
Opener Depth (Press Wheel Height)
Seeding depth on 3S-4010HD and 3S-4010HDF is set
by frame-mounted coulter depth (if installed) and row unit
depth. Whether frame-mounted coulters are installed or
not, set frame height (page 37 or page 41) before mak-
ing row unit depth adjustments.
10HD Series press wheel height is a stop adjustment
and not a spring adjustment. It establishes a fixed rela-
tionship between opener depth and the closed-furrow
surface at the press wheel

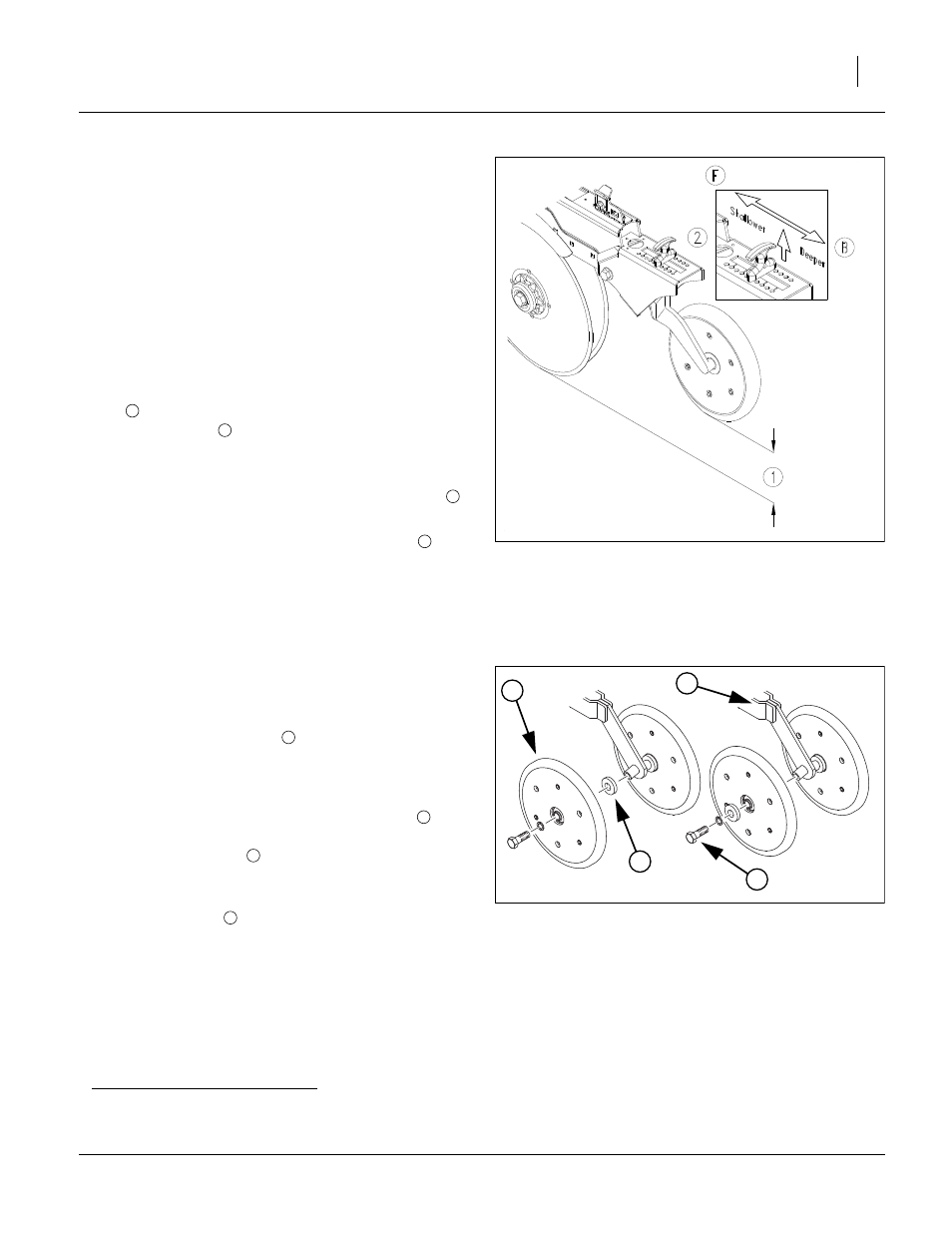

Refer to Figure 64
Set opener seeding depth by adjusting press-wheel
height
. To adjust, first raise openers slightly, then lift
and slide T handles on top of openers. Initially adjust
all press wheels to the same height. Individual rows run-
ning in tire tracks may need to be set deeper
a
.
• For more shallow seeding, slide T handles forward
toward drill.
• For deeper seeding, slide T handles backward
away from drill.
If press wheels are lifting off ground, check front-to-back
level, and increase row unit spring down force.
If press wheels are digging into ground, reduce spring
down force at the row units.
Press Wheel Spacing
Double V Press Wheel Adjustment
Refer to Figure 65
The double-V closing wheels
can be moved inward
and outward to alter how they close the seed trench and
press soil over the seed.
To move the wheels in toward the center of the trench,
remove one of the
1 ⁄
4
in (6.4mm) spacer bushings next
to the press wheel arm and position it under the head of
the hex head cap screw
.
On wider row spacings the closing wheels can be moved
outward by relocating the spacers to the inside, next to
the press wheel arm
.
FigureSpacer:
a. If frame-mounted coulters are installed, adjust them for tire tracks before adjust T-handles. The coulter depth adjustment may be all
that’s required to compensate for tracks.
FigureSpacer:
Figure 64
Initial Opener Depth
27124
1
2
F
B
FigureSpacer:
Figure 65
Double-V Press Wheels
23428
1
2
3
4
1
2
3
4
