28 3S-4010HD and 3S-4010HDF Great Plains Manufacturing, Inc.
196-522M 03/28/2012 E
Fertilizer Divided Capacities
Divider Removal
Refer to Figure 29
a.
Remove 5 ⁄
16
in bolts and flange nuts from tabs
at each end of drill box (2 locations).
b. Remove 5 ⁄
16
in bolts (4) and nuts (5) from lid-
hinge brackets (3 locations).
c. Loosen but do not remove 1 ⁄
4
in bolts and nuts that
clamp the lid assembly angle irons to the plastic
dividers .
d. Lift lid assembly out of drill box. Lift dividers out
of drill box. Reinstall standard or offset dividers.
e. Reinstall lid assembly by reversing step d through
step a.
FigureSpacer:
Refer to Figure 30
6.
Check that the seed/fertilizer flap at the bottom of the
compartment is closed so seed and fertilizer cannot
pass between compartments.
Flap flips forward to block passage. The flap top
edge is secured to the dividers. Rotate the bent clips
to engage the edge of the flap, and tighten the
knobs.
Capacity Ratio Total Capacity
Seed Fertilizer Seed Fertilizer
None 100% 0% 129.6 bu
4567 ltr.
0
Standard 60% 40% 77.8 bu
2740 ltr.
51.8 bu
1827 ltr.
Offset
to Back 68% 32% 88.1 bu
3106 ltr.
41.5 bu
1461 ltr.
Offset
Forward 55% 45% 71.3 bu
2512 ltr.
58.3 bu
2055 ltr.
FigureSpacer:

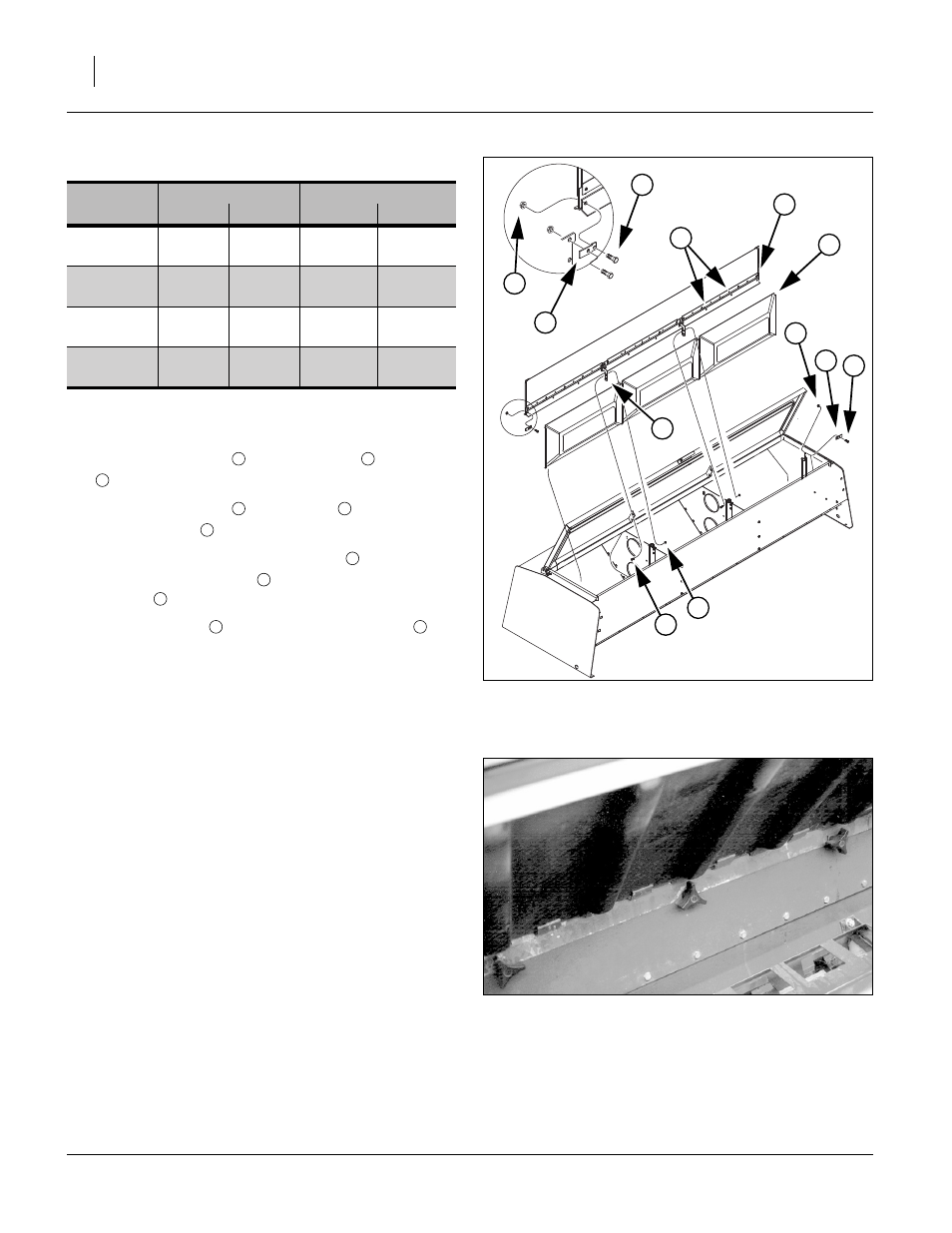

Figure 29
Box Divider Removal
27050
1
3
2
3
2
1
4
5
6
7
8
9
1 2
3
4 5
6
7
8
9
8 9
FigureSpacer:
Figure 30
Seed/Fertilizer Flap Closed
