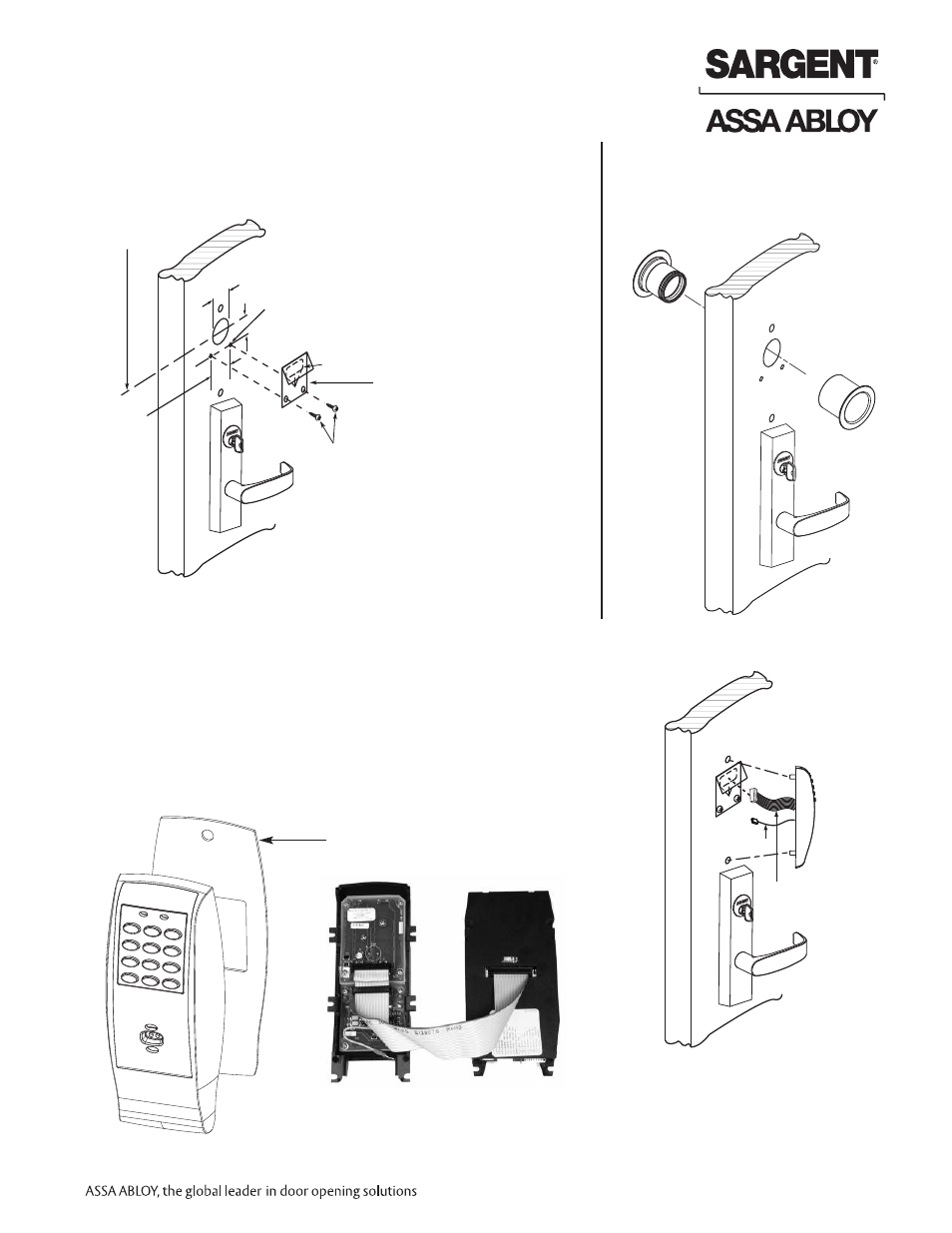

6.3 – Attaching Fire Stop Plate
Rim Installation Instructions (Continued)
Inside of
door Outside
of door
C L of 1-1/2" Dia.
(2) Self tapping
screws #8 x 1/2"
long for wood
& metal doors
(2) 1/8" Dia. Holes can be
drilled if the door is
not supplied with them
Slot
1-1/2'' Dia.
7/8''
1-1/2''
Fire Stop Plate
NOTE: Fire Stop Plate is required
on all fire rated doors only
NOTE: Required for 12- Fire Rated doors only.
1. Drill (2) 1/8" diameter holes if the door is not supplied with them.
2. Secure fire stop plate to door with (2) #8 x 1/2" self tapping screws.
Inside
of door
Outside
of door
Wires & connector
go through fire
stop plate
Keypad ribbon
cable/connector
Ground wire
6.4 – Installation of Outside Escutcheon
Insert connector and wires:
1. For exterior applications, gasket (68-1400) should be used to
seal between escutcheon and outside door surface.
2a. For 12- fire rated devices, feed keypad ribbon cable/connector
from outside of door through gasket then fire stop plate.
2b. For non-12- exit devices, feed keypad ribbon cable/connector
through gasket then conduit hole in door.
3. Place escutcheon against door surface.
For exterior applications. Gasket (68-1400)
should be placed between the escutcheon
and door surface
-
+
-
+
-
+
-
+
+
-
+
-
Security
screw
Security tool
01-0297 included
Battery keeper
Battery cover
- Polarity
+ Polarity
Bottom slots
Top tab
Tabs
Top slots
Non Fire Rated Exterior Doors-
Install Weather Conduit
(P/N 52-2847) as shown below
Ribbon Cable Orientation:
Install with cable exiting DOWN, as shown.
