Profile Series v.G1.5/LK Mortise Lock

Hardwiring options include one or a combination of Forced/Propped Door, Hard Power and/or Remote

Unlock (REX). Refer to the examples on the following pages:

1. Forced/Propped Door Option (DM-).

2. Hard Power and Remote Unlock (91-).
3. Hard Power and Remote Unlock (-91), with Forced Propped Door (DM-).

Important

1. Caution: Disconnect all input power before beginning installation to prevent electrical shock and

equipment damage.

2. Installer must be a trained, experienced service person.
3. All wiring must comply with applicable local electrical codes, ordinances and regulations.

Installation Notes

1. With new applications, an ElectroLynx® door harness with 8 and 4 pin connectors will be

pre-installed inside door by ASSA ABLOY door manufacturer when specified during ordering process.

2. Wiring to pigtail harness is per facility wiring requirement.

ElectroLynx® connector terminations and wire colors all match.

3. If door does not have an ElectroLynx® type door harness, cut connectors off product and hard-wire,

or consult factory for appropriate mating harness.

ElectroLynx®

As part of their promise to provide innovative, fast and effective, and higher security

solutions to their customers, ASSA ABLOY Group companies offer ElectroLynx, a

universal quick-connect system that simplifies the electrification of the door opening.

ElectroLynx® is a registered trademark of ASSA ABLOY, Inc.

Locking Mechanism

Plug

Receptacle

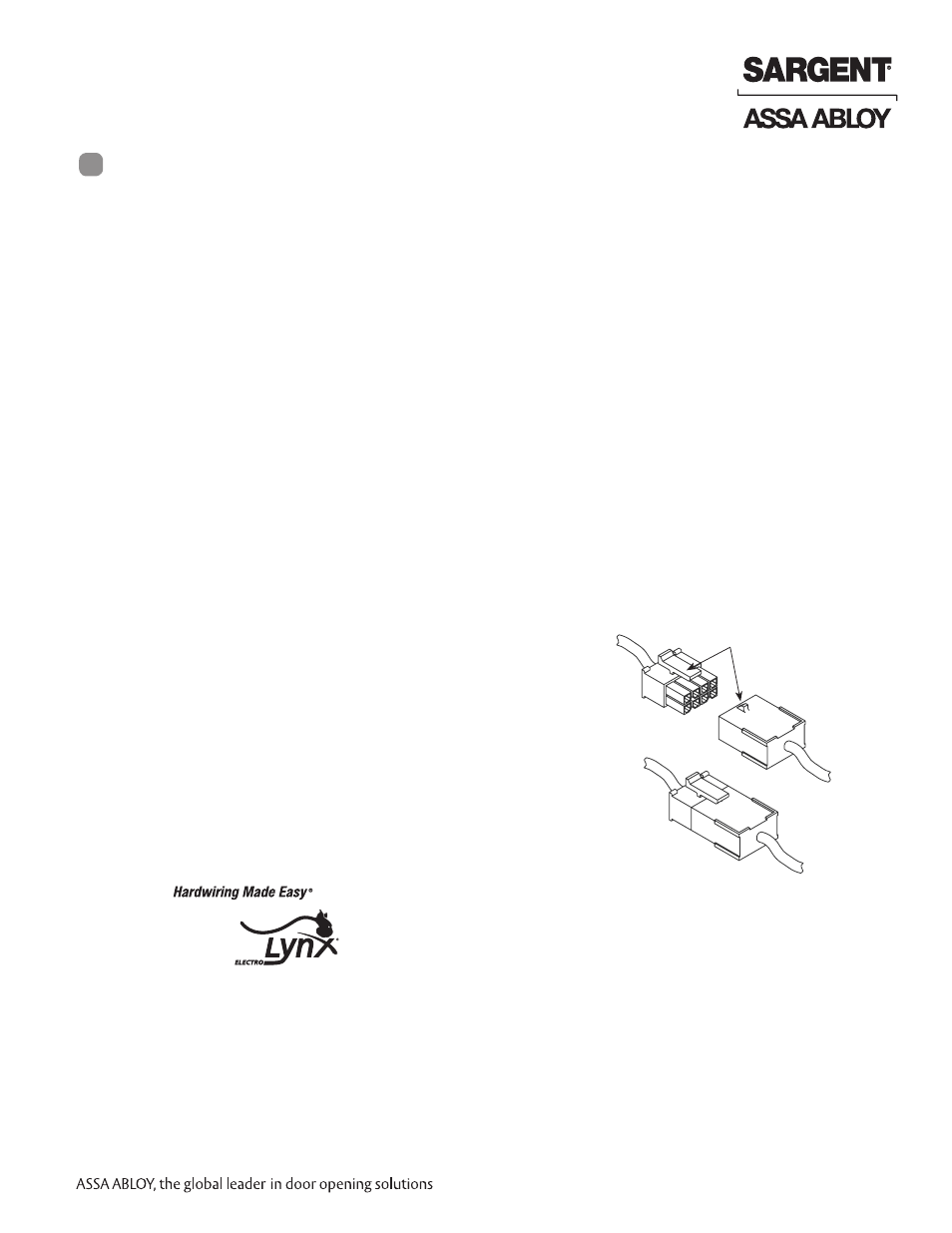

ElectroLynx® Connector System Notes

The system is designed to be installation friendly with connectors

from the electric hinge through the door to the rail. The only wiring

required is to the loose wires on the pigtail harness

assembly on the frame side of the electric hinge.
IMPORTANT:
The plug and receptacle connectors are designed to mate and lock

together as shown in the figure. Plug the connectors into each other

with the locking mechanism aligned as indicated.
Do NOT force connectors on any other way.

Wiring Options
