Installation, Ab c d, Door * inside escutcheon outside escutcheon a – SARGENT Profile Series v.G1.5 Mortise Locks User Manual

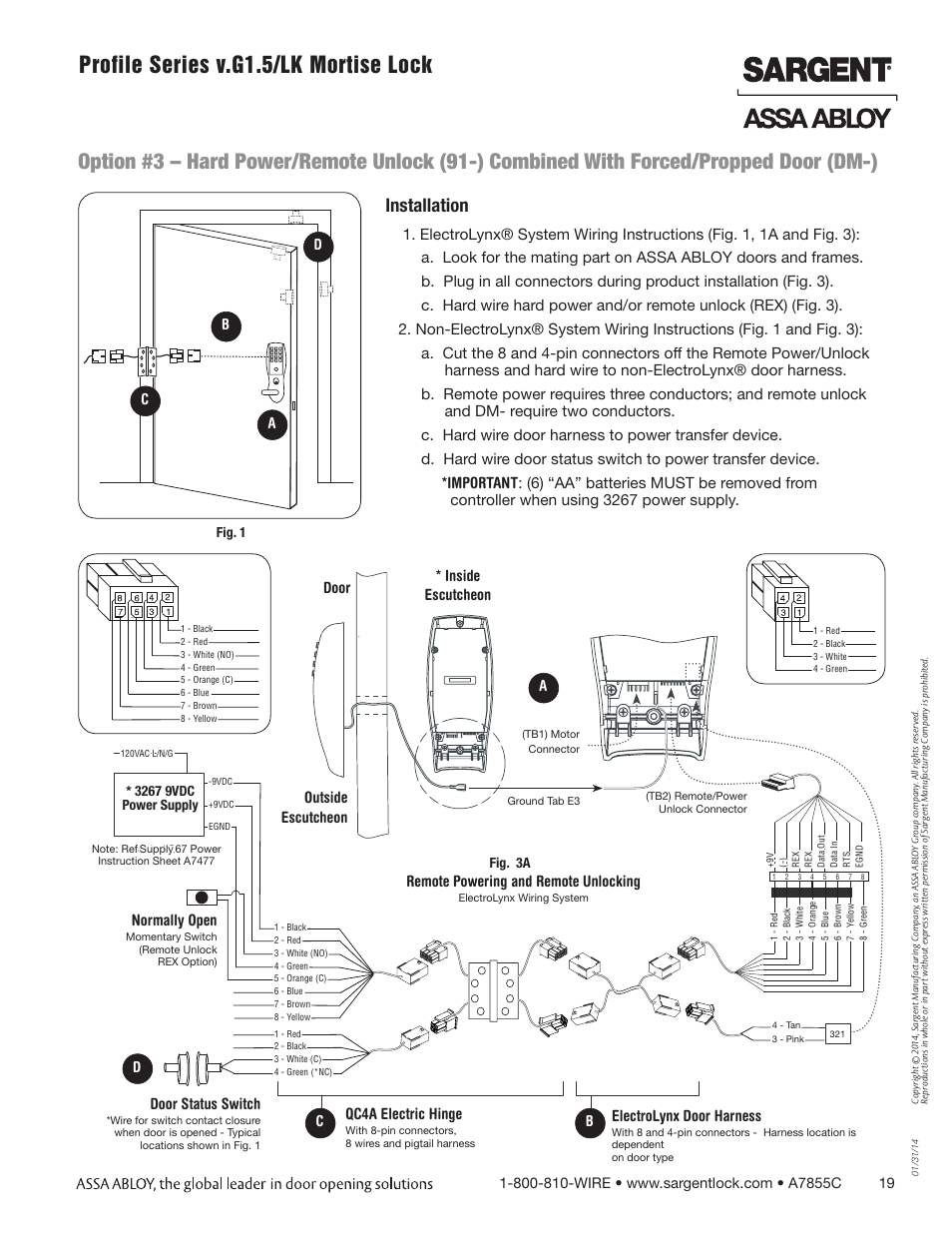

Page 19: Remote powering and remote unlocking, Qc4a electric hinge, Electrolynx door harness, Cb normally open, Door status switch
