Transaction log (lk only), Status indicators, Sequence number – SARGENT Profile Series v.G1.5 Exit Devices User Manual
Page 6: User number, Transaction descriptions, Optional equipment

4
For installation assistance, contact SARGENT at 800-810-WIRE (9473)
To Set Unlock Time
99# Master Code*
Yellow LED blinks
11# (1-99 sec)# 0#
Yellow LED blinks
*
Yellow LED blinks quickly
*
Yellow LED blinks slowly (If solid, see note)
*
Yellow LED goes out
The Unlock Time is adjustable for Momentary Operation. A 5 second unlock time is recommended to extend
battery life. Once the unlock time is entered, it is the same for ALL users except 02.
Status Indicators
No Green LED after code is entered once, but flashes after 3 consecutive entries- Invalid Code
4 Long beeps after code is entered - Low Battery.
4 long beeps after code is entered, 4 more long beeps - Voltage (batteries) too low to operate
Enter Emergency Code to gain 1 entry.
Keypad Programming Instructions for the Profile Series LK Lock
Sequence Number
• Single digit - 0-9
• Latest transaction - 0
• Oldest transaction - 9
User Number
• Three digits - 001 through 099
• User numbers assigned at time of programming
Transaction Descriptions
• Will vary
Optional Equipment
• Printer Paper (6 Rolls) - 52-0034 used for infrared
printers
• Infrared Printer - 52-2069 - used to download the
user and transaction type.
• Remote Unlocking - 52-2071 - used for remote
unlocking of Profile mortise lock. When the deadbolt
is thrown and the remote unlocking feature is used,
both the latchbolt and deadbolt can be retracted by
turning the lever handle.
To output the last 15 transactions, enter 99# Supervisory or
Master Code * 70 # 0 # 0 # **.
• Examples on this page are for
the 100 user, 15 transaction unit
To LED
location
Infrared
printer
(52-2069)
Note: Seq. # 0 is the programming
request to output the entries.
Sequence numbers 1-9 are
the actual entries.

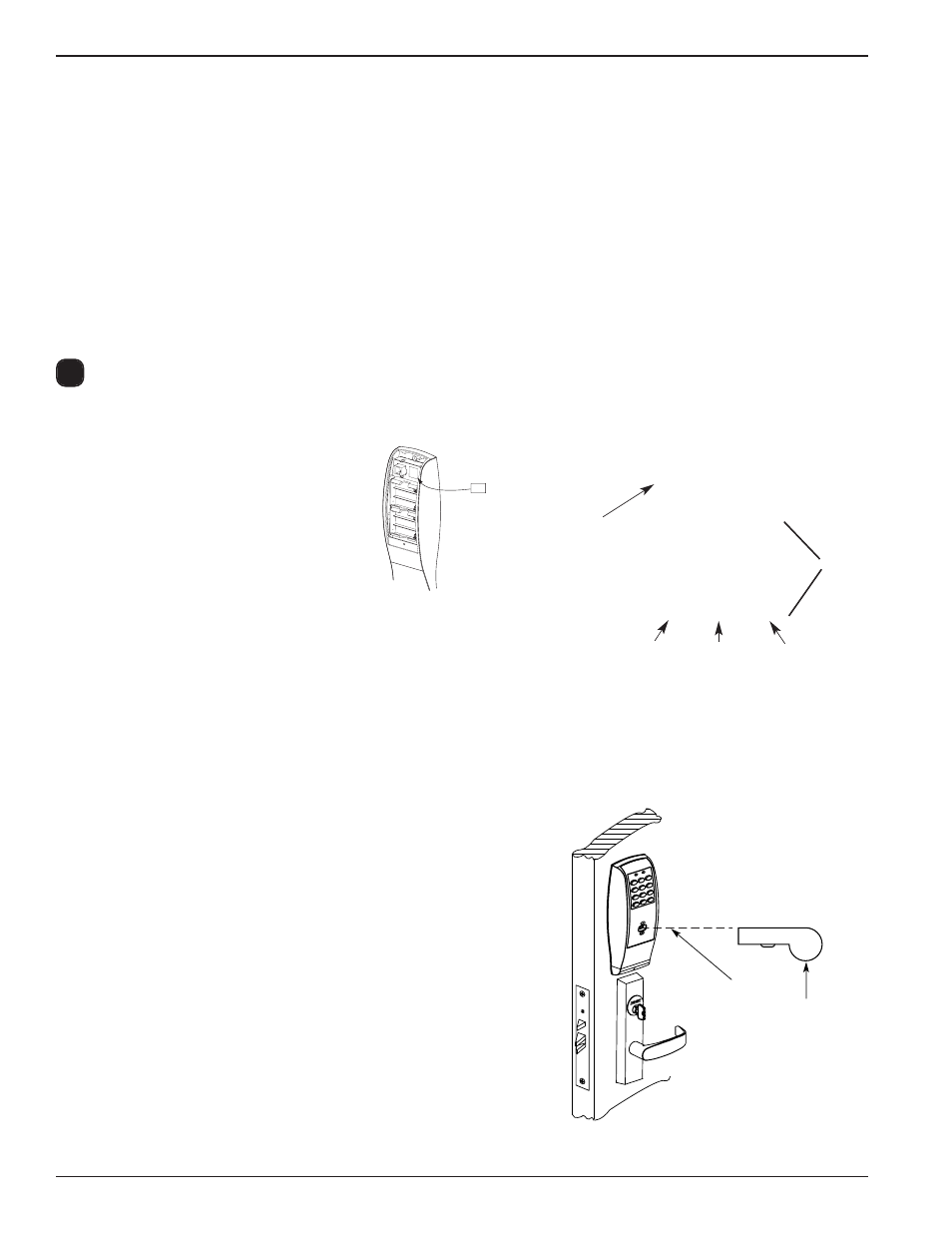

Hold an infrared printer up to the infrared
LED (as shown). An HP82240B Infrared
Printer can be used to download information
from the keypad to a printout.
-
+
-
+
-
+
-
+
+
-
+
-
LK
Transaction Log (LK Only)
2
Door Name 5666
Seq User Trans
0
001
—
1
003
—
2
003
—
3
020
—
4
003
—
Transaction
number
Transaction
type
User
number
Door
name
Varies
