Reprogramming
Note 1: With a proximity card, fob, tag or RF Fob Card selected as a "CommEnable" User, presenting the
"CommEnable" card to the lock will initiate communications after performing Step 2 (above) without
the need to press the CommEnable button.
Note 2: After performing "first time programming" procedure, create a CommEnable card to facilitate
communications from then on.
PDA Response: "Please enter your
communications code at the door"
The PDA will begin transferring
(0-100%) of the door data to the lock.
Status Indicators
3 very rapid beeps after User Code entered - Invalid User Code
4 long beeps after User Code entered - Low Battery Indication
4 long beeps after User Code entered, 4 more long beeps - Voltage too low to operate. Enter Master or
Emergency Code to gain 1 entry
1 beep after User Code entered - Disabled user
4 beeps after User Code entered - Deadbolt thrown
3 beeps after User Code entered - User lockout
Alternating red/green LED — Awaiting second entry of Code/Card, Tag or Fob user
G1-PA & G1-TA Programming
To determine programming steps for your lock:
If your label has a G1-PA or G1-TA and no keypad, then use the
programming below.
If your label has an LK, turn to LK Programming.
If your label has a G1-LU, G1-PK, G1-TU or G1-TP, turn to
programming instructions in previous section
In a Prox Only (PA) or RF Technology & Prox (G1-TA) configuration, all programming must be completed using
SofLink™ Plus Software. The Software includes a convenient Software User’s Manual (A7720A), to be used as a
programming guide.
-
+
-
+
-
+
-
+
+
-
+
-

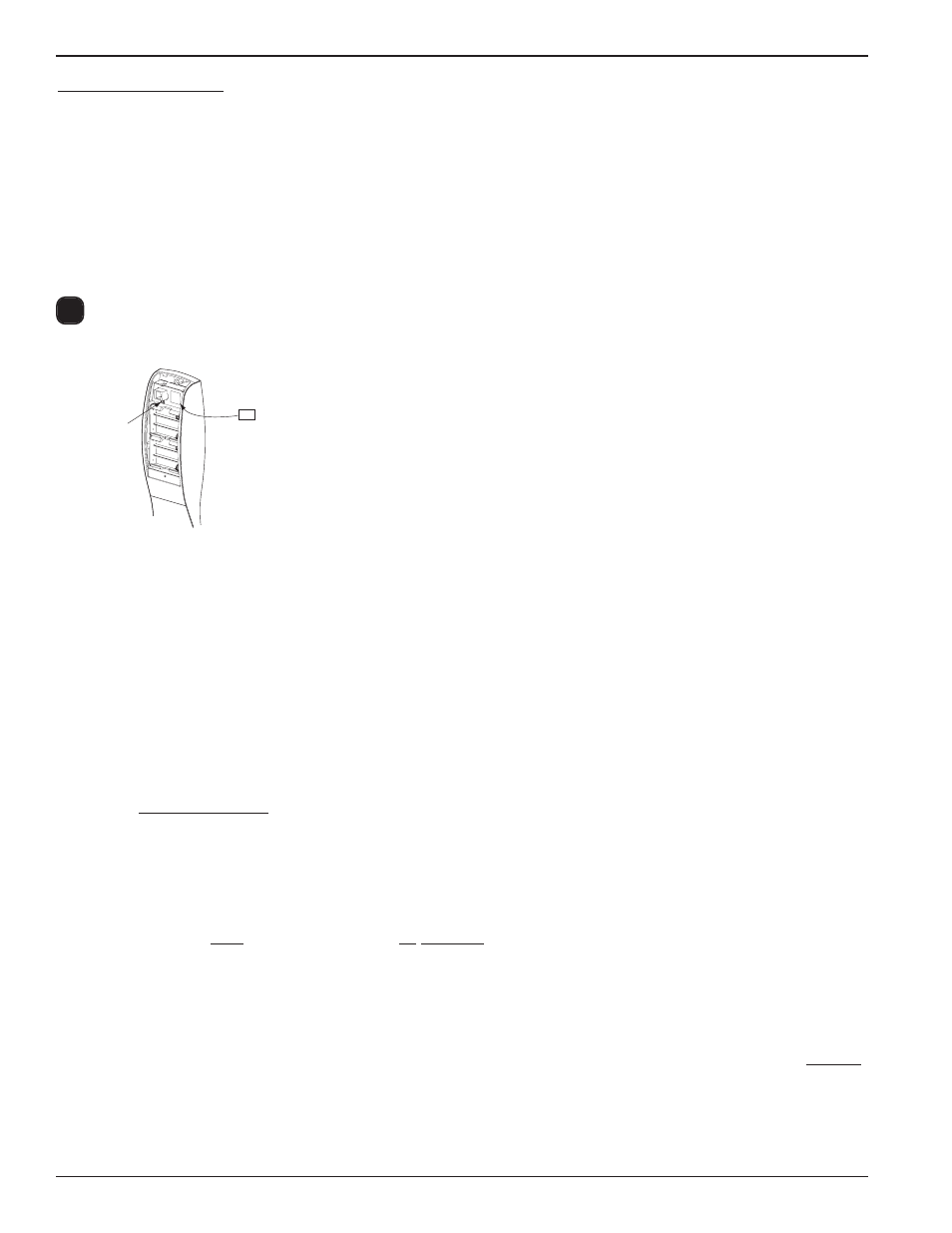

PA
Comm Enable
Push Button
Keypad Programming Instructions for the Profile Series v. G1 Lock
4
To program the lock for the first time (only) the following steps are required.
1. Using SofLink Plus software, Hotsync door information to PDA.
2. On PDA - select "Imp/Exp"
“Do NOT click OK at this point”
3. Wake up the G1-PA or G1-TA lock by presenting an HID Credential (or by
depressing an RF Fob).
4. Within a couple of seconds, press and hold the PA controller CommEnable
push button (below batteries) for 2 seconds, then release the button.
5. On the PDA, click “OK”.
6. If there was an error, check connections and repeat process starting at Step 2.
Note: *The Card will NOT actuate the lock for 45 seconds from the start of
the downloading process. After this time expires, the card will function as
defined by its User Type.
Lock Response: Audible beep
