22. Control Circuit Breakers
22
A-10638

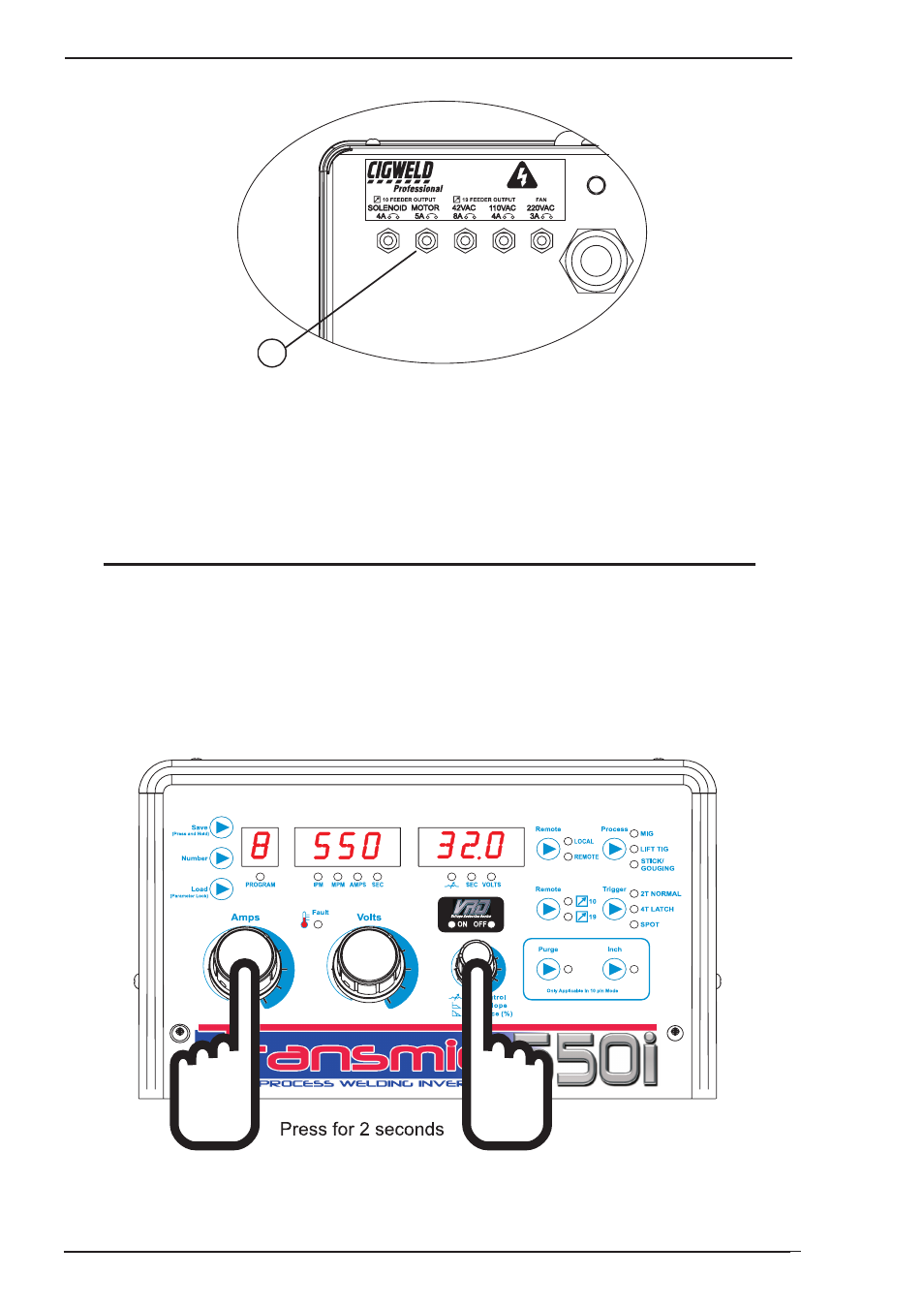

Figure 3-3: Circuit Breakers
These Circuit Breakers protects the unit from electrical faults.
The SOLENOID 4A and MOTOR 5A circuit breakers are for Wirefeeders connected to the 10 pin control
socket. The 42VAC 8A and 110VAC 4A circuit breakers are for Wirefeeders connected to the 19 pin control
socket. The Fan 3A circuit breaker protects the fan circuit in the event of a fault.
NOTE
If a circuit breaker trips, a short cooling period must be allowed before an attempt is made to reset
the unit by pressing the circuit breaker reset button. In the event that the circuit breaker will not
reset have an Accredited Cigweld Service provider investigate the fault.
23. Restore Factory Default Settings
The Transmig 350i, 450i and 550i can have Factory Default Settings Restored .This function is accessed
by pressing the AMPS and INDUCTANCE knobs at the same time for two seconds (2s). The VOLTS and
AMPS led's will flash 3 times to indicate a Factory Reset has been completed.
A-10973
Figure 3-4: Restore Factory Default Settings
