19
Gnd.
1 2 3 4 5 6 7 8
2 1
5 4 3
8 7 6
5k Ohms
Front view of 8-Socket Receptacle
4.0 OPERATOR CONTROLS
4.01 ArcMaster 200 ACDC Controls

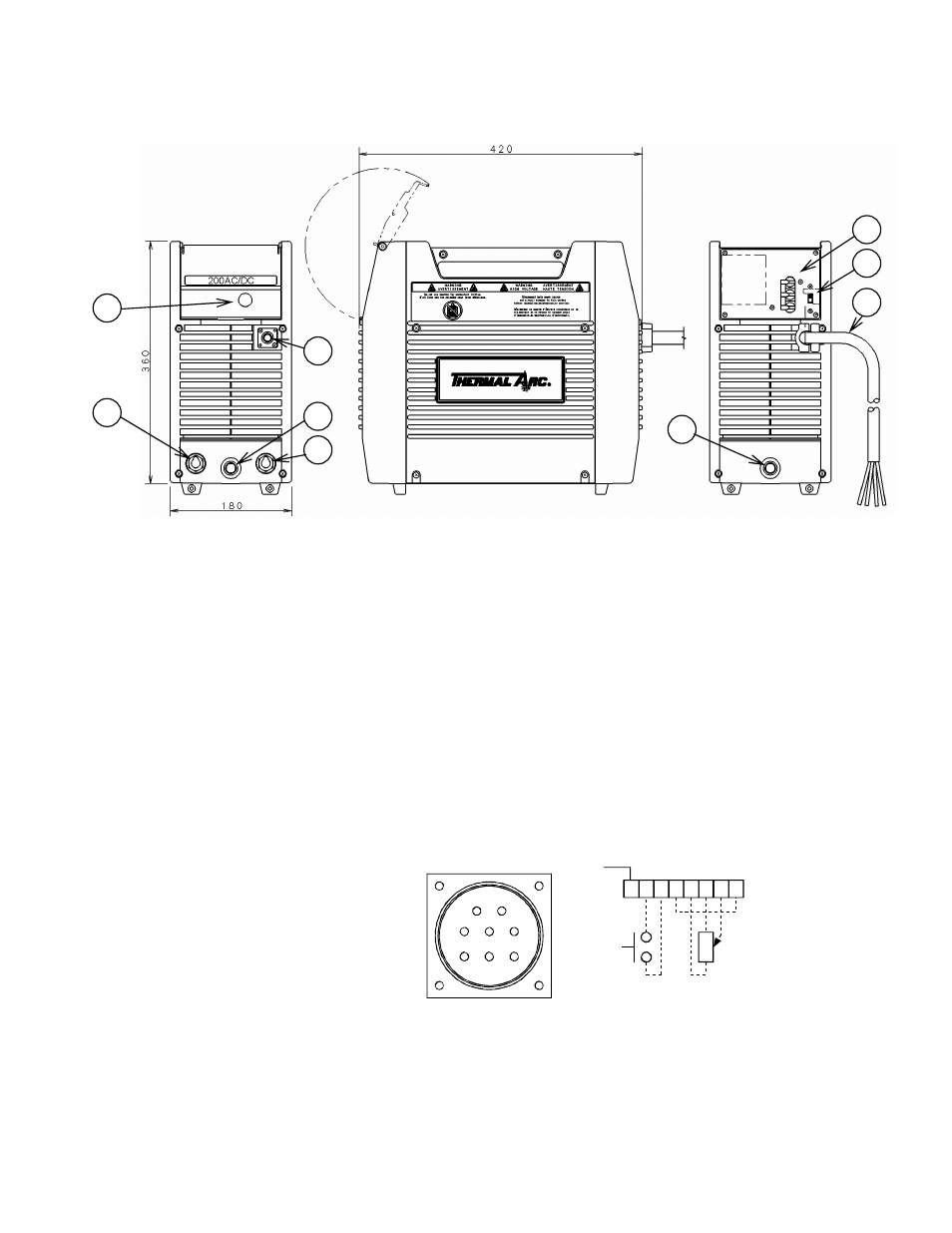

Figure 4. ArcMaster 200 ACDC Power Source
1 Control Knob
This control sets the selected weld parameter, rotating it clockwise increases the parameter that is
indicated on the digital meter. Pushing the knob inward displays the actual welding voltage.
2 Remote Control Socket
The 8 pin Remote Control Socket is used to connect remote current control devices to the welding
Power Source. To make connections, align keyway, insert plug, and rotate threaded collar fully
clockwise.
1
3
2
5
4
9
6
8
7
