Manual 0-2478 17 INSTALLATION PROCEDURES
for that system will be normally closed (NC). The sys-
tem that is turned ON controls the OK-To-Move signal to
the cutting equipment.
A-00718
OK-To-Move
Contact Closure
(NC)
J6-13 or
J29-12
System #1
Remote Control
OK-To-Move
Contact Closure
(NC)
System #2
Remote Control
Cutting Equipment
Controls J6-16 or
J29-14
J6-16 or
J29-14
J6-13 or
J29-12

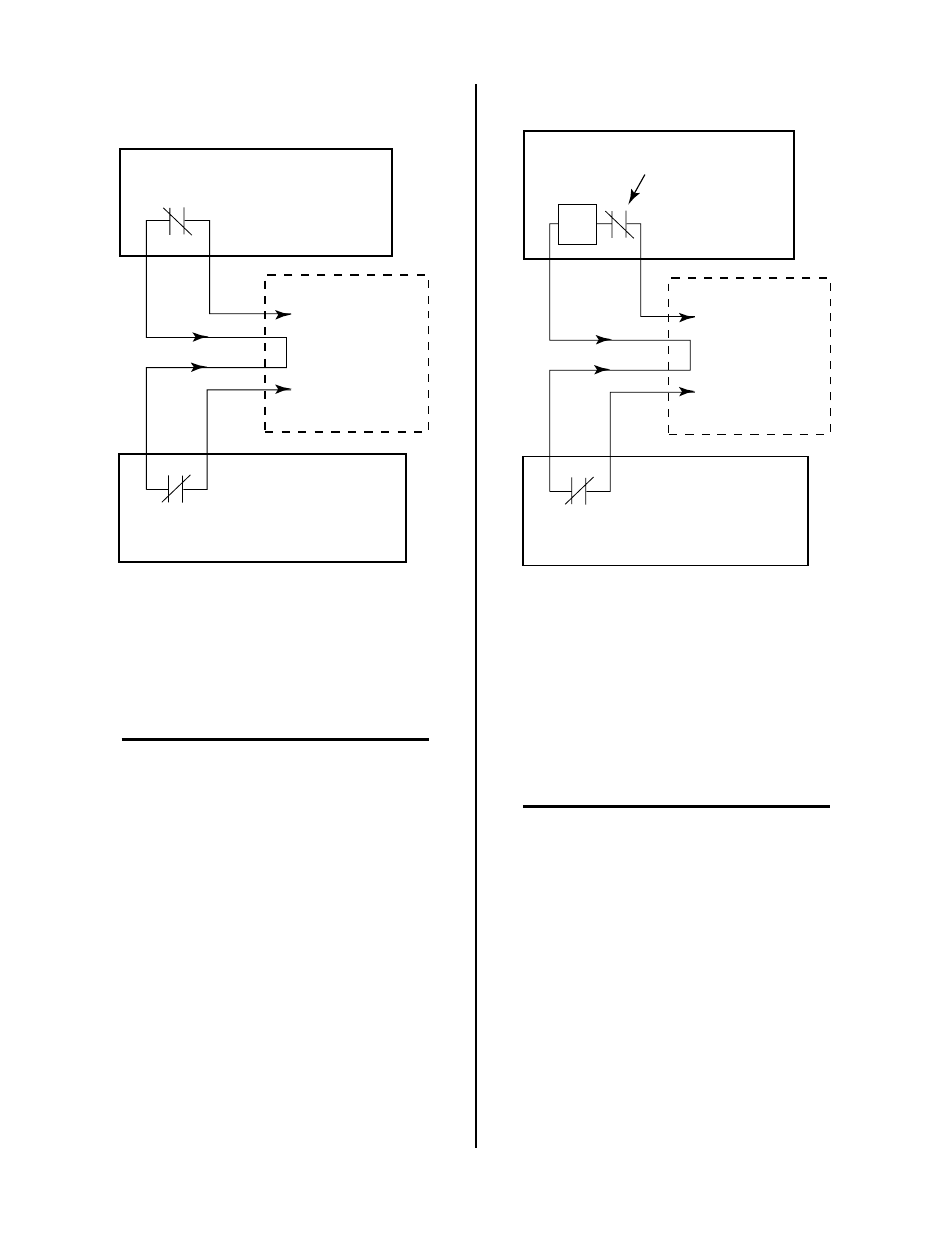

Figur 3-14 Wiring For Two Or More Sytems Using
Contact Closure
Using 24 VAC Signal
Connect the OK-To-Move contacts in one Remote Con-
trol for contacts and the second unit for 24 VAC.
NOTE
Do Not set both Remote Controls for 24VAC op-
eration as the signals may be out of phase and can-
cel each other.
The Plasma power supply that is set for 24 VAC signal
must have power applied all the time. If the the unit is
not to be used then one of the following should be done:
• PLASMA ENABLE on the front panel of the Re-
mote Control should be set to OFF
-or-
• Station Select (CNC Input) signal switched OFF
A-00719
OK-To-Move
Contact Closure
(NC)
J6-13 or
J29-12
System #1
Remote Control
OK-To-Move
Contact Closure
(NC)
System #2
Remote Control
Cutting Equipment
Controls J6-16 or
J29-14
J6-16 or
J29-14
J6-13 or
J29-12
24
VAC
Figur 3-15 Wiring For Two Or More Sytems Using
24 VAC Signal
Using External AC or DC Voltage
An AC or DC voltage up to115 volts can be used for those
cutting systems that require an external AC or DC volt-
age.
NOTE
Do Not exceed 115 volts, AC or DC.
For systems using a single plasma power supply connect
the Remote Control OK-To-Move jumper for contacts.
Connect the external voltage between the cutting equip-
ment and one side of the contact closure.
