Manual 0-2478 15 INSTALLATION PROCEDURES
set for closed contact which means that no con-
nection equals standoff active and normal current.
It may be set so that an open connection activates
the CSD function.
Activate CNC
Function with:
CSD
SW1-1
Station Select
SW1-2
Open Contact ON OFF*
Closed Contact OFF* ON
* = Factory Setting
SW1
CNC Station Select/
CSD Contact Selection
Remote Control
PC Board Assembly
A-00677
2 1
ON

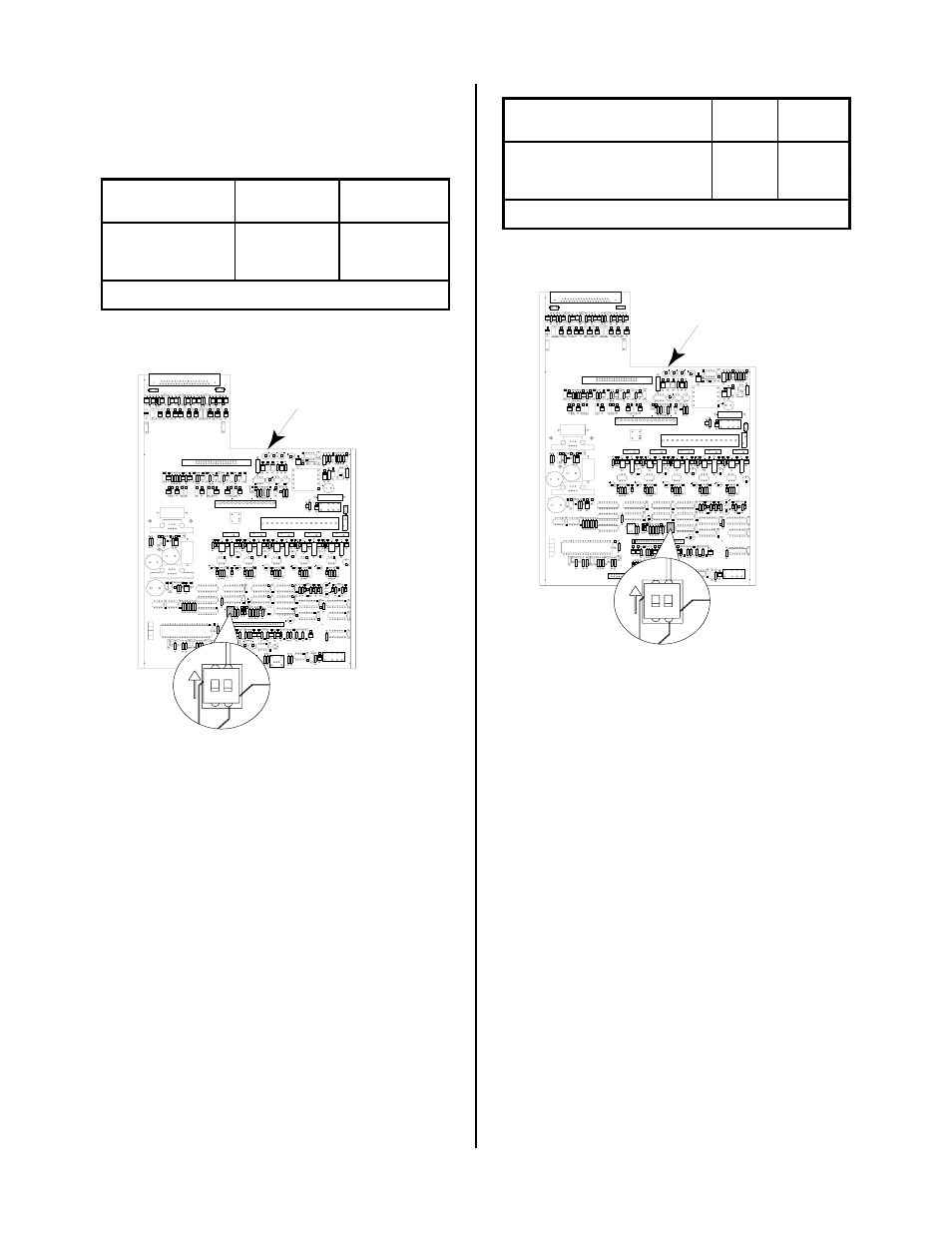

Figure 3-9 Switch SW1 Location
B. Switch SW2 Selections
OK-To-Move Activation Switch (SW2) - The OK-
To-Move signal may be set to activate either at pilot
start or arc transfer.
If the application requires starting the torch off the
edge of the workpiece this selection should be set
to activate at pilot start.
O K-To-Move Activation SW 2-1 SW 2-2
Activate at Pilot Start O N O N
Activate at Arc Transfer O FF * O FF *
* = Factory Setting
SW2
OK-To-Move
Activation Selection
Remote Control
PC Board Assembly
A-00678
2 1
ON
Figure 3-10 Switch SW2 Location
C. OK-To-Move Jumper Selections
The OK-To-Move signal may be selected by either a con-
tact closure or 24 VAC switched through the contact. The
Remote Control is factory-set for dry contacts. The pur-
pose of selecting 24 VAC is to drive a relay coil whose
current must not exceed 150 ma or solid state relays in
cutting machine controllers.
