Tweco RC6010 - Manual (Page 17)

Manual 0-2478 13 INSTALLATION PROCEDURES
TO REMOTE CONTROL
TO CONTROL
MODULE (J11)
J23
A-00808
Cable Connector To
Control Module
Remote Control Panel
J27
Cable Connector To Optional
Remote Control

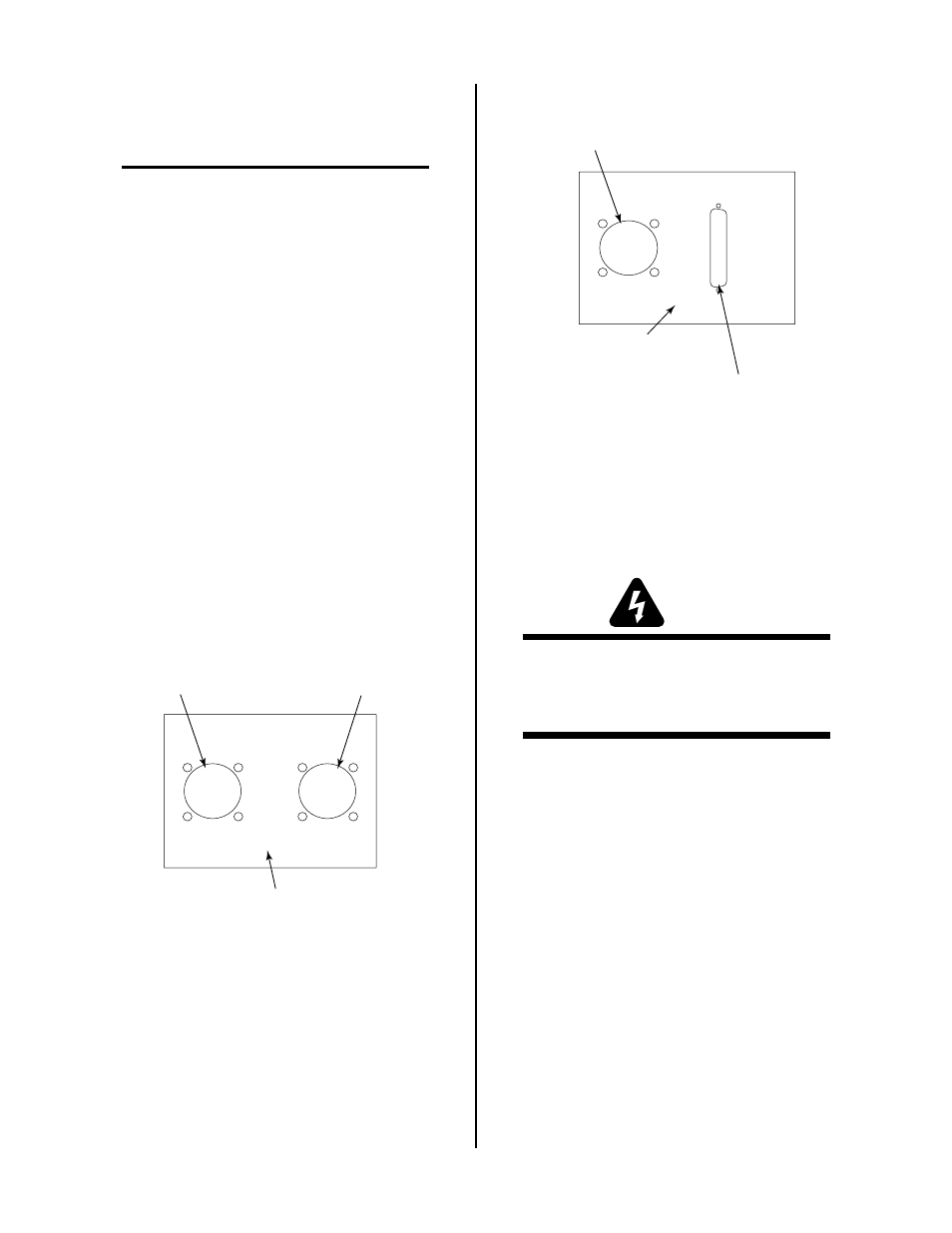

Figure 3-6 Power Base Unit Remote Output
Accessory For RC6010 Remote
Systems that already have the proper remote output ac-
cessory installed in the rear panel of the Power Base Unit
for the application proceed to the next Section 3.07.
WARNING
Disconnect primary power at the source before as-
sembling or disassembling stacked modules, indi-
vidual modules, torch parts, or torch and leads as-
semblies.
C. Removing Side Panel
The right side of the Power Base Unit must be removed
to install the remote output assembly.
1. Using a phillips head screwdriver remove the eight
screws securing the right side panel to the Power Base
Unit. The two screws in the slotted holes need only
be loosened for the panel to be removed.
3.06 Output Connector Installation
With TD-750 Systems
NOTE
The instructions in this Sub-Section are for TD-
750 Systems ordered without the Remote Control.
If the Remote Control was ordered as part of a sys-
tem then the correct output connector was installed
at the factory. Proceed to the next Sub-Section.
This Sub-Section describes the two remote outputs that
are available with the TD-750 Power Base Unit. Depend-
ing on the remote control option to be used determines
the type of output connections that must be available at
the rear of the Power Base Unit.
The remote controls and connections available are as fol-
lows:
• Remote Control RC6045 or Power Supply CNC
Cable (refer to paragraph 'A' below)
• Remote Control RC6010 (refer to paragraph 'B' be-
low)
A. Used With RC6045 or CNC Cable
The output at the rear of the Power Base Unit has two
output connectors as shown in Figure 3-5. This out-
put is factory installed and is used when the RC6045
Remote Control or connections to CNC equipment is
required.
A-00634
Cable Connector To
Remote Control/CNC
Cable Connector To
Control Module
Remote Control Panel
TO CONTROL
MODULE (J11)
TO REMOTE
CONTROL / CNC
J23 J25
Figure 3-5 Power Base Unit Remote Output
Accessory For RC6045 or CNC Cable
B. Used With RC6010 Remote Control
The output at the rear of the Power Base Unit has two
output connectors as shown in Figure 3-6. This out-
put is factory installed and is used with the RC6010
Remote Control.
