INSTALLATION PROCEDURES

14

Manual 0-2478

A-00675

Right Side Panel

Screws, External Star Washers

and Flat Washers (8-Places)

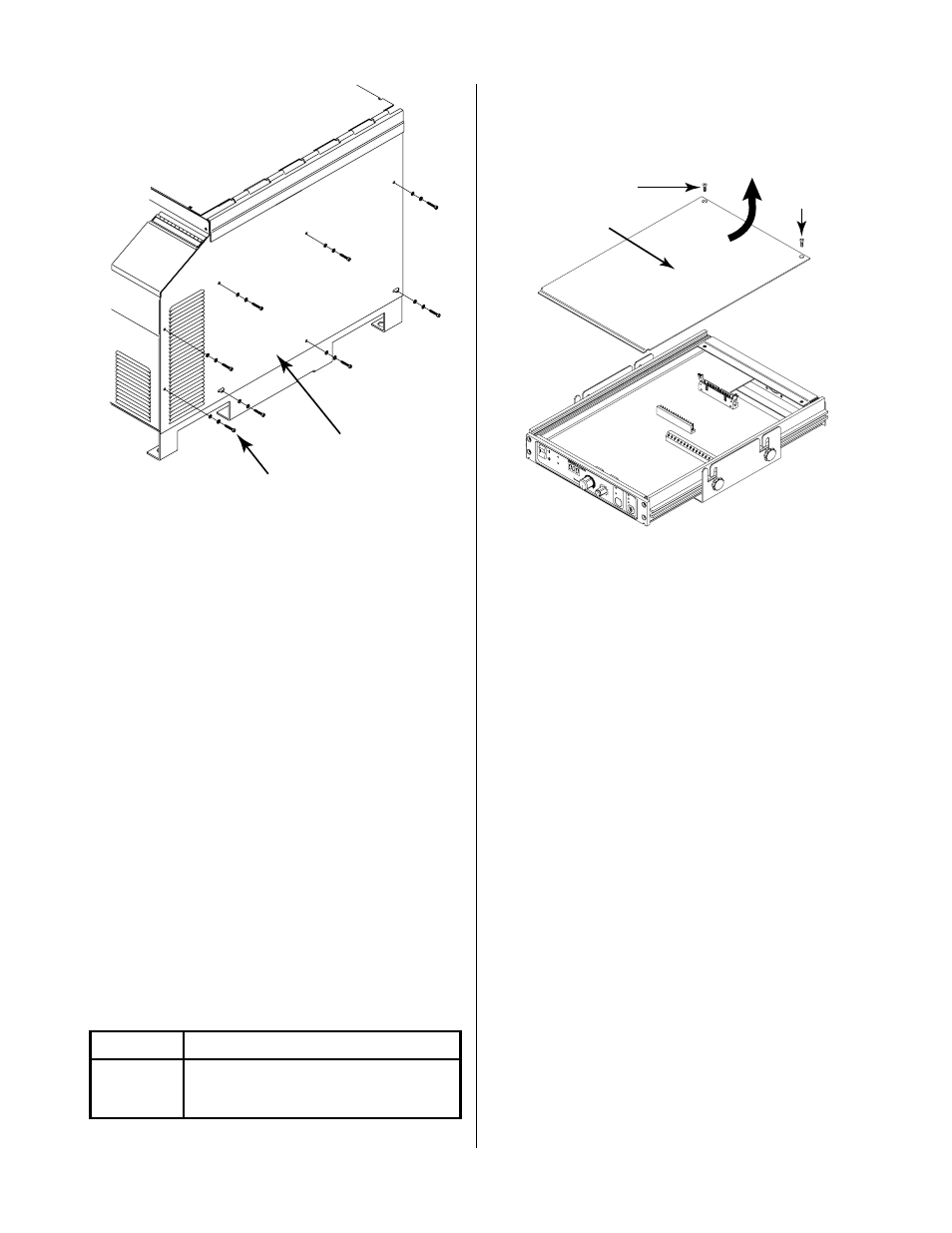

Figure 3-7 Screw Removal Details

2. Slide the right side panel forward and down to

disengage the two screws in the slotted holes.

3. Pull the right side panel from the Power Base Unit.

D. Installation Of Remote Output

Install the remote output assembly per the instructions
supplied with the Remote Output Accessory Kit.

3.07 Output Connector Installation

With Merlin 3000 and 6000
Systems

The Merlin Systems come standard with the the remote
output connector. There are no internal Power Supply
parts to be installed.

3.08 Internal Switch and Jumper

Selections

A. Switch Selections

The Remote Control Assembly has two internal switches
that have the following functions:

Switch

Function

SW1

CNC Station Select and CSD Select

SW2

OK-To-Move Activation

To check or change the switch selections use the follow-
ing procedure:

1. Remove the two cover mounting screws on the top of

the Remote Control Accessory.

OUTPUT AMPS

PLASMA
ENABLE

ON

START

REMOTE POWER SUPPLY CONTROL

SD

(%)

25

75

100

50

TRAVEL
SPEED

125+

IPM

0-125
IPM

RUN

PURGE

SET

A-00676

Screw

Screw

Cover

Figure 3-8 Cover Removal

2. Remove the enclosure cover by lifting straight up at

the rear of the cover and pulling it towards the rear of
the unit. The front edge of the cover fits under a lip
on the front panel assembly.

3. Identify internal switches SW1 and SW2 and confirm

that each switch is set to the desired setting as fol-
lows:

a. Switch SW1 Selections

CNC Station Select/CSD Contact Switch (SW1) -
Selects normally open (NO) or normally closed
(NC) contacts for corner slowdown and station
select.

Station Select selection is an input normally used
when there are multiple plasma systems on a
single cutting machine. It allows the disabling of
one or more plasma cutting systems using a switch
or relay instead of turning OFF the system power.
The selection is factory set to activate with an open
contact but it can be set so a closed connection is
required to activate.

Corner Slowdown (CSD) selection is a signal from
the cutting machine controller used to deactive the
standoff control during speed changes or when
arc voltage changes would cause incorrect stand-
off distance. It may be used to reduce the cutting
current as the speed is reduced when cutting cor-
ners and sharp radiuses. The selection is factory
