INTRODUCTION

2-6

Manual 0-4640

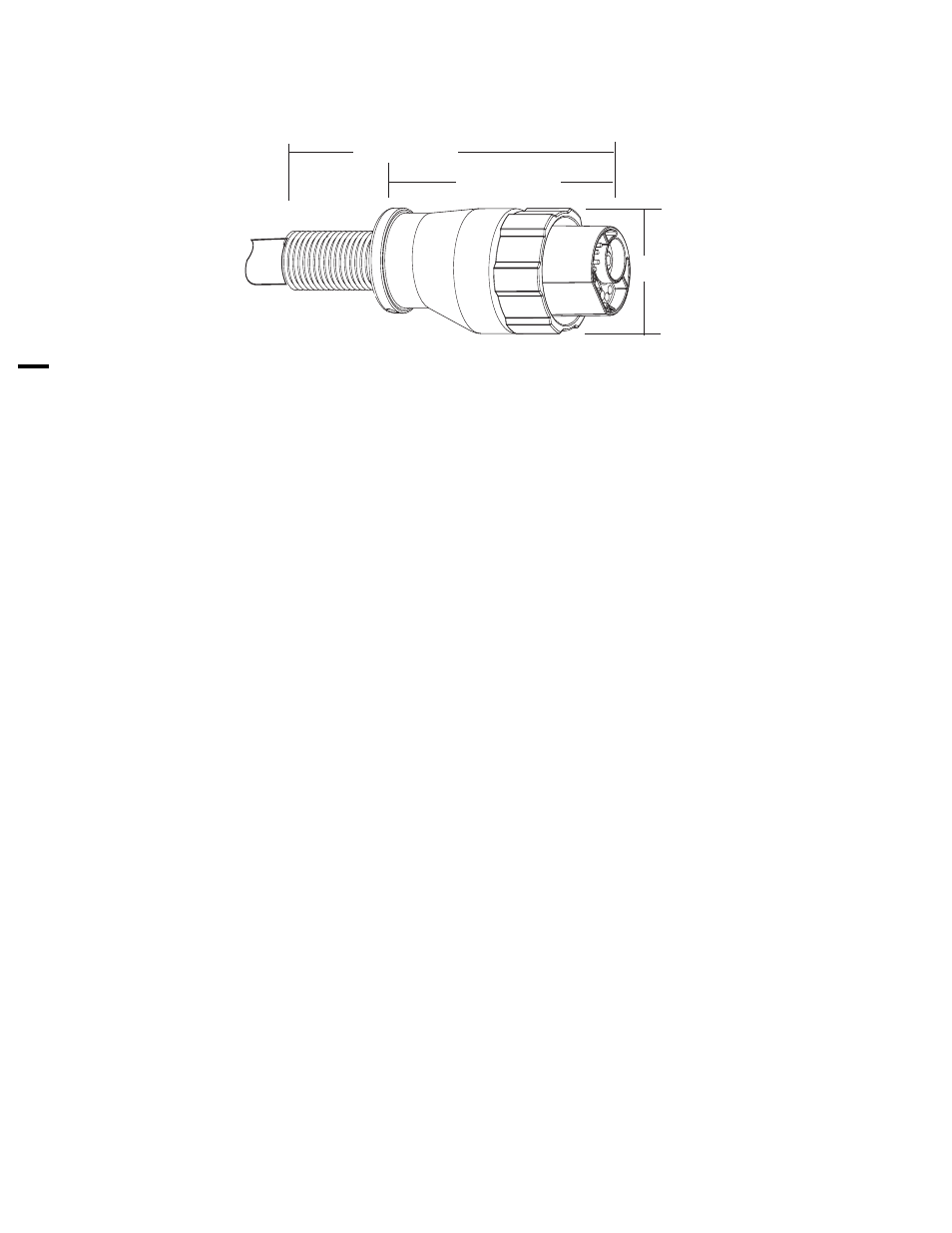

B. Torch Connector Dimensions

8.5" / 216 mm

5.375" / 137 mm

1.9" / 50 mm

Art # A-04056

C. Torch Parts

Start Cartridge, Electrode, Tip, Shield Cup Body, Shield Cap

D. Parts - In - Place (PIP)

Torch Head has built - in switch

12 vdc circuit rating

E. Direct Contact Hazard

For exposed tip the recommended standoff is 3/16 inches / 4.7 mm.

2.07 Torch Options and Accessories

These items can adapt a standard system to a particular application or further enhance performance (refer to Section 6
for ordering information).

• Spare Parts Kits - Various kits containing replacement consumable torch parts.

• Pinion Assembly (for machine torches)

• Leather Leads Covers
