5.11 Left Side Internal Parts Replacement
A. Fuse (F1) Replacement
1. Remove the power supply cover,
2. Locate the internal fuse on the left side of the center chassis.
3. Replace the fuse. A replacement fuse is located inside the power supply. Refer to Section 6, Parts Lists, for replacement
fuse catalog number.
4. Reinstall the power supply cover by reversing the steps in paragraph "B" above.

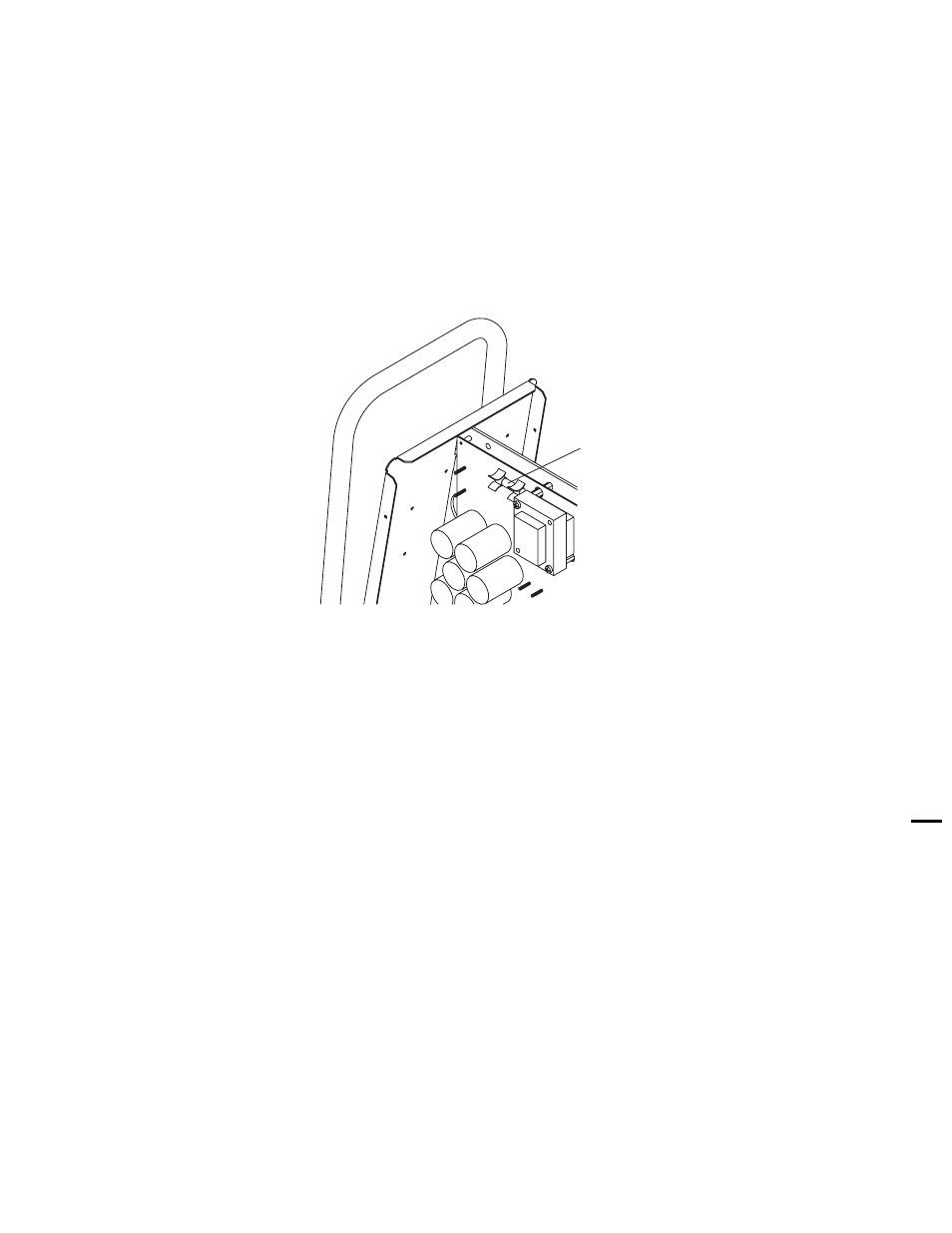

Art # A-03002
Fuse Location
Internal Fuse Location
B. Work Cable Replacement
1. Remove the power supply cover,
2. Disconnect the Work Cable from the WORK terminal on the Main Power PC Board, located on the left side of the unit.
3. Squeeze the top and bottom of the Work Cable Strain Relief and remove from the Front Panel.
4. Remove Work Cable from the unit.
5. Install the replacement Work Cable by reversing the above steps.
