SERVICE 5-44 Manual 0-4640
5
8. Install module as follows:
a. Put the replacement module in position, and secure with the replacement screws. Ensure that the washers
are under the heads of the screws.
b. Torque the screws to 35 in-lb / 3.95 Nm.
CAUTION
Failure to torque properly will cause component damage.

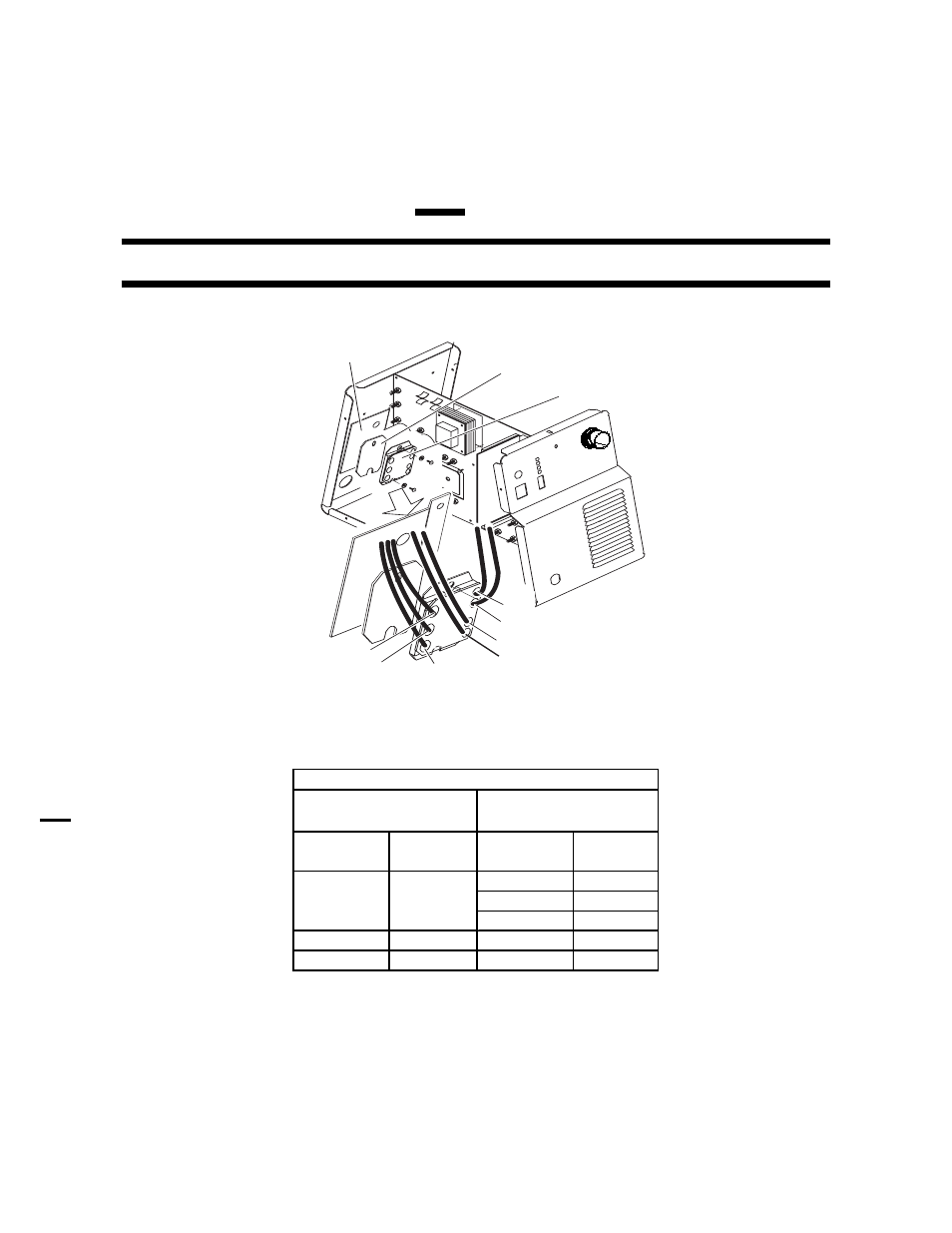

Art # A-03908
Input Diode
Input Diode
Mounting Plate
Thermal Pad
E14
E16
E8
E6
E18 E13
E5
9. Reconnect the wiring per the chart.
E5 E1
E13 E2
E18 E3
E6, E8 E11 E6, E8 E11
E14, E16 E12 E14, E16 E12
CutMaster 51 Input Diode Wiring Connections
208/230V
Power Supplies
400V, 460V
Power Supplies
E5, E13, E18 E2
10. Re-connect primary input power, and test the unit for proper operation.
11. When all tests are completed, re-install the power supply cover.
