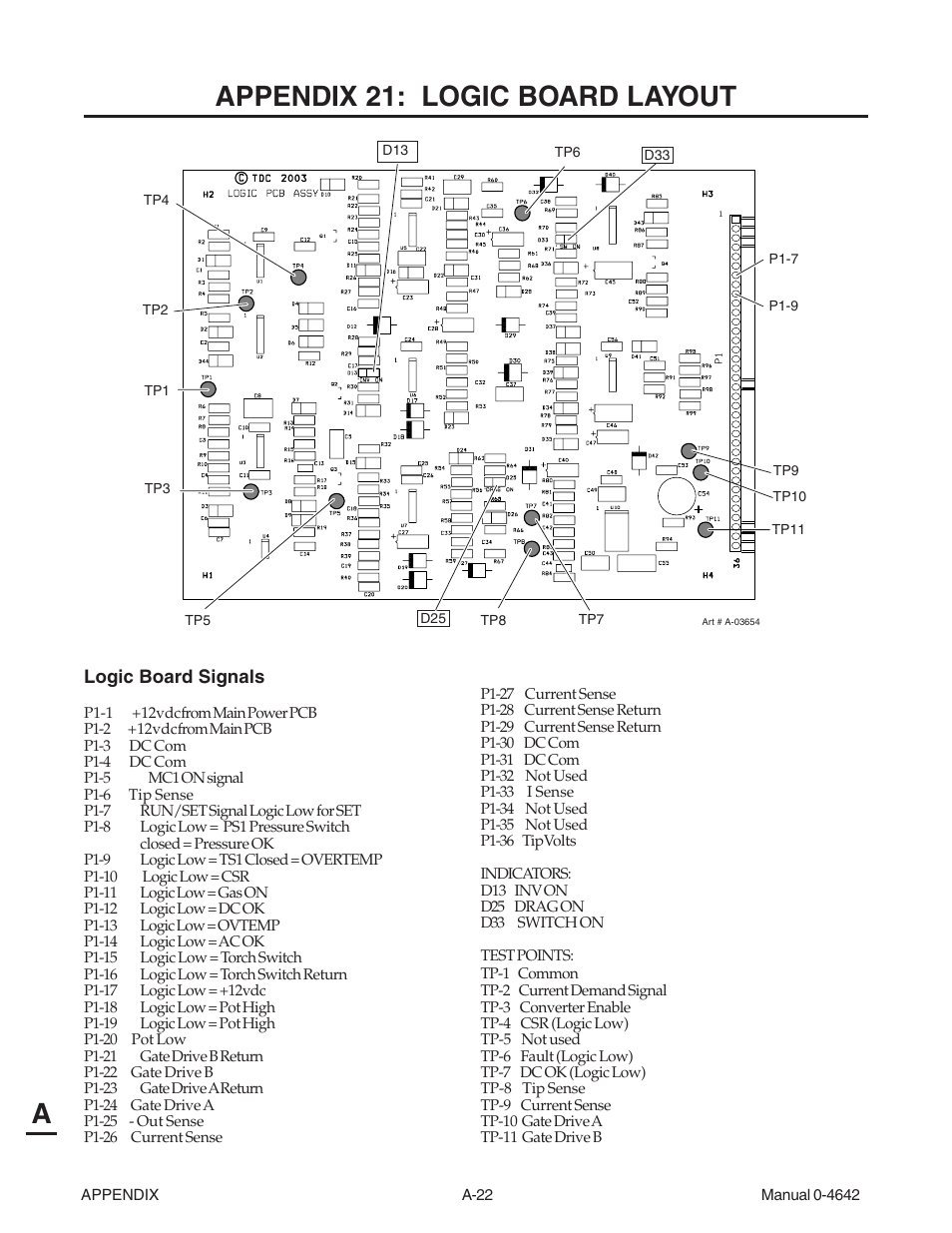

Appendix 21: logic board layout, Aappendix 21: logic board layout – Tweco CutMaster 101 with SL100SV User Manual
Page 150
