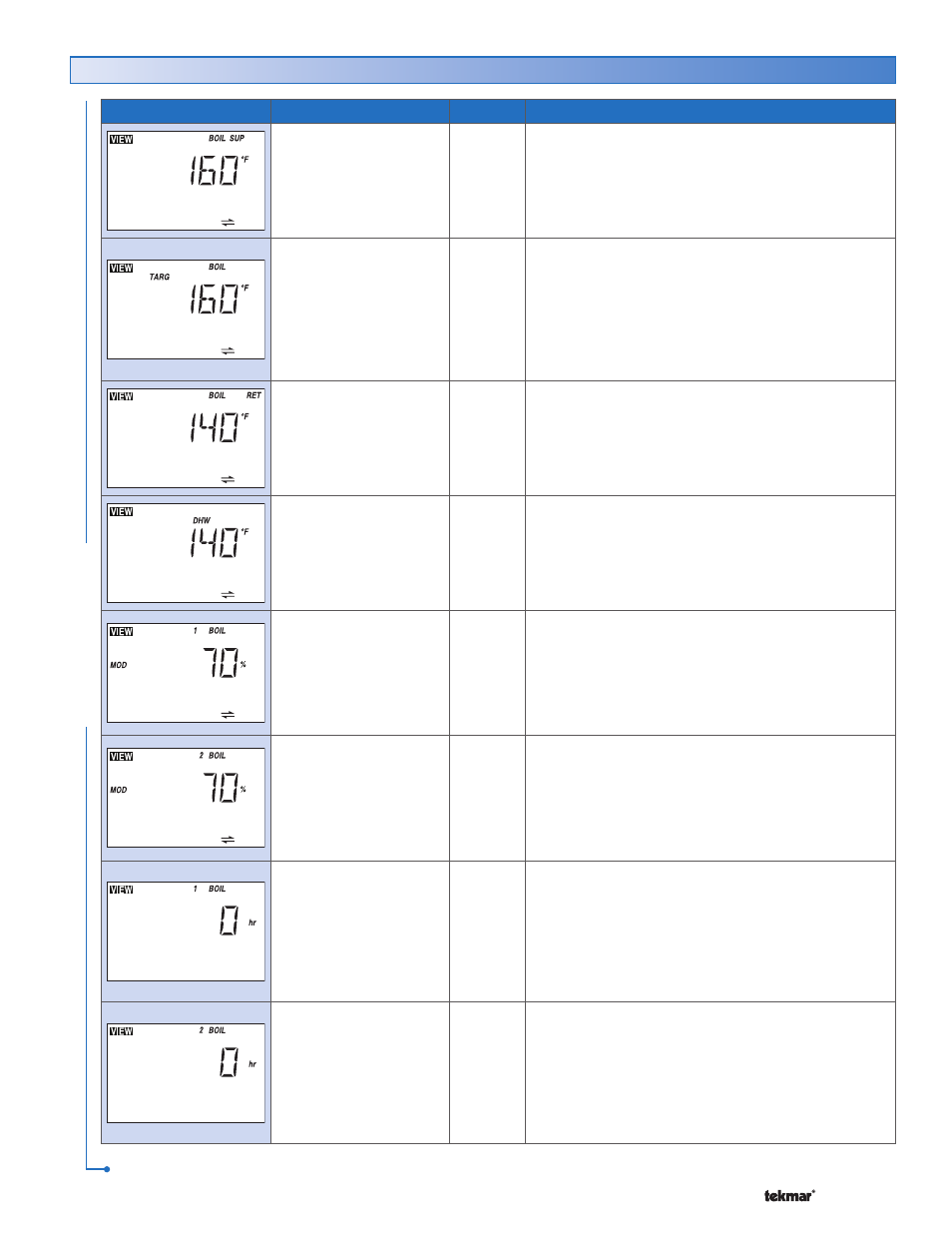

VIEW MENU
Item Field Range Access Description
-31 to 266°F
(-35.0 to 130.0°C)
InS
Ad
BOILER SUPPLY SECTION B
Current boiler supply water temperature as measured
by the boiler sensor.
Note: This item is only available when the Boiler
Sensor Sup / Ret DIP switch is set to Sup.
– – –, 35 to 230°F
(– – –, 1.5 to 110.0°C)
Ad
BOILER TARGET SECTION C
The boiler target is the temperature the control
is currently trying to maintain at the boiler supply
sensor. “– – –” is displayed when no heat is required
for boiler zones.
Note: This item is only available when the Boiler
Sensor Sup / Ret DIP switch is set to Sup.
-31 to 266°F
(-35.0 to 130.0°C)
InS
Ad
BOILER RETURN SECTION E
Current boiler return water temperature as measured
by the boiler sensor.
Note: This item is only available when the Boiler
Sensor Sup / Ret DIP switch is set to Ret.
-31 to 266°F
(-35.0 to 130.0°C)
InS
Ad
DHW SECTION H
Current DHW tank temperature as measured by the
DHW sensor.
Note: This item is only available when the Off / DHW
Sensor DIP Switch is set to DHW sensor.
0 to 100% Ad
BOILER 1 MODULATION SECTION C
Current percent modulation of the Boiler 1 burner.
Note: This item is only available when the Boiler
On-Off / Mod DIP switch is set to Mod, the Boiler
Sensor Sup / Ret DIP switch is set to Sup, and
Boiler 1 is set to Auto.
0 to 100% Ad
BOILER 2 MODULATION SECTION C
Current percent modulation of the Boiler 2 burner.
Note: This item is only available when the Boiler
On-Off / Mod DIP switch is set to Mod, the Boiler
Sensor Sup / Ret DIP switch is set to Sup and Boiler 2
is set to Auto.
0 to 999 hr
InS
Ad
BOILER 1
The total running time of Boiler 1 since this item was
last cleared. To clear this item, press the Up and Down
buttons simultaneously while viewing this item.
Note: This item is only available when the Boiler
Sensor Sup / Ret DIP switch is set to Sup and Boiler 1
is set to Auto.
0 to 999 hr
InS
Ad
BOILER 2
The total running time of Boiler 2 since this item was
last cleared. To clear this item, press the Up and Down
buttons simultaneously while viewing this item.
Note: This item is only available when the Boiler
Sensor Sup / Ret DIP switch is set to Sup and Boiler 2
is set to Auto.
View Menu (2 of 2)
After the last item, the control returns to the first item in the menu.
