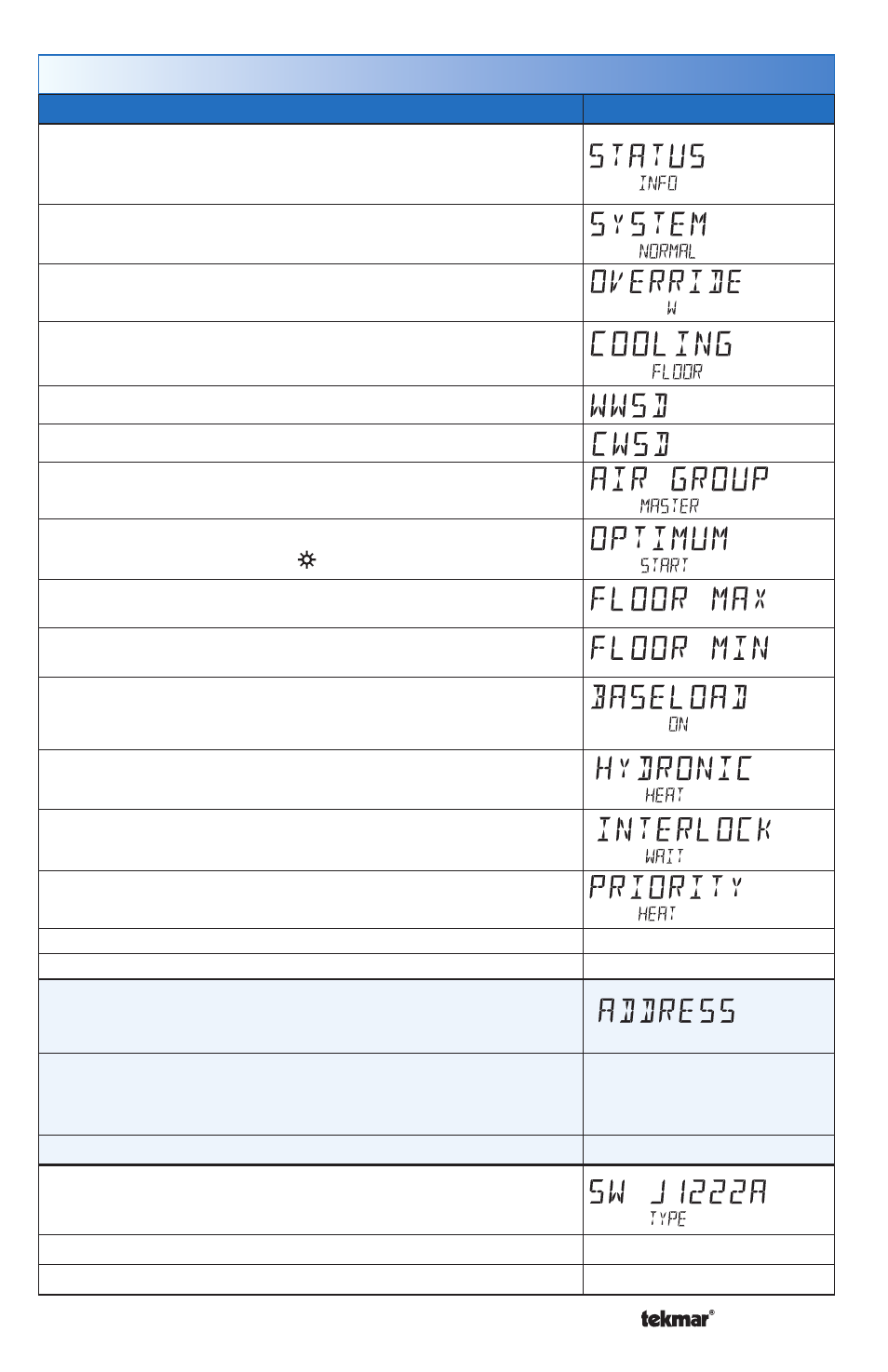

Setting Display
STATUS INFO
Toggles between “Status Info” and the current status including
any overrides from the tekmarNet
® system control.
System Normal = Thermostat operating normally.
Override W = The tekmarNet ® system control is either
forcing the W relay on or off.
Cooling Floor = Floor cooling is in effect.
WWSD = Warm Weather Shut Down is in effect.
CWSD = Cold Weather Shut Down is in effect.
Air Group Master Cool = The air group master thermo-
stat is cooling.
Optimum Start Heat or Cool = Heating or cooling system
starts early in order to meet setpoint at Event 1 or 3.
Floor Max = The floor has reached its maximum tempera-
ture. Some under heating could occur.
Floor Min = The floor is operating at its minimum tempera-
ture. Some over heating could occur.
Baseload On = Baseload heating is on even though the
room temperature is satisfied. Reduces heat up time when
the sun sets in the evening.
Hydronic Heat Off = The air group master is in cooling
mode and air group member thermostats’ heating is shut off.
Interlock Wait = The thermostat is switching between heating
to cooling or from cooling to heating.
Priority Heat = Air group members are calling for heat. Cooling
is suspended.
Access Level: Installer, User
Range: See Description
Conditions: Always available. Default: System Normal
ADDRESS
The tekmarNet ® address of this thermostat. To manually set
the address, use the up or down arrow buttons.
Access Level: Installer
Range: AUTO, 01 to 24,
b:01 to b:24, 1:01 to 1:24,
2:01 to 2:24, 3:01 to 3:24
Conditions: tekmarNet ® 2 or 4 detected. Default: AUTO
SOFTWARE AND TYPE VERSION
Displays the software version and the tekmar type number.
Access Level: Installer, User, Limited, Secure Range: 553
Conditions: Always available. Default: 553
Toolbox Menu (2 of 3)
