© 2008 D 544 - 07/08 18 of 36
Item Field Range Access Description
LTD, USER,
INST, ADV
Default = USER
SEC
LTD
USER
INST
ADV
ACCESS LEVEL
The access level of the thermostat. The access column
shows which items are visible in each access level.
Note: This item is only available when the Lock /
Unlock DIP switch on the thermostat and the tN4
system control are set to Unlock.
°F, °C
Default = °F
USER
INST
ADV
UNITS SECTION P
Select Fahrenheit or Celsius as the temperature
units.
ON, TMPY, OFF
Default = TMPY
USER
INST
ADV
BACKLIGHT SECTION Q
Select whether the backlight displays permanently,
temporarily, or is off. The temporary backlight lasts
for 30 seconds.
-5.0 to +5.0°F in
0.1°F increments
(-3.0° to +3.0°C in
0.1°C increments)
Default = 0.0°F
ADV
OFFSET SECTION N
Fine tune the current room temperature. Adjustments
are in tenths of a degree.
– – –, -bus#:01,
... bus#:24, DEF
Default = – – –
INST
ADV
COPY SETTINGS
Copy settings from another thermostat to this
thermostat.
1. Select the address of the thermostat to copy from.
Select DEF to load the factory default settings.
2. Wait for 3 seconds and then press the Up and Down
buttons for 1 second.
3. The thermostat will show the percentage of progress.
4. Displays DONE if successful or WARN if only part
of the settings were copied.
1 to 24 ADV
NUMBER OF DEVICES SECTION R
Number of tN4 devices connected to this tN4 bus.
Note: This item is only available when the thermostat
is connected to a tN4 bus.

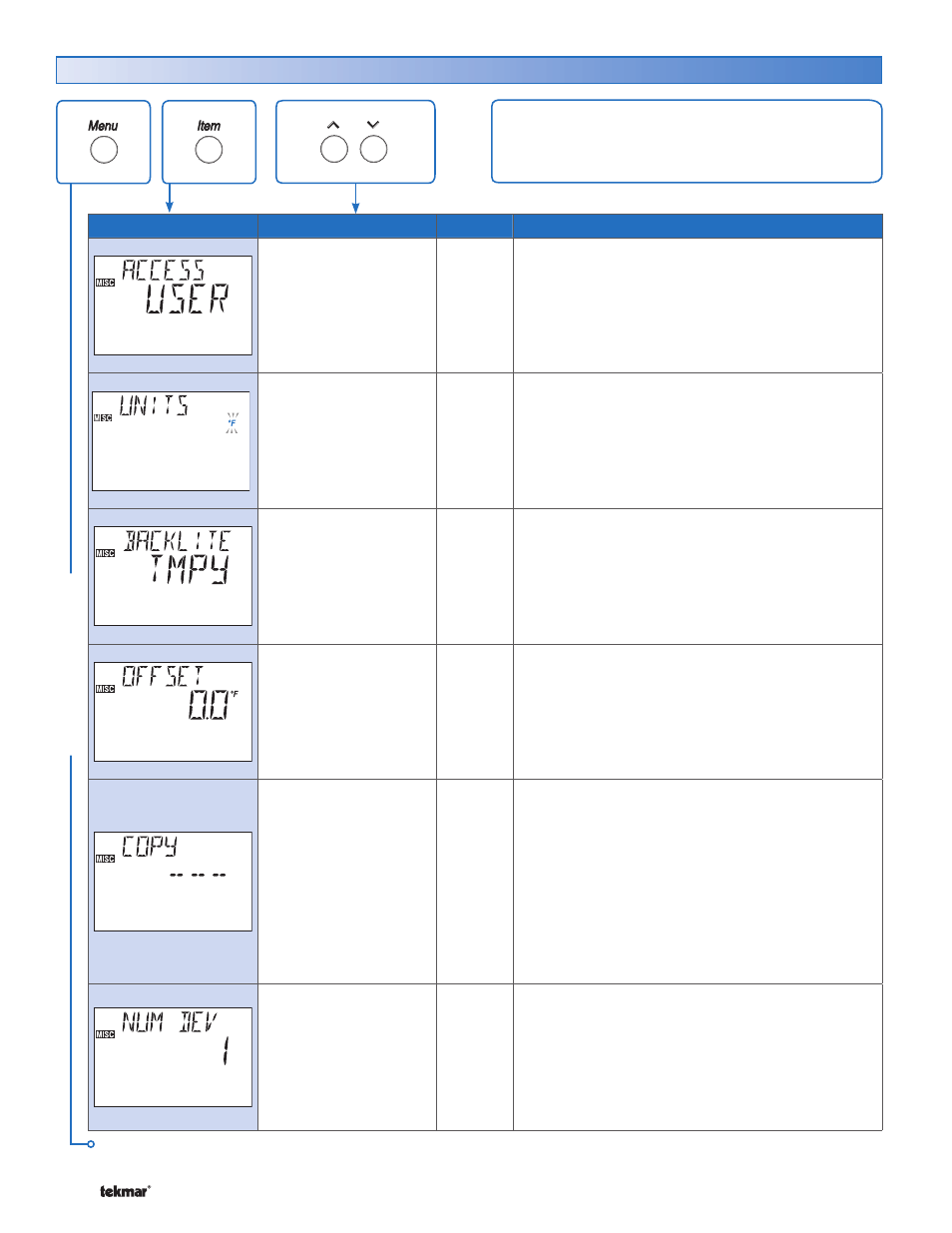

Misc (Miscellaneous) Menu (1 of 2)
The Miscellaneous menu items set display and control
options such as access level and temperature units.
MISC MENU
Continued on next page.
