13 of 36 © 2008 D 544 - 07/08
Item Field Range Access Description
NONE, ZONE,
MST1, MST2,
MST3, MST4,
MBR1, MBR2,
MBR3, MBR4
Default = NONE
USER
INST
ADV
HEATCOOL SCHEDULE SECTION J
If a schedule is not required, select NONE.
If the schedule is only used by this thermostat, select
ZONE.
If the schedule is shared with other thermostats,
select MST1 to MST4.
If the schedule is set on another thermostat, select
MBR1 to MBR4.
Note: This item can be viewed in the USER and
INST access levels but can only be adjusted in the
ADV access level.
24 hr, 5-2,
5-11, 7dAY
Default = 5-11
USER
INST
ADV
SCHEDULE TYPE SECTION J
Select the type of schedule.
Note: This item is only available when the HeatCool
Schedule is set to ZONE or MST1 to MST4.
2 (Occ, UnOcc),
4 (Wake, UnOcc,
Occ, Sleep)
Default = 4
USER
INST
ADV
SCHEDULE MODE SECTION J
Select the number of events per day.
Note: This item is only available when the HeatCool
Schedule is set to ZONE or MST1 to MST4.
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
ALL DAYS OF THE WEEK SECTION J
Select the times for the scheduled events.
Note: This item is only available when the Schedule
Type is set to 24 hr.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
MONDAY THROUGH FRIDAY SECTION J
Select the times for the scheduled events.
Note: This item is only available when the Schedule
Type is set to 5-2 or 5-11.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM

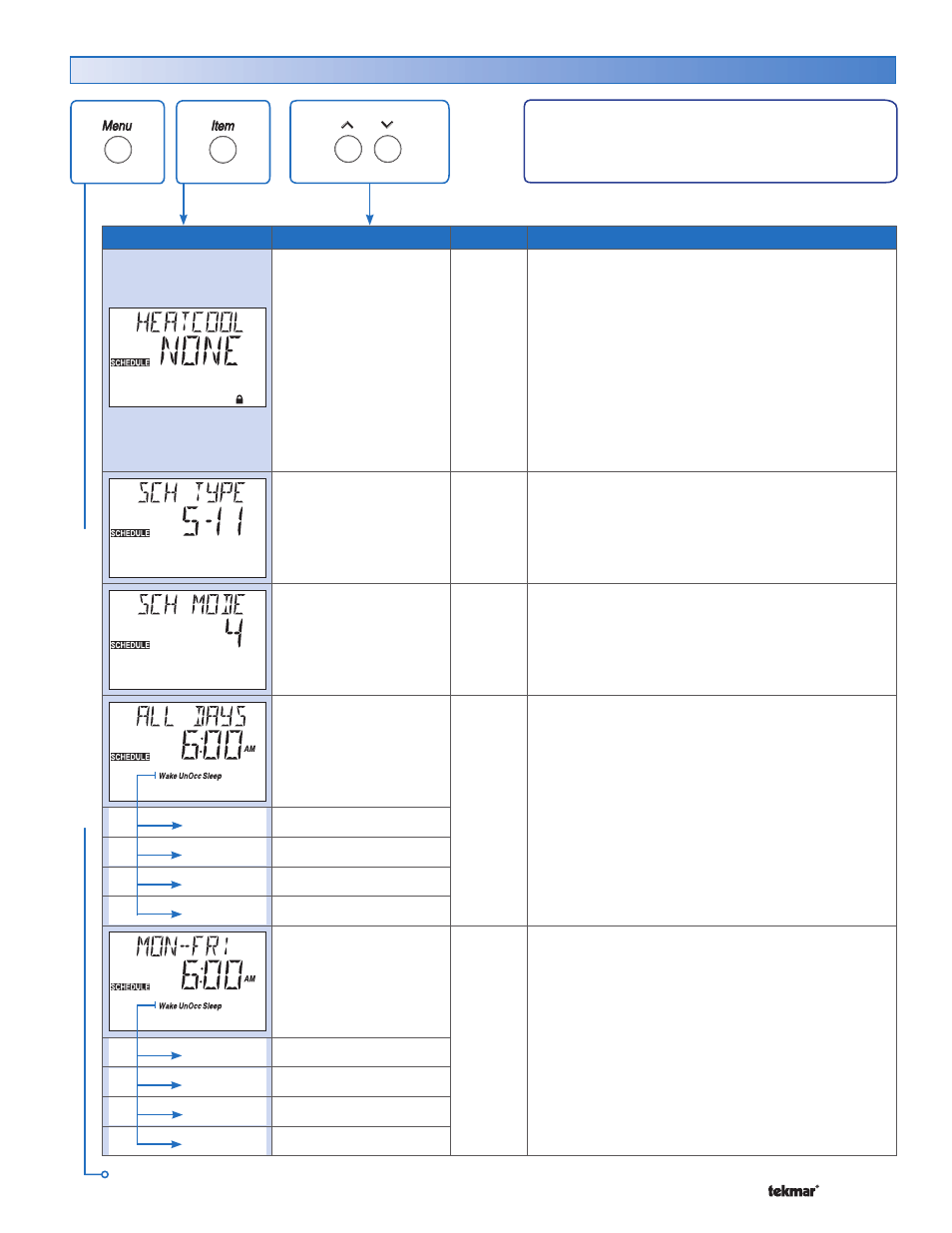

Schedule Menu (1 of 3)
The Schedule menu items set the schedule type, the
number of events per day, and the event times.
Continued on next page.
