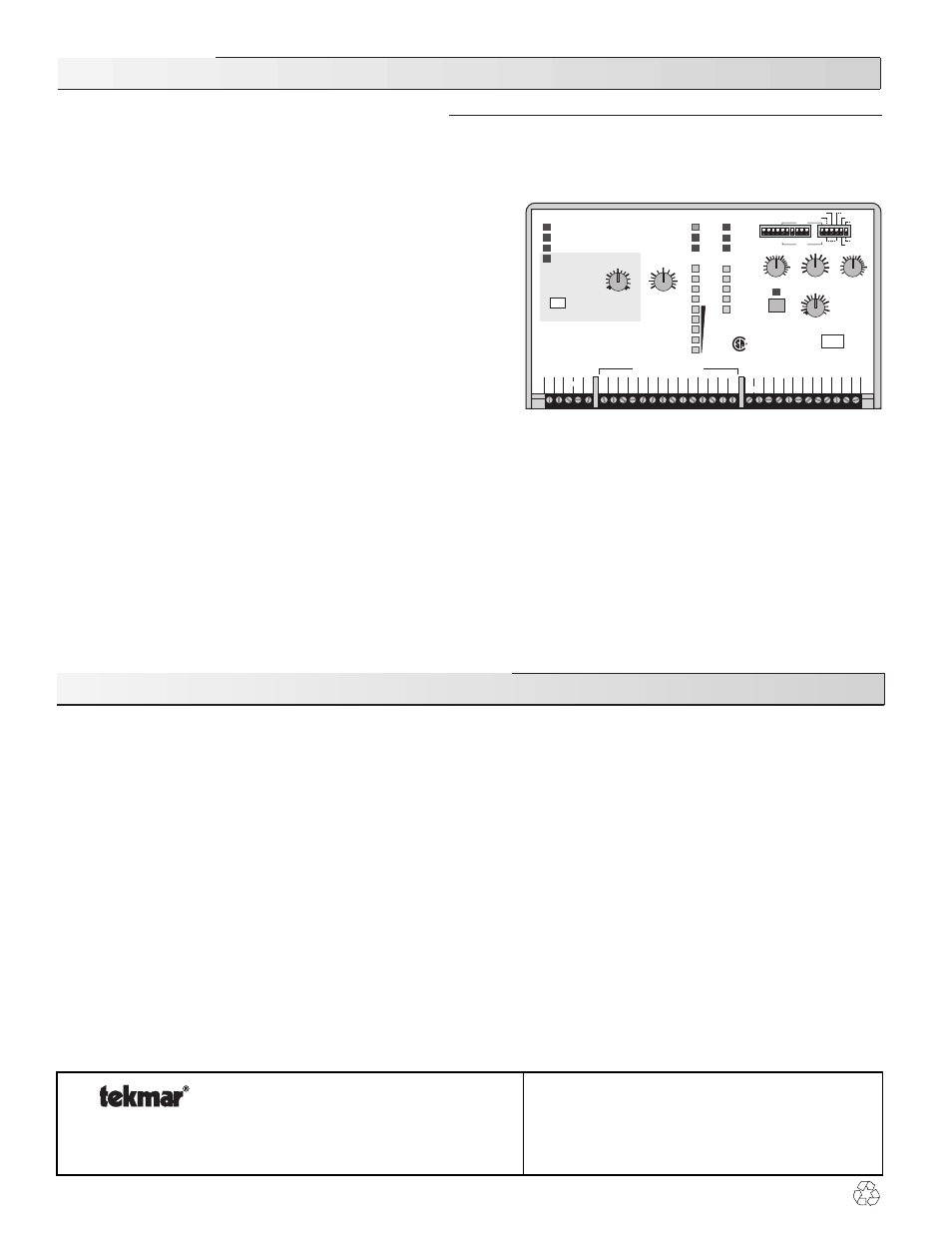

tekmar 371 House Control - Manual (Page 20)

20
House Control 371 Five Zones, DHW, Boiler & Mixing
Literature — A 000, A 371's, I 030, E 021, D 371, D 001, D 054, D 070, D 074
Control — Microprocessor PID control; This is not a safety (limit) control.
Packaged weight — 3.5 lb. (1600 g), Enclosure A, PVC plastic
Dimensions — 6-5/8” H x 7-9/16” W x 2-13/16” D (170 x 193 x 72 mm)
Approvals — CSA NRTL / C, meets ICES & FCC regulations for EMI/RFI.
Ambient conditions — Indoor use only, 32 to 122°F (0 to 50°C), < 90% RH non-con-
densing.
Power supply — 120 V ±10% 50/60 Hz 1500 VA
Variable Pump — 240 V 50/60 Hz 2.4 A 1/6 hp, fuse T2.5 A 250 V
Relays — 120 V (ac) 3.2 A 1/4 hp, pilot duty 240 VA
Demand inputs — Off @ 0 to 5 V (ac), On @ 15 to 120 V 50/60 Hz 0.6 VA
Sensors — NTC thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) ß=3892
included: Outdoor Sensor 070 and two of Universal Sensor 071.
required: RTU 054, 055 or 10K Sensor for each active zone.
(Order separately)
Timer — 24 hour, 1 event / day, 3 minute backup
UnOcc. Duration — 0 to 24 hours
UnOccupied — 40 to 100°F (4 to 38°C)
Heating Curve — 0.2 to 3.6
Max. Supply / Setpoint — 120 to 220°F (49 to 104°C)
Boiler Heating Curve — 0.2 to 3.6
Min. Boiler Supply — Off, 100 to 165°F (Off, 38 to 74°C)
All specifications are subject to change without notice.
Printed in Canada on recycled paper.
Canada on recycle
Product design, software and literature are Copyright © 1996 by:
tekmar Control Systems Ltd. and tekmar Control Systems, Inc.
Technical Data
tekmar Control Systems Ltd., Canada
tekmar Control Systems, Inc., U.S.A.
Head Office:
5100 Silver Star Road
Vernon, B.C. Canada V1 B 3K4
Tel. ( 250 ) 545-7749 Fax. ( 250 ) 545-0650
Control Systems
The warranty applicable to a product is as set out in the statement of warranty
policy (the "Warranty") above, receipt of which is hereby acknowledged. The
liability of tekmar is limited to those obligations identified in the warranty as
obligations of tekmar. The warranty is understood to be in substitution for any
loss, costs or damages for which tekmar might otherwise be liable at law or in
equity and in particular, in lieu of any liability for fundamental breach of
contract.
tekmar disclaims any responsibility for losses, expenses, inconveniences, or
any special, indirect, secondary, incidental or consequential damages arising
from ownership or use of any items subject to any claim hereunder, regardless
of whether such claim is stated in contract, tort or strict product liability.
This warranty is in lieu of all other warranties, express or implied, including,
without limitation, warranties of merchantability, fitness for a particular purpose,
durability or description of the product, its non-infringement of any relevant
patents or trademarks, and its compliance with or non-violation of any applicable
environmental, health or safety legislation. No implied warranties shall extend
beyond twenty-four (24) months from the production date.
Some states or provinces do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state or
province to province.
Product Return Procedures Products that are believed to have defects in workmanship
or materials must be returned, together with a written description of the defect, to the
tekmar representative for that territory. If the address of the representative is not
known, please request it from tekmar at the telephone number listed below.
Limited Warranty The liability of tekmar Control Systems Ltd. and tekmar
Control Systems, Inc. ("tekmar") under this warranty is limited. Please read and
understand the conditions appearing herein.
tekmar warrants each tekmar product against defects in workmanship and materials,
when the product is installed and used in compliance with tekmar's instructions. The
warranty period is for a period of twenty-four (24) months from the production date if
the product is not installed during that period, or twelve (12) months from the
documented date of installation if installed within twenty-four (24) months from the
production date, but in any event the warranty period shall not extend beyond thirty-
six (36) months from the production date. During the warranty period, tekmar will, at
its discretion, either repair at no charge, exchange or give credit for the defective
product, provided the product is returned to tekmar.
The liability of tekmar shall be limited to the cost of parts and labour provided by tekmar
to correct defects in materials and / or work-manship or to the exchange of the
defective product for a replacement product or to the granting of credit limited to the
original cost of the product, at tekmar's discretion, and such repair, exchange or credit
shall be deemed to be the sole remedy available from tekmar. This warranty does not
cover the cost of the parts or labour to remove or to transport the defective product,
or to reinstall the repaired or replacement product. Returned products that are not
defective are not covered by this warranty.
This warranty does not apply if the product has been damaged by accident, abuse,
misuse, negligence, fire, Act of God, or has been damaged by modifications,
alterations or attachments made subsequent to purchase which have not been
authorized by tekmar, or if the product was not installed in compliance with the
local codes and ordinances, or if due to defective installation of the product.
Limited Warranty and Product Return Procedure
House Control 371
Five Zones, DHW, Boiler & Mixing
Test
H1
117 2
Made in Canada by
tekmar Control Systems Ltd.
N
2 3 4
P 1
5
Var.
Pmp
Power
L
Sys
12 13 14 15
130 ° F
Off 165
Min. Boiler
Supply
100
Power
Var. Pump
Relays 120 V 50/60 Hz 1500 VA
240 V 50/60 Hz 2.4 A 1/6 hp, fuse T2.5 A 250 V
120 V (ac) 3.2 A 1/4 hp, pilot duty 240 VA
Power WWSD
Minimum
Boiler
DHW
Demand
System
Pump 1
Boiler
Zone 3
26 27 25 28 29 30
Do not apply power here
31 23 24
1-2
Com
1 3-5
Com
70 ° F
(21 ° C)
40
(4) 100
(38)
UnOccupied
6 7 8 9 10 11
LR 58223
N R T L / C
R
Occupied
Optimum Start / Stop
UnOccupied
Timer Active 24 hr. Timer
0
12 hrs.
24
6 18 • Dial the desired duration of the
UnOccupied period.
• Press start button at the time of day
you want the UnOcc. period to begin.
Timer Active light turns on.
Start
0.2
2
3.6
1
3
Heating Curve
16 17 18
Com
Sen
RTU
1
RTU
2
Com
Sen
RTU
3
RTU
4
RTU
5
Com
Sen
UnO
Sw
Zo
In
Com
Sen
Boil
Sen Sup
Sen
22 20 21
Boiler Pmp
DHW Setp
Dem Dem 2 3 4
Caution: Signal wiring must be rated at least 300V
Max. Supply / Setpnt
120
170 ° F
220
UnOccupied
Duration
0 = always Occupied
24 = always UnOccupied
Maximum
Supply
Zone 2
Zone 4 /
Open
DHW
Pump Zone 1 /
Cooling
90
70
50
30
10
% of full
output
1
2
3
4
Setpoint
Demand
System
Pump 2
Zone 5 /
Close 5
0.2
2
3.6
1
3
Boiler Heating
Curve
1
P 2
Sys
19
Out
Sen DHW
5
Opn Cls
Occ/UnOcc Permitted
1,2 4 3
Occ. only
5 Setpnt
Boiler
Mixing
1 2 3 4 5 Zo
Off
Zone 1 Heat
Zone 1 Cool
Floating
DHW during UnOcc.
Var. Speed
Optimum Start
Thermal Motor
Zone
Jul 96
31000268
The installer must ensure that this control and its wiring are isolated and/or shielded from strong sources of electromagnetic noise.
Conversely, this Class B digital apparatus complies with Part 15 of the FCC Rules and meets all requirements of the Canadian
Interference-Causing Equipment Regulations. However, if this control does cause harmful interference to radio or television reception,
which can be determined by turning the control off and on, the user is encouraged to try to correct the interference by reorienting or
relocating the receiving antenna, relocating the receiver with respect to this control, and/or connecting the control to a different circuit
from that to which the receiver is connected.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
Caution The nonmetallic enclosure does not provide grounding between conduit connections. Use grounding type bushings and jumper
wires.
Attention Un boîtier nonmétallique n’assure pas la continuité électrique des conduits. Utiliser des manchons ou des fils de accord
spécialement conçus pour la mise á la terre.
