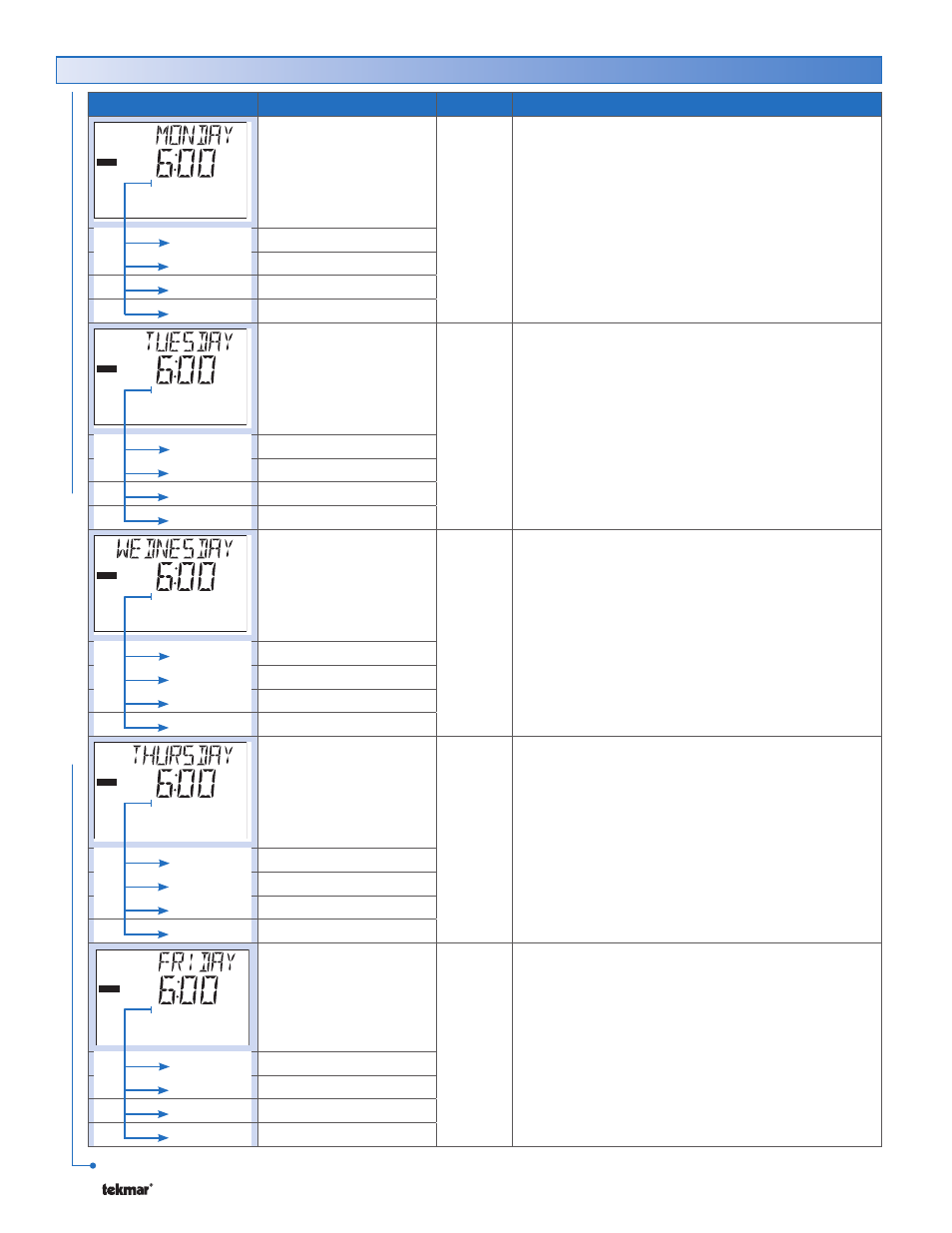

Item Field Range Access Description
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
MONDAY SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set On AND the Schedule Type is
set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
TUESDAY SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set On AND the Schedule Type is
set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
WEDNESDAY SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set On AND the Schedule Type is
set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
THURSDAY SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set On AND the Schedule Type is
set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
SCHD
AM
Wake UnOcc Sleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
FRIDAY SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set On AND the Schedule Type is
set to 7 Day.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
Schedule Menu (3 of 3)
SC
HEDULE MENU
After the last item, the control returns to the first item in the menu.
