Powers ES200/400 Emergency Tempering Valves User Manual
Page 4
TI ES200/ES400 v2
Page 4

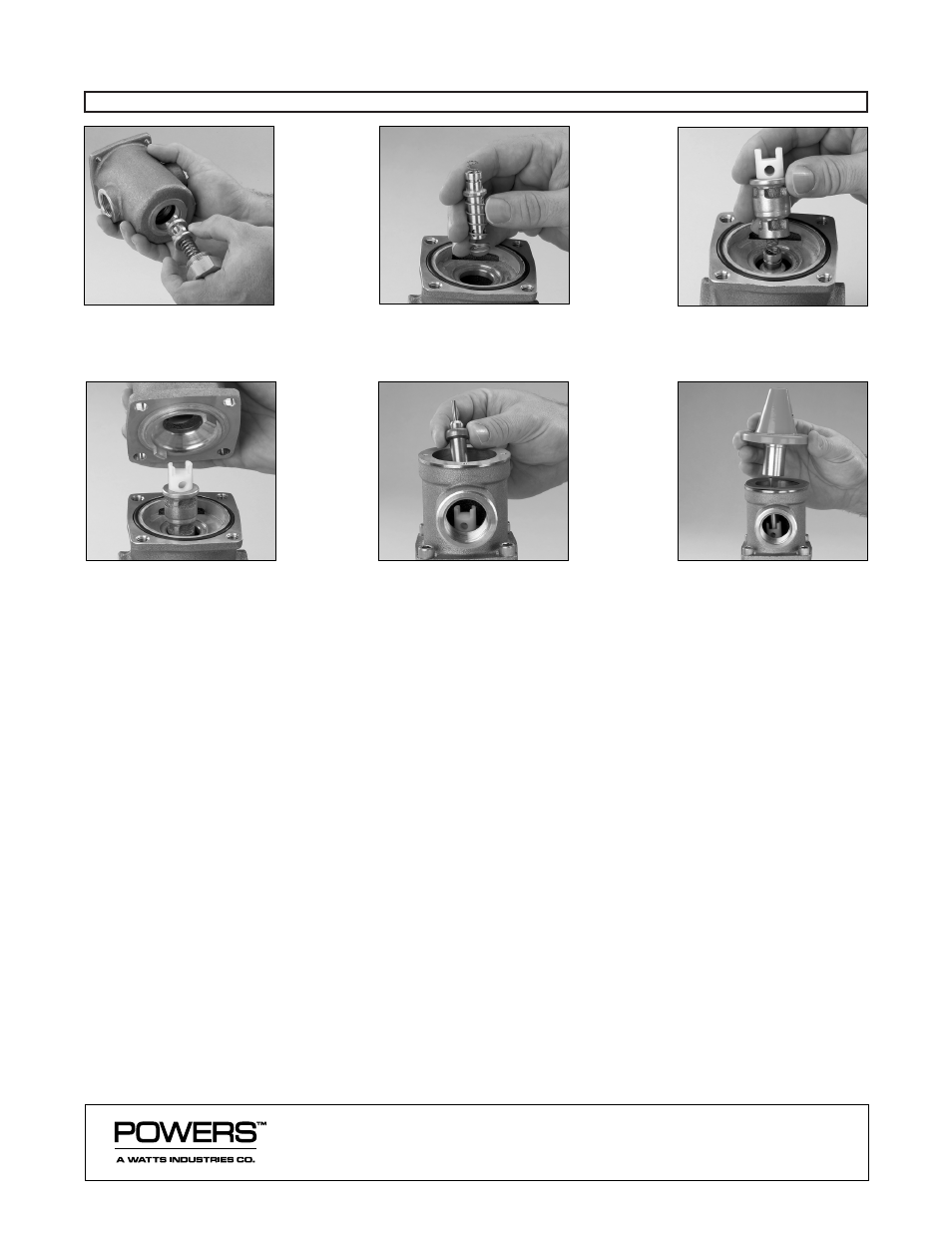

Insert the cold water poppet, spring,
and plug into the bottom of the
lower housing.
Carefully insert the bypass assem-
bly into the body.
Install the hot water poppet using
care not to disturb the springs or
bypass assembly.
REASSEMBLY
Lubricate the body “O” ring, and
place in groove on body. Tighten
housing bolts.
Place actuator into motor adaptor
Install bonnet onto valve with 4-
3/16” screws.
Form
TI ES200/ES400 v2 0335
EDP # 6508880
Printed in USA
© 2003 Powers, a Watts Industries Co.
USA Phone: 1.800.669.5430 • Fax 1.877.459.3440
Canada Phone: 1.888.208.8927 • Fax 1.888.882.1979
www.powerscontrols.com
