II800 v3 Page 2

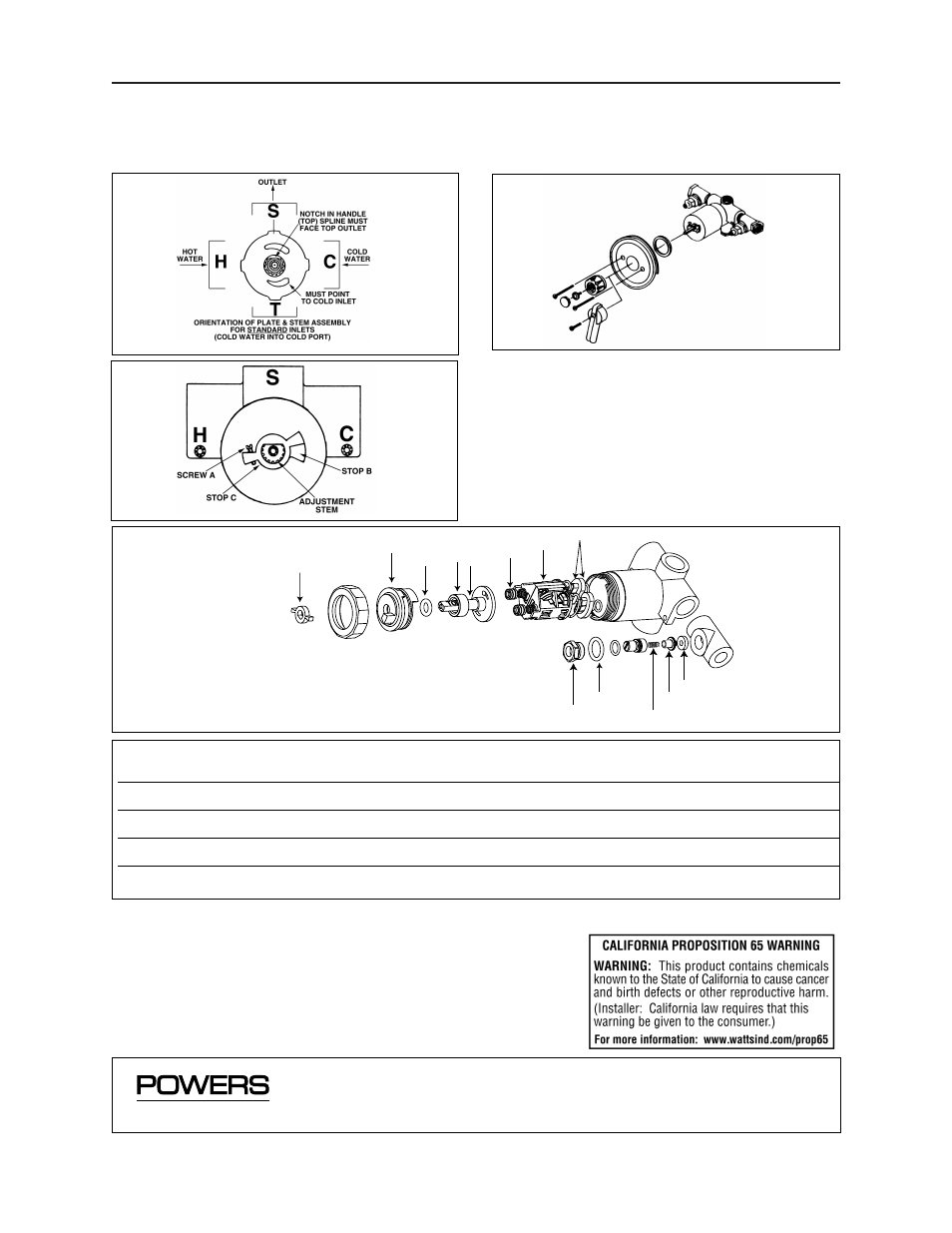

7. MAXIMUM TEMPERATURE SETTING (refer to Figure 5). This
must be set at the jobsite. Mixer will pass full HOT water.
Rotate stem to desired maximum temperature. Adjust screw
A until it touches stop B.
CAUTION: Adjustable stop C must be utilized for proper
operation.
Figure 3
Figure 5
Figure 4
13
1
14
6
7
8
15
3 2
9
10
11
12
TROUBLESHOOTING RECOMMENDED REPAIR KIT
GASKET AND DISC 1) Water leak at stem and/or bonnet 800-030
REPLACEMENT 2) Flow of water continues after mixer is turned off Includes items: 2,3,7(2),9(2),10(2),13(2),15(2)
BALANCING CARTRIDGE 1) Variable or untempered discharge temperature 900-259
Includes items: 2, 3 7(2), 8,15(2)
STEM AND PLATE 1) Flow continues after mixer is turned off 800-032A
REPLACEMENT 2) Handle splines on stem damaged, not grasping Includes items: 1,2,3,6,7(2)
INTERNAL REBUILD KIT Note: Required if both Balancing Cartridge and Stem and Plate 800-163
replacement kits needed Includes items: 2,3,6,7(2),8,15
CHECKSTOP REBUILD KIT 1) Checkstop will not shut-off or allow full flow 900-049
2) Crossover Includes items: 9(2),10(2),11(2),12(2),3(2)
REPAIR KITS: for further
information on repair and
maintenance, see TI800-1.
Form II800v3 0311 EDP# 6512222 Printed in U.S.A.
USA office: Phone: 800.669.5430 • Fax: 847.824.0627
www.powerscontrols.com
Canadian office: Phone: 888.208.8927 • Fax: 888.882.1979
© 2002 Powers, a Watts Industries Co.
