Powers 400 Series Balancing Valves - Manual (Page 4)

TI400 v2 Page 4
Hydroguard 400
Models 4–6

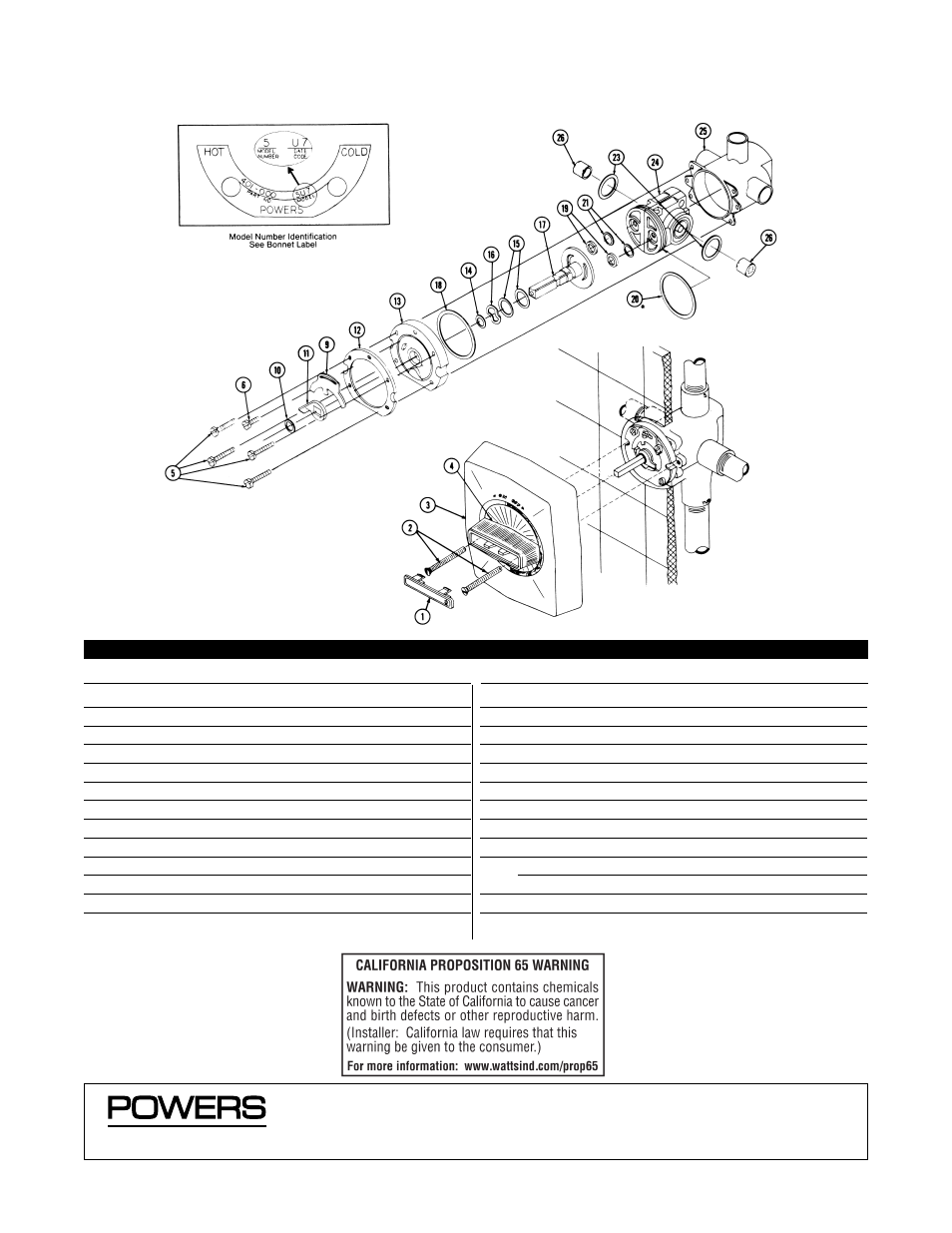

PARTS LIST
1 401-090 Plug Button —
2 080-008 Screws Brass
3 401-230A Complete Dial Assembly —
4 401-231 Handle —
5 030-885 Bonnet Screws 10-32 x 1
″
St. Steel
6 030-884 Adj. Stop Screw 10-32 x 5 ⁄
16
″ St. Steel
9 401-228 Adjustment Stop Stl. Zinc Pl.
10 401-366 (25) O-Rings 3 ⁄
8
x 1 ⁄
2
x 1 ⁄
16
″ Buna-N
11 401-165 Max. Temp. Stp Brass
12 410-377 Support Ring St. Steel
13 401-162 Bonnet Noryl
14 410-366 (25) O-rings 3 ⁄
8
x 1 ⁄
2
x 1 ⁄
16
″
Buna-N
15 410-368 (15) Flat Washer Synthane
16 410-369 (10) Wavy Washer St. Steel
17 * Throttling Stem Celcon
18 * Bonnet Gasket Rubber
19 * Shut-Off Discs Buna-N
20 * O-rings 1 3 ⁄
4
x 1 7 ⁄
8
x 1 ⁄
16
″ Buna-N
21 * Quad Rings Buna-N
23 * O-Ring 3 ⁄
4
x 15 ⁄
16
x 3 ⁄
32
″ Buna-N
24 * Balance Chamber Celcon
25 401-158 Body (4-Port) Bronze
401-160 Body (3-Port) Bronze
26 401-210 Strainer Caps Celcon
Item Product No. Description Material Item Product No. Description Material
( ) Number of items per package.
* Available in kits (page 2).
