Powers e480 Series Under-the-Counter Combination Tempering Valves for Low Flow Control - Motor Replacement - Manual

Note:
Installation should be in accordance with accepted plumbing
practices. Flush all piping thoroughly before installation.
1. Turn off hot and cold water supplies.
2. Unscrew Bonnet and remove the top assembly.
3. Pull out the motor assembly, make sure spring stay
inside the body.
4. Ensure the inside of the body is free of deposits and debris.
Clean as necessary.
5. Insert the motor replacement kit into the body.
6. Screw Bonnet into the housing. Tighten it to 100 +/- 10 in-lbs.
7. Turn on the hot and cold water supplies. Check for leaks.
8. Turn on fixture and allow water to flow for 2 minutes.
Measure water temperature at outlet. If water is not at the
desired temperature, adjust as follows:
1. Loosen locknut.
2. Turn on fixture and run water for at least two (2) minutes
to allow supply temperature to stabilize.
3. Turn temperature adjustment stem counter-clockwise for
hotter or clockwise for colder outlet temperature.
4. Tighten locknut to prevent accidental or unauthorized
temperature adjustment.
5. Re-check outlet temperature.
INSTALLATION INSTRUCTIONS
HydroGuard ® T/P Series e480
Motor Replacement, Kit # 480-270
Form II e480R v1

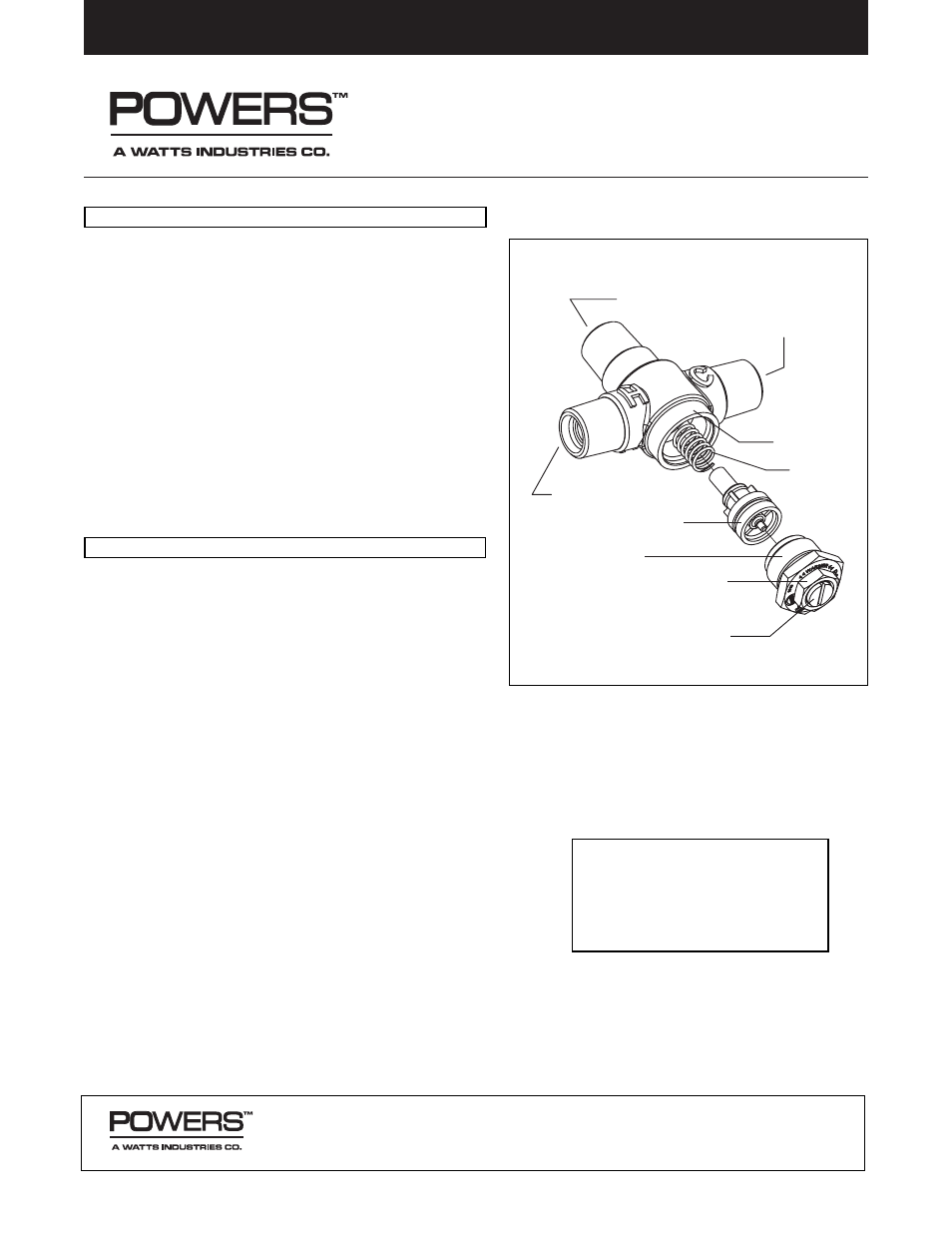

HOT WATER INLET
COLD WATER INLET
OUTLET
HOUSING
LOCK NUT
TEMPERATURE
ADJUSTMENT
STEM
BONNET
SPRING
MOTOR ASSEMBLY
Figure 1
CALIFORNIA PROPOSITION 65 WARNING
WARNING: This product contains chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
(California law requires this warning to be given to
customers in the State of California.)
For more information: www.wattsind.com/prop65
© 2003 Powers, a Watts Industries Co.
USA Phone: 1.800.669.5430 • Fax 1.847.824.0627
Canada Phone: 1.888.208.8927 • Fax 1.888.882.1979
www.powerscontrols.com
Form II e480R v1 0340 EDP# 6512259 Printed in U.S.A.
INSTALLATION INSTRUCTIONS
TO ADJUST TEMPERATURE
