Item Number

Item Description

Options

Quantity Required

1

Ball Valve

Std

4

2

Temperature / Pressure Gauge

Std

4

3

Triple Duty Check Stop

Std

2

4

Thermostatic Valve

See Order Code

1

5

Welded Mounting Struts

Std

1

6

GFCI Outlet

Std

1

7

Pipe Straps

Std

Typical

8

Aquastat

Optional

1

9

Vacuum Breaker

Std

2

10

Ball Valve w/Drain

Std

2

11

Isolation Flange

Std

2

12

Circulator

Application Specific

1

13

Check Valve

Std

2

14

Circuit Setter

Optional

1

15

Automatic Balance Valve

Optional

1

3

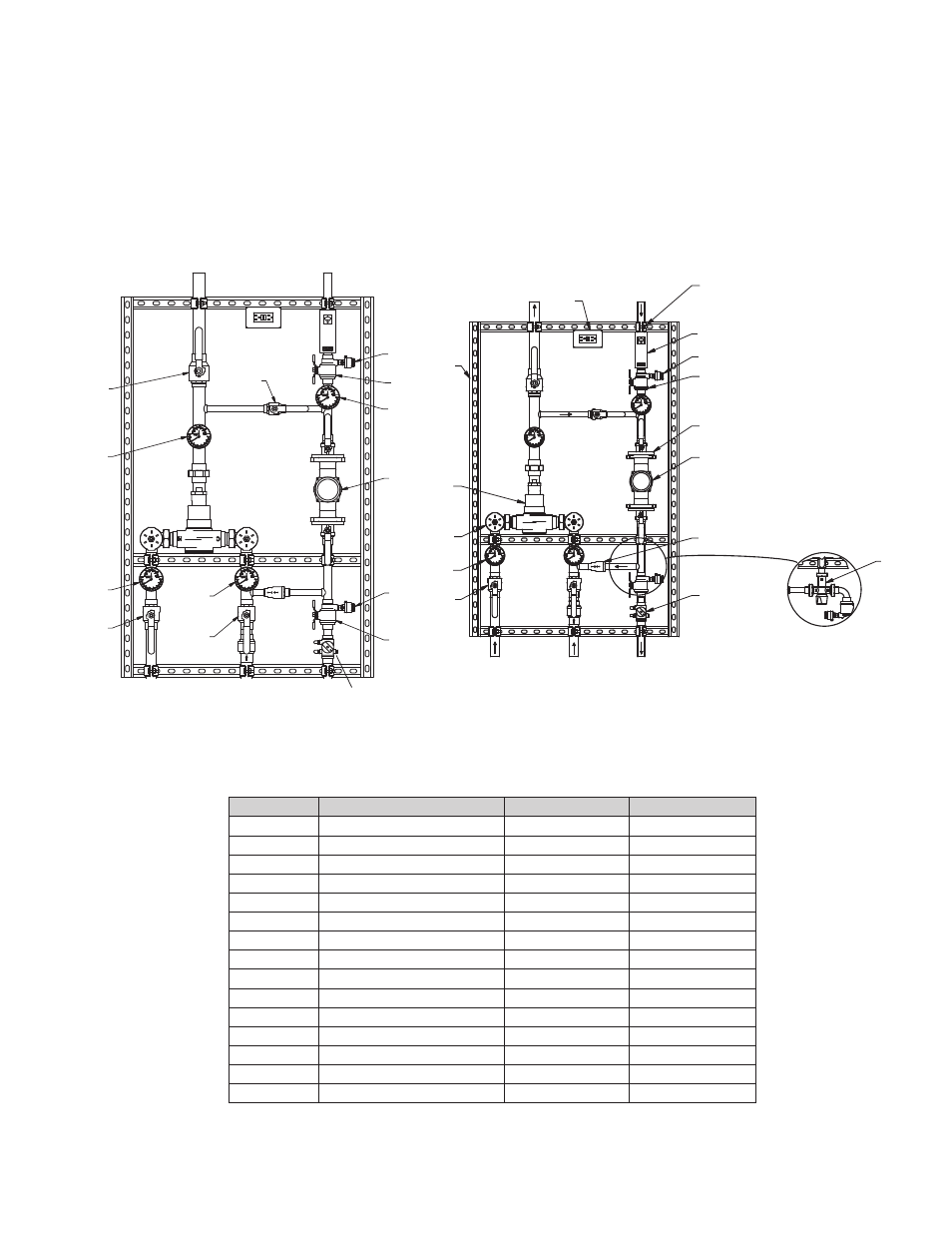

Legends

n

7

1

2

3

4

5

6

7

8
9
10

11

12

13

14

For Automatic Balance
Valve Option

15

8

9

10

11

12

13

14

15

1

2

3

4

5

6

For Automatic Balance
Valve Option

B1

T/P 2

B2

T/P 3

T/P 1

B4

D1

T/P 4

P1

D2

B3

B5

B6

T/P1

B4

B5

D1

B6

T/P4

P1

D2

B2

B1

B3

C1

T/P2

T/P3
