Powers PowerStation XP Single and Multi-Valve Series - Double Valve 0.5 - 271 gpm - Manual (Page 3)

Item Number Item Description Options Quantity Required
1 Ball Valve Std 5
2 Temperature / Pressure Gauge Std 4
3 Triple Duty Checkstop Std 4
4 Pressure Gauges Std 2
5 Thermostatic Valve (HI) See Order Code 1
6 Pressure Reducing Valve Std 1
7 Thermostatic Valve (LO) See Order Code 1
8 Welded Mounting Struts Std Typical
9 GFCI Outlet Std 1
10 Pipe Straps Std Typical
11 Vacuum Breaker Std 2
12 Ball Valve w/Drain Std 2
13 Aquastat Optional 1
14 Isolation Flange Std 2
15 Circulator Application Specific 1
16 Check Valve Std 2
17 Circuit Setter Optional 1
18 Automatic Balance Valve Optional 1

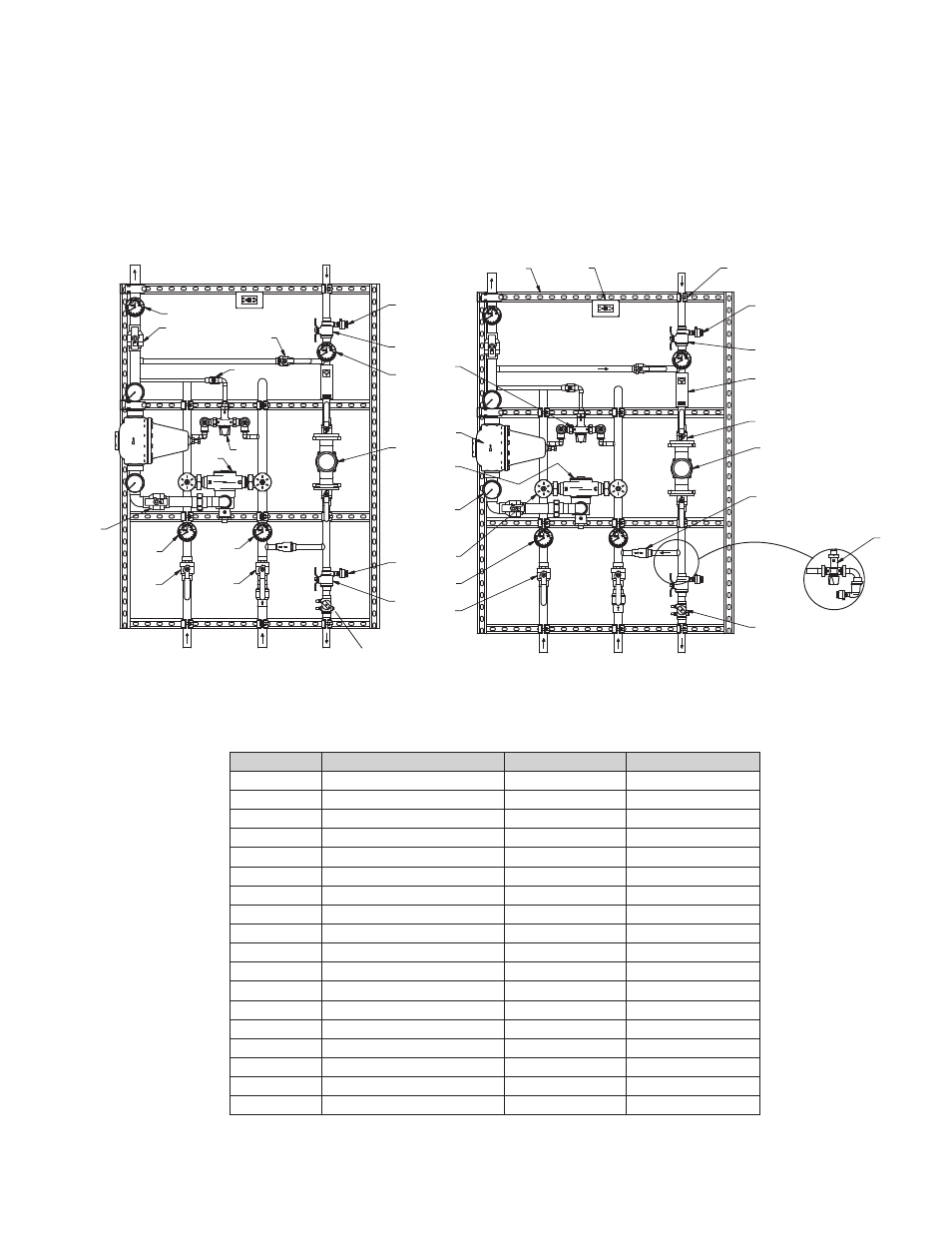

3
